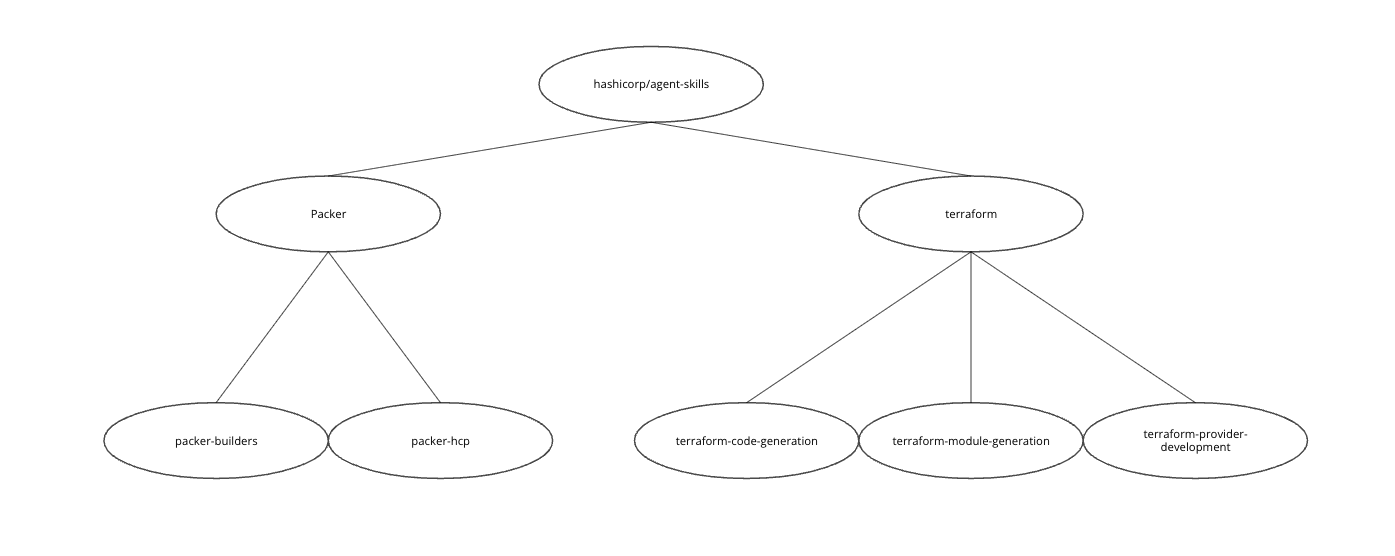

Claude でhashicorp/agent-skillsを使って Terraform のモノリシック構成をモジュール化してみた

# main.tf - モノリシック構成（リファクタリング前）

terraform {
  required_version = ">= 1.1.0"
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}

provider "aws" {
  region = var.region
}

# --- VPC ---
resource "aws_vpc" "main" {
  cidr_block           = var.vpc_cidr
  enable_dns_support   = true
  enable_dns_hostnames = true

  tags = {
    Name        = "${var.project}-vpc"
    Environment = var.environment
  }
}

# --- Subnet ---
resource "aws_subnet" "public" {
  vpc_id                  = aws_vpc.main.id
  cidr_block              = var.public_subnet_cidr
  availability_zone       = "${var.region}a"
  map_public_ip_on_launch = true

  tags = {
    Name        = "${var.project}-public-subnet"
    Environment = var.environment
  }
}

# --- Security Group ---
resource "aws_security_group" "web" {
  name_prefix = "${var.project}-web-"
  vpc_id      = aws_vpc.main.id

  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  tags = {
    Name        = "${var.project}-web-sg"
    Environment = var.environment
  }
}

# --- EC2 Instance ---
resource "aws_instance" "web" {
  ami                    = var.ami_id
  instance_type          = var.instance_type
  subnet_id              = aws_subnet.public.id
  vpc_security_group_ids = [aws_security_group.web.id]

  tags = {
    Name        = "${var.project}-web"
    Environment = var.environment
  }
}

# variables.tf

variable "region" {
  description = "AWS region"
  type        = string
  default     = "ap-northeast-1"
}

variable "project" {
  description = "Project name"
  type        = string
  default     = "demo"
}

variable "environment" {
  description = "Environment name"
  type        = string
  default     = "dev"
}

variable "vpc_cidr" {
  description = "VPC CIDR block"
  type        = string
  default     = "10.0.0.0/16"
}

variable "public_subnet_cidr" {
  description = "Public subnet CIDR block"
  type        = string
  default     = "10.0.1.0/24"
}

variable "ami_id" {
  description = "AMI ID for EC2 instance"
  type        = string
  default     = "ami-088103e734f7e0529" # /aws/service/ami-amazon-linux-latest/al2023-ami-kernel-6.1-x86_64
}

variable "instance_type" {
  description = "EC2 instance type"
  type        = string
  default     = "t3.micro"
}

❯ refactor-module

⏺ Skill(terraform-module-generation:refactor-module)
  ⎿  Successfully loaded skill

⏺ まず、既存のTerraform構成を分析します。

⏺ Explore(Explore Terraform codebase structure) Haiku 4.5
  ⎿  Done (6 tool uses · 29.8k tokens · 33s)
  (ctrl+o to expand)

⏺ 分析が完了しました。現在の構成を整理します。

  現状分析

  項目: ファイル構成
  内容: main.tf 1ファイルにすべて集約（モノリシック）
  ────────────────────────────────────────
  項目: リソース
  内容: aws_vpc, aws_subnet, aws_security_group, aws_instance (4リソース)
  ────────────────────────────────────────
  項目: 変数
  内容: 7個（region, project, environment, vpc_cidr, public_subnet_cidr, ami_id, instance_type）
  ────────────────────────────────────────
  項目: Output
  内容: なし
  ────────────────────────────────────────
  項目: State
  内容: 空（管理リソースなし） → State移行不要
  ────────────────────────────────────────
  項目: Provider
  内容: AWS v5.100.0 / Terraform >= 1.1.0

  依存関係

  aws_vpc.main
    ├── aws_subnet.public
    ├── aws_security_group.web
    │       └── aws_instance.web ← aws_subnet.public も参照

  リファクタリングの方針を確認させてください。

⏺ User answered Claude's questions:
  ⎿  · モジュール分割の粒度をどうしますか？ → 2モジュール構成 (Recommended)
     · 抽象化レベルをどうしますか？ → intermediate (Recommended)

⏺ 了解しました。2モジュール構成 + intermediate 抽象化レベルで進めます。

  リファクタリング計画

  【Before】                     【After】
  main.tf (全部入り)      →     modules/
                                  network/    # VPC + Subnet + SG
                                    main.tf / variables.tf / outputs.tf
                                  compute/    # EC2
                                    main.tf / variables.tf / outputs.tf
                                main.tf       # Root module呼び出し
                                variables.tf  # Root変数
                                outputs.tf    # Root出力
                                versions.tf   # Provider制約

  並列で3エージェントに実装を委託します。

⏺ 3 Task agents finished (ctrl+o to expand)
   ├─ Implement network module · 4 tool uses · 25.9k tokens
   │  ⎿  Done
   ├─ Implement compute module · 7 tool uses · 25.3k tokens
   │  ⎿  Done
   └─ Implement root configuration · 5 tool uses · 26.8k tokens
      ⎿  Done
  ⎿  Found 5 new diagnostic issues in 1 file (ctrl+o to expand)

⏺ 全ファイルの生成が完了しました。診断エラーはモジュール初期化前のため発生しています。生成されたコー
  ドを検証します。

⏺ Explore(Validate all generated files) Haiku 4.5
  ⎿  Done (10 tool uses · 30.7k tokens · 20s)
  (ctrl+o to expand)

⏺ コードレビューは全項目 PASS です。terraform init と terraform validate で実行検証します。

⏺ Bash(terraform init -upgrade 2>&1)
  ⎿  Initializing the backend...
     Upgrading modules...
     - compute in modules/compute
     … +14 lines (ctrl+o to expand)

⏺ Bash(terraform validate 2>&1)
  ⎿  Success! The configuration is valid.

⏺ Bash(terraform fmt -check -recursive -diff 2>&1)
  ⎿  (No output)

⏺ すべて通りました。リファクタリング完了です。

  結果サマリ

  ┌──────────────────────┬────────────────────────────┐
  │       検証項目       │            結果            │
  ├──────────────────────┼────────────────────────────┤
  │ terraform init       │ OK                         │
  ├──────────────────────┼────────────────────────────┤
  │ terraform validate   │ OK                         │
  ├──────────────────────┼────────────────────────────┤
  │ terraform fmt -check │ OK（フォーマット差分なし） │
  └──────────────────────┴────────────────────────────┘

  生成ファイル構成

  refactor-module/
  ├── versions.tf          # Provider/Terraform版制約
  ├── variables.tf         # Root変数（7個、元のデフォルト値を保持）
  ├── main.tf              # Provider + module "network" / "compute" 呼び出し
  ├── outputs.tf           # 5つのoutput（vpc_id, subnet_id, sg_id, instance_id, public_ip）
  └── modules/
      ├── network/         # VPC + Subnet + Security Group
      │   ├── main.tf      # 3リソース（dynamic ingress block付き）
      │   ├── variables.tf # 7変数（CIDR validation付き）
      │   └── outputs.tf   # 4 output
      └── compute/         # EC2 Instance
          ├── main.tf      # 1リソース
          ├── variables.tf # 6変数
          └── outputs.tf   # 3 output

  主な改善点

  - 分離: ネットワーク層とコンピュート層を独立モジュール化
  - 再利用性: 各モジュールを別プロジェクトでも使い回し可能
  - 柔軟性: ingress_rules を dynamic block で可変化、tags は merge パターン
  - 安全性: CIDR 変数に validation ブロックを追加

provider "aws" {
  region = var.region
}

module "network" {
  source = "./modules/network"

  name              = "${var.project}-${var.environment}"
  vpc_cidr          = var.vpc_cidr
  subnet_cidr       = var.public_subnet_cidr
  availability_zone = "${var.region}a"

  tags = {
    Project     = var.project
    Environment = var.environment
  }
}

module "compute" {
  source = "./modules/compute"

  name                   = "${var.project}-${var.environment}-web"
  ami_id                 = var.ami_id
  instance_type          = var.instance_type
  subnet_id              = module.network.subnet_id
  vpc_security_group_ids = [module.network.security_group_id]

  tags = {
    Project     = var.project
    Environment = var.environment
  }
}

resource "aws_vpc" "this" {
  cidr_block           = var.vpc_cidr
  enable_dns_support   = true
  enable_dns_hostnames = true

  tags = merge(var.tags, {
    Name = "${var.name}-vpc"
  })
}

resource "aws_subnet" "public" {
  vpc_id                  = aws_vpc.this.id
  cidr_block              = var.subnet_cidr
  availability_zone       = var.availability_zone
  map_public_ip_on_launch = var.map_public_ip_on_launch

  tags = merge(var.tags, {
    Name = "${var.name}-public-subnet"
  })
}

resource "aws_security_group" "this" {
  name_prefix = "${var.name}-web-"
  vpc_id      = aws_vpc.this.id

  dynamic "ingress" {
    for_each = var.ingress_rules
    content {
      from_port   = ingress.value.from_port
      to_port     = ingress.value.to_port
      protocol    = ingress.value.protocol
      cidr_blocks = ingress.value.cidr_blocks
    }
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  tags = merge(var.tags, {
    Name = "${var.name}-web-sg"
  })
}

variable "name" {
  description = "Name prefix for all resources created by this module."
  type        = string
}

variable "vpc_cidr" {
  description = "CIDR block for the VPC."
  type        = string

  validation {
    condition     = can(cidrhost(var.vpc_cidr, 0))
    error_message = "vpc_cidr must be a valid IPv4 CIDR block (e.g. \"10.0.0.0/16\")."
  }
}

variable "subnet_cidr" {
  description = "CIDR block for the public subnet."
  type        = string

  validation {
    condition     = can(cidrhost(var.subnet_cidr, 0))
    error_message = "subnet_cidr must be a valid IPv4 CIDR block (e.g. \"10.0.1.0/24\")."
  }
}

variable "availability_zone" {
  description = "Availability zone in which the public subnet will be created."
  type        = string
}

variable "map_public_ip_on_launch" {
  description = "Whether instances launched into the public subnet receive a public IP address automatically."
  type        = bool
  default     = true
}

variable "ingress_rules" {
  description = "List of ingress rules to apply to the web security group."
  type = list(object({
    from_port   = number
    to_port     = number
    protocol    = string
    cidr_blocks = list(string)
  }))
  default = [
    {
      from_port   = 80
      to_port     = 80
      protocol    = "tcp"
      cidr_blocks = ["0.0.0.0/0"]
    },
    {
      from_port   = 443
      to_port     = 443
      protocol    = "tcp"
      cidr_blocks = ["0.0.0.0/0"]
    },
  ]
}

variable "tags" {
  description = "Map of tags to apply to all resources. Resource-specific Name tags are merged on top."
  type        = map(string)
  default     = {}
}

output "vpc_id" {
  description = "The ID of the VPC."
  value       = aws_vpc.this.id
}

output "vpc_cidr_block" {
  description = "The primary CIDR block of the VPC."
  value       = aws_vpc.this.cidr_block
}

output "subnet_id" {
  description = "The ID of the public subnet."
  value       = aws_subnet.public.id
}

output "security_group_id" {
  description = "The ID of the web security group."
  value       = aws_security_group.this.id
}

# modules/compute/main.tf
resource "aws_instance" "this" {
  ami                    = var.ami_id
  instance_type          = var.instance_type
  subnet_id              = var.subnet_id
  vpc_security_group_ids = var.vpc_security_group_ids

  tags = merge(var.tags, {
    Name = var.name
  })
}

variable "name" {
  description = "Name prefix for the instance"
  type        = string
}

variable "ami_id" {
  description = "AMI ID for the EC2 instance"
  type        = string
}

variable "instance_type" {
  description = "EC2 instance type"
  type        = string
  default     = "t3.micro"
}

variable "subnet_id" {
  description = "Subnet ID to launch the instance in"
  type        = string
}

variable "vpc_security_group_ids" {
  description = "List of security group IDs"
  type        = list(string)
}

variable "tags" {
  description = "Tags to apply to the instance"
  type        = map(string)
  default     = {}
}

output "instance_id" {
  description = "The ID of the EC2 instance"
  value       = aws_instance.this.id
}

output "instance_public_ip" {
  description = "The public IP address of the EC2 instance"
  value       = aws_instance.this.public_ip != null ? aws_instance.this.public_ip : ""
}

output "instance_private_ip" {
  description = "The private IP address of the EC2 instance"
  value       = aws_instance.this.private_ip
}

# moved.tf - 既存ステートの移行

moved {
  from = aws_vpc.main
  to   = module.networking.aws_vpc.main
}

moved {
  from = aws_subnet.public
  to   = module.networking.aws_subnet.public
}

moved {
  from = aws_security_group.web
  to   = module.networking.aws_security_group.web
}

moved {
  from = aws_instance.web
  to   = module.compute.aws_instance.web
}
