先日 EKS Capabilities が登場しました。
EKS Capabilities は EKS 上での開発を加速するためのフルマネージドな機能セットで、現在下記 3 つのツールを利用可能です。
- Argo CD
- AWS Controllers for Kubernetes(ACK)
- Kube Resource Orchestrator(kro)
今回は ACK を利用してみます。
AWS Controllers for Kubernetes(ACK) とは？
Kubernetes API 経由で AWS リソースを構築するためのツールで、下記メリットがあります。
- アプリケーションリソースと関連するクラウドリソースを統一されたツールで扱うことができる
- EKS 基盤の管理では Terraform 管理したとしても、少なくともアプリケーションチームはデプロイツールを統一できる

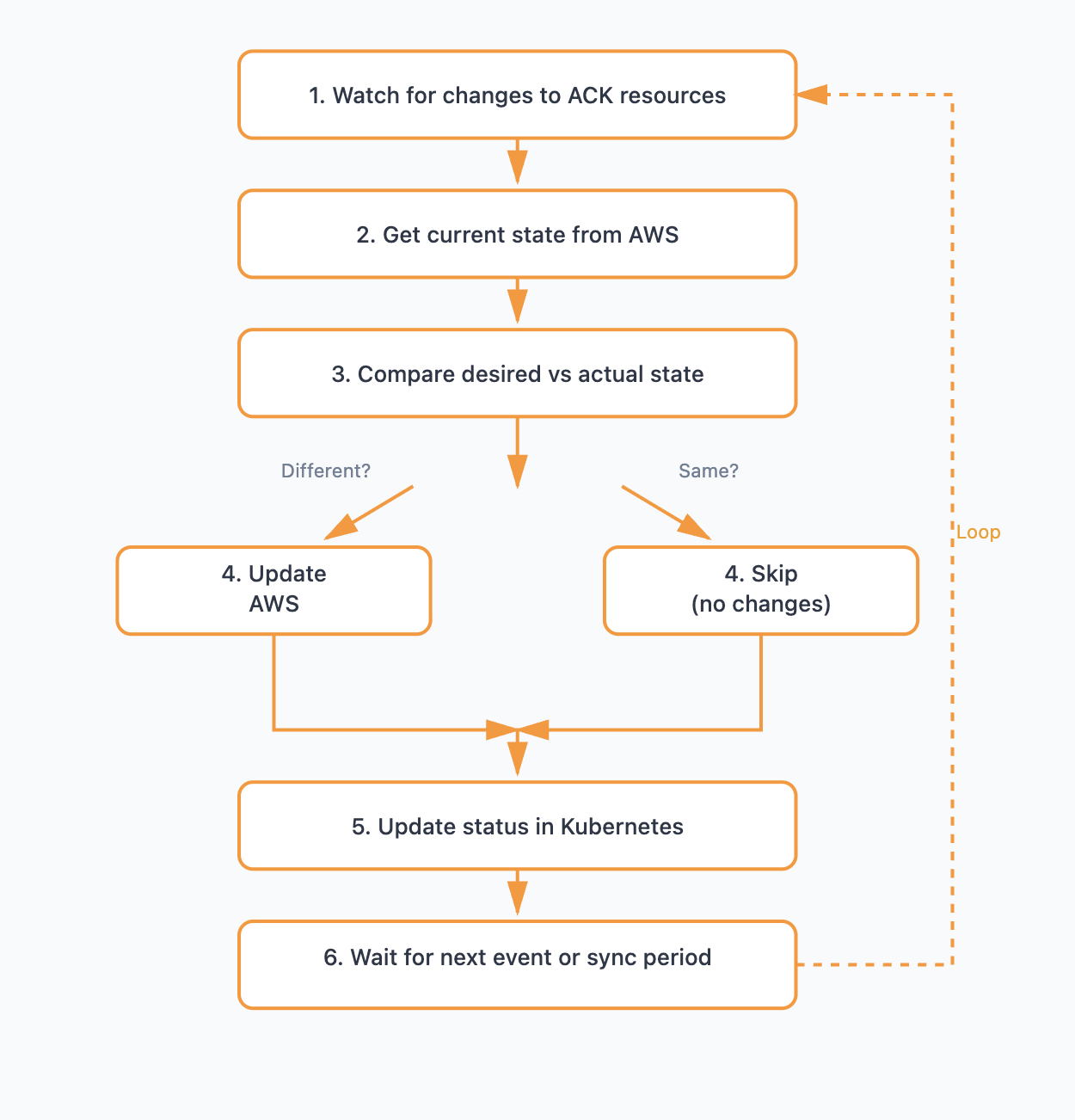

- 望ましい状態と実際の状態を継続的に調整して、ドリフトを修正できる (Reconciliation loop)
- Argo CD と組み合わせることで、インフラ管理にも Kubernetes リソース同様の GitOps を導入可能
- ただし、CPU 負荷を意識してドリフト検出は 10 時間ごと
扱える AWS サービスは下記にまとまっており、2025 年 12 月時点で 50 以上のサービスを扱うことが可能です。
EKS Capabilities を利用している際、アップストリーム版の ACK で GA となっているサービスがサポートされます。
All AWS services listed as Generally Available upstream are supported by the EKS Capability for ACK.
https://docs.aws.amazon.com/eks/latest/userguide/ack.html#supported_shared_aws_services
環境セットアップ
v1.34 の Auto Mode を有効化した EKS クラスターを事前に用意します。
今回は Terraform を利用して構築しました。
module "vpc" {
source = "terraform-aws-modules/vpc/aws"
version = "~> 6.0.1"
name = "eks-vpc"
cidr = "10.0.0.0/16"
azs = ["ap-northeast-1a", "ap-northeast-1c", "ap-northeast-1d"]
public_subnets = ["10.0.0.0/24", "10.0.1.0/24", "10.0.2.0/24"]
private_subnets = ["10.0.100.0/24", "10.0.101.0/24", "10.0.102.0/24"]
enable_nat_gateway = true
single_nat_gateway = true
public_subnet_tags = {
"kubernetes.io/role/elb" = 1
}
private_subnet_tags = {
"kubernetes.io/role/internal-elb" = 1
}
}
module "eks" {
source = "terraform-aws-modules/eks/aws"
version = "~> 21.0.4"
name = "test-cluster"
kubernetes_version = "1.34"
endpoint_public_access = true
endpoint_private_access = true
enable_irsa = false
authentication_mode = "API"
vpc_id = module.vpc.vpc_id
subnet_ids = module.vpc.private_subnets
enable_cluster_creator_admin_permissions = true
compute_config = {
enabled = true
node_pools = ["general-purpose"]
}
}
下記ドキュメントに従って AWS CLI で設定します。
EKS Capabilities では Capability ロールと呼ばれる IAM ロールが必要になります。
各コンポーネントが AWS 管理領域にインストールされるので、Pod Identity など既存の仕組みとは別で設定する必要があるのでしょう。
まず、信頼ポリシーを定義したファイルを作成します。
EKS Capabilities では capabilities.eks.amazonaws.com に対して権限を許可する必要があります。
cat > ack-trust-policy.json << 'EOF'
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "capabilities.eks.amazonaws.com"
},
"Action": [
"sts:AssumeRole",
"sts:TagSession"
]
}
]
}
EOF
IAM ロールを作成します。
aws iam create-role \
--role-name ACKCapabilityRole \
--assume-role-policy-document file://ack-trust-policy.json
今回は AdministratorAccess を付与します。
aws iam attach-role-policy \
--role-name ACKCapabilityRole \
--policy-arn arn:aws:iam::aws:policy/AdministratorAccess
AWS インフラをデプロイする都合上強い権限が必要になりますが、可能であればカスタムポリシーを定義して権限を制限することが推奨されています。
ACK: When possible, limit IAM permissions to specific AWS services and resources your teams need, based on use case and requirements
https://docs.aws.amazon.com/eks/latest/userguide/capabilities-security.html#_security_best_practices
aws eks create-capability \
--region $REGION \
--cluster-name $CLUSTER_NAME \
--capability-name ack \
--type ACK \
--role-arn arn:aws:iam::$(aws sts get-caller-identity --query Account --output text):role/ACKCapabilityRole \
--delete-propagation-policy RETAIN
しばらくすると Capability のステータスが ACTIVE になります。
% aws eks describe-capability \
--region $REGION \
--cluster-name $CLUSTER_NAME \
--capability-name ack \
--query 'capability.status' \
--output text
ACTIVE
この状態で xxx.services.k8s.aws という API リソース郡を利用できるようになっています。
% kubectl api-resources | grep services.k8s.aws
certificates acm.services.k8s.aws/v1alpha1 true Certificate
apiintegrationresponses apigateway.services.k8s.aws/v1alpha1 true APIIntegrationResponse
apikeys apigateway.services.k8s.aws/v1alpha1 true APIKey
apimethodresponses apigateway.services.k8s.aws/v1alpha1 true APIMethodResponse
authorizers apigateway.services.k8s.aws/v1alpha1 true Authorizer
deployments apigateway.services.k8s.aws/v1alpha1 true Deployment
integrations apigateway.services.k8s.aws/v1alpha1 true Integration
methods apigateway.services.k8s.aws/v1alpha1 true Method
resources apigateway.services.k8s.aws/v1alpha1 true Resource
restapis apigateway.services.k8s.aws/v1alpha1 true RestAPI
stages apigateway.services.k8s.aws/v1alpha1 true Stage
vpclinks apigateway.services.k8s.aws/v1alpha1 true VPCLink
apimappings apigatewayv2.services.k8s.aws/v1alpha1 true APIMapping
apis apigatewayv2.services.k8s.aws/v1alpha1 true API
authorizers apigatewayv2.services.k8s.aws/v1alpha1 true Authorizer
deployments apigatewayv2.services.k8s.aws/v1alpha1 true Deployment
domainnames apigatewayv2.services.k8s.aws/v1alpha1 true DomainName
integrations apigatewayv2.services.k8s.aws/v1alpha1 true Integration
routes apigatewayv2.services.k8s.aws/v1alpha1 true Route
stages apigatewayv2.services.k8s.aws/v1alpha1 true Stage
vpclinks apigatewayv2.services.k8s.aws/v1alpha1 true VPCLink
scalabletargets applicationautoscaling.services.k8s.aws/v1alpha1 true ScalableTarget
scalingpolicies applicationautoscaling.services.k8s.aws/v1alpha1 true ScalingPolicy
preparedstatements athena.services.k8s.aws/v1alpha1 true PreparedStatement
workgroups athena.services.k8s.aws/v1alpha1 true WorkGroup
inferenceprofiles bedrock.services.k8s.aws/v1alpha1 true InferenceProfile
agents bedrockagent.services.k8s.aws/v1alpha1 true Agent
agentruntimeendpoints bedrockagentcorecontrol.services.k8s.aws/v1alpha1 true AgentRuntimeEndpoint
agentruntimes bedrockagentcorecontrol.services.k8s.aws/v1alpha1 true AgentRuntime
cachepolicies cloudfront.services.k8s.aws/v1alpha1 true CachePolicy
distributions cloudfront.services.k8s.aws/v1alpha1 true Distribution
functions cloudfront.services.k8s.aws/v1alpha1 true Function
originaccesscontrols cloudfront.services.k8s.aws/v1alpha1 true OriginAccessControl
originrequestpolicies cloudfront.services.k8s.aws/v1alpha1 true OriginRequestPolicy
responseheaderspolicies cloudfront.services.k8s.aws/v1alpha1 true ResponseHeadersPolicy
vpcorigins cloudfront.services.k8s.aws/v1alpha1 true VPCOrigin
eventdatastores cloudtrail.services.k8s.aws/v1alpha1 true EventDataStore
trails cloudtrail.services.k8s.aws/v1alpha1 true Trail
dashboards cloudwatch.services.k8s.aws/v1alpha1 true Dashboard
metricalarms cloudwatch.services.k8s.aws/v1alpha1 true MetricAlarm
metricstreams cloudwatch.services.k8s.aws/v1alpha1 true MetricStream
loggroups cloudwatchlogs.services.k8s.aws/v1alpha1 true LogGroup
domains codeartifact.services.k8s.aws/v1alpha1 true Domain
packagegroups codeartifact.services.k8s.aws/v1alpha1 true PackageGroup
userpools cognitoidentityprovider.services.k8s.aws/v1alpha1 true UserPool
dbclusters documentdb.services.k8s.aws/v1alpha1 true DBCluster
dbinstances documentdb.services.k8s.aws/v1alpha1 true DBInstance
dbsubnetgroups documentdb.services.k8s.aws/v1alpha1 true DBSubnetGroup
backups dynamodb.services.k8s.aws/v1alpha1 true Backup
globaltables dynamodb.services.k8s.aws/v1alpha1 true GlobalTable
tables dynamodb.services.k8s.aws/v1alpha1 true Table
capacityreservations ec2.services.k8s.aws/v1alpha1 true CapacityReservation
dhcpoptions ec2.services.k8s.aws/v1alpha1 true DHCPOptions
elasticipaddresses ec2.services.k8s.aws/v1alpha1 true ElasticIPAddress
flowlogs ec2.services.k8s.aws/v1alpha1 true FlowLog
instances ec2.services.k8s.aws/v1alpha1 true Instance
internetgateways ec2.services.k8s.aws/v1alpha1 true InternetGateway
launchtemplates ec2.services.k8s.aws/v1alpha1 true LaunchTemplate
natgateways ec2.services.k8s.aws/v1alpha1 true NATGateway
networkacls ec2.services.k8s.aws/v1alpha1 true NetworkACL
routetables ec2.services.k8s.aws/v1alpha1 true RouteTable
securitygroups ec2.services.k8s.aws/v1alpha1 true SecurityGroup
subnets ec2.services.k8s.aws/v1alpha1 true Subnet
transitgateways ec2.services.k8s.aws/v1alpha1 true TransitGateway
transitgatewayvpcattachments ec2.services.k8s.aws/v1alpha1 true TransitGatewayVPCAttachment
vpcendpoints ec2.services.k8s.aws/v1alpha1 true VPCEndpoint
vpcendpointserviceconfigurations ec2.services.k8s.aws/v1alpha1 true VPCEndpointServiceConfiguration
vpcpeeringconnections ec2.services.k8s.aws/v1alpha1 true VPCPeeringConnection
vpcs ec2.services.k8s.aws/v1alpha1 true VPC
pullthroughcacherules ecr.services.k8s.aws/v1alpha1 true PullThroughCacheRule
repositories ecr.services.k8s.aws/v1alpha1 true Repository
repositories ecrpublic.services.k8s.aws/v1alpha1 true Repository
clusters ecs.services.k8s.aws/v1alpha1 true Cluster
services ecs.services.k8s.aws/v1alpha1 true Service
taskdefinitions ecs.services.k8s.aws/v1alpha1 true TaskDefinition
accesspoints efs.services.k8s.aws/v1alpha1 true AccessPoint
filesystems efs.services.k8s.aws/v1alpha1 true FileSystem
mounttargets efs.services.k8s.aws/v1alpha1 true MountTarget
accessentries eks.services.k8s.aws/v1alpha1 true AccessEntry
addons eks.services.k8s.aws/v1alpha1 true Addon
clusters eks.services.k8s.aws/v1alpha1 true Cluster
fargateprofiles eks.services.k8s.aws/v1alpha1 true FargateProfile
identityproviderconfigs eks.services.k8s.aws/v1alpha1 true IdentityProviderConfig
nodegroups eks.services.k8s.aws/v1alpha1 true Nodegroup
podidentityassociations eks.services.k8s.aws/v1alpha1 true PodIdentityAssociation
cacheclusters elasticache.services.k8s.aws/v1alpha1 true CacheCluster
cacheparametergroups elasticache.services.k8s.aws/v1alpha1 true CacheParameterGroup
cachesubnetgroups elasticache.services.k8s.aws/v1alpha1 true CacheSubnetGroup
replicationgroups elasticache.services.k8s.aws/v1alpha1 true ReplicationGroup
serverlesscaches elasticache.services.k8s.aws/v1alpha1 true ServerlessCache
serverlesscachesnapshots elasticache.services.k8s.aws/v1alpha1 true ServerlessCacheSnapshot
snapshots elasticache.services.k8s.aws/v1alpha1 true Snapshot
usergroups elasticache.services.k8s.aws/v1alpha1 true UserGroup
users elasticache.services.k8s.aws/v1alpha1 true User
listeners elbv2.services.k8s.aws/v1alpha1 true Listener
loadbalancers elbv2.services.k8s.aws/v1alpha1 true LoadBalancer
rules elbv2.services.k8s.aws/v1alpha1 true Rule
targetgroups elbv2.services.k8s.aws/v1alpha1 true TargetGroup
jobruns emrcontainers.services.k8s.aws/v1alpha1 true JobRun
virtualclusters emrcontainers.services.k8s.aws/v1alpha1 true VirtualCluster
archives eventbridge.services.k8s.aws/v1alpha1 true Archive
endpoints eventbridge.services.k8s.aws/v1alpha1 true Endpoint
eventbuses eb,bus eventbridge.services.k8s.aws/v1alpha1 true EventBus
rules er eventbridge.services.k8s.aws/v1alpha1 true Rule
groups iam.services.k8s.aws/v1alpha1 true Group
instanceprofiles iam.services.k8s.aws/v1alpha1 true InstanceProfile
openidconnectproviders iam.services.k8s.aws/v1alpha1 true OpenIDConnectProvider
policies iam.services.k8s.aws/v1alpha1 true Policy
roles iam.services.k8s.aws/v1alpha1 true Role
servicelinkedroles iam.services.k8s.aws/v1alpha1 true ServiceLinkedRole
users iam.services.k8s.aws/v1alpha1 true User
clusters kafka.services.k8s.aws/v1alpha1 true Cluster
configurations kafka.services.k8s.aws/v1alpha1 true Configuration
serverlessclusters kafka.services.k8s.aws/v1alpha1 true ServerlessCluster
keyspaces keyspaces.services.k8s.aws/v1alpha1 true Keyspace
tables keyspaces.services.k8s.aws/v1alpha1 true Table
streams kinesis.services.k8s.aws/v1alpha1 true Stream
aliases kms.services.k8s.aws/v1alpha1 true Alias
grants kms.services.k8s.aws/v1alpha1 true Grant
keys kms.services.k8s.aws/v1alpha1 true Key
aliases lambda.services.k8s.aws/v1alpha1 true Alias
codesigningconfigs lambda.services.k8s.aws/v1alpha1 true CodeSigningConfig
eventsourcemappings lambda.services.k8s.aws/v1alpha1 true EventSourceMapping
functions lambda.services.k8s.aws/v1alpha1 true Function
functionurlconfigs lambda.services.k8s.aws/v1alpha1 true FunctionURLConfig
acls memorydb.services.k8s.aws/v1alpha1 true ACL
clusters memorydb.services.k8s.aws/v1alpha1 true Cluster
parametergroups memorydb.services.k8s.aws/v1alpha1 true ParameterGroup
snapshots memorydb.services.k8s.aws/v1alpha1 true Snapshot
subnetgroups memorydb.services.k8s.aws/v1alpha1 true SubnetGroup
users memorydb.services.k8s.aws/v1alpha1 true User
brokers mq.services.k8s.aws/v1alpha1 true Broker
firewallpolicies networkfirewall.services.k8s.aws/v1alpha1 true FirewallPolicy
firewalls networkfirewall.services.k8s.aws/v1alpha1 true Firewall
rulegroups networkfirewall.services.k8s.aws/v1alpha1 true RuleGroup
domains opensearchservice.services.k8s.aws/v1alpha1 true Domain
pipes pipes.services.k8s.aws/v1alpha1 true Pipe
alertmanagerdefinitions prometheusservice.services.k8s.aws/v1alpha1 true AlertManagerDefinition
loggingconfigurations prometheusservice.services.k8s.aws/v1alpha1 true LoggingConfiguration
rulegroupsnamespaces rgn prometheusservice.services.k8s.aws/v1alpha1 true RuleGroupsNamespace
workspaces prometheusservice.services.k8s.aws/v1alpha1 true Workspace
permissions ram.services.k8s.aws/v1alpha1 true Permission
resourceshares ram.services.k8s.aws/v1alpha1 true ResourceShare
dbclusterendpoints rds.services.k8s.aws/v1alpha1 true DBClusterEndpoint
dbclusterparametergroups rds.services.k8s.aws/v1alpha1 true DBClusterParameterGroup
dbclusters rds.services.k8s.aws/v1alpha1 true DBCluster
dbclustersnapshots rds.services.k8s.aws/v1alpha1 true DBClusterSnapshot
dbinstances rds.services.k8s.aws/v1alpha1 true DBInstance
dbparametergroups rds.services.k8s.aws/v1alpha1 true DBParameterGroup
dbproxies rds.services.k8s.aws/v1alpha1 true DBProxy
dbsnapshots rds.services.k8s.aws/v1alpha1 true DBSnapshot
dbsubnetgroups rds.services.k8s.aws/v1alpha1 true DBSubnetGroup
globalclusters rds.services.k8s.aws/v1alpha1 true GlobalCluster
rules recyclebin.services.k8s.aws/v1alpha1 true Rule
healthchecks route53.services.k8s.aws/v1alpha1 true HealthCheck
hostedzones route53.services.k8s.aws/v1alpha1 true HostedZone
recordsets route53.services.k8s.aws/v1alpha1 true RecordSet
resolverendpoints route53resolver.services.k8s.aws/v1alpha1 true ResolverEndpoint
resolverrules route53resolver.services.k8s.aws/v1alpha1 true ResolverRule
buckets s3.services.k8s.aws/v1alpha1 true Bucket
accesspoints s3control.services.k8s.aws/v1alpha1 true AccessPoint
apps sagemaker.services.k8s.aws/v1alpha1 true App
dataqualityjobdefinitions sagemaker.services.k8s.aws/v1alpha1 true DataQualityJobDefinition
domains sagemaker.services.k8s.aws/v1alpha1 true Domain
endpointconfigs sagemaker.services.k8s.aws/v1alpha1 true EndpointConfig
endpoints sagemaker.services.k8s.aws/v1alpha1 true Endpoint
featuregroups sagemaker.services.k8s.aws/v1alpha1 true FeatureGroup
hyperparametertuningjobs sagemaker.services.k8s.aws/v1alpha1 true HyperParameterTuningJob
inferencecomponents sagemaker.services.k8s.aws/v1alpha1 true InferenceComponent
labelingjobs sagemaker.services.k8s.aws/v1alpha1 true LabelingJob
modelbiasjobdefinitions sagemaker.services.k8s.aws/v1alpha1 true ModelBiasJobDefinition
modelexplainabilityjobdefinitions sagemaker.services.k8s.aws/v1alpha1 true ModelExplainabilityJobDefinition
modelpackagegroups sagemaker.services.k8s.aws/v1alpha1 true ModelPackageGroup
modelpackages sagemaker.services.k8s.aws/v1alpha1 true ModelPackage
modelqualityjobdefinitions sagemaker.services.k8s.aws/v1alpha1 true ModelQualityJobDefinition
models sagemaker.services.k8s.aws/v1alpha1 true Model
monitoringschedules sagemaker.services.k8s.aws/v1alpha1 true MonitoringSchedule
notebookinstancelifecycleconfigs sagemaker.services.k8s.aws/v1alpha1 true NotebookInstanceLifecycleConfig
notebookinstances sagemaker.services.k8s.aws/v1alpha1 true NotebookInstance
pipelineexecutions sagemaker.services.k8s.aws/v1alpha1 true PipelineExecution
pipelines sagemaker.services.k8s.aws/v1alpha1 true Pipeline
processingjobs sagemaker.services.k8s.aws/v1alpha1 true ProcessingJob
spaces sagemaker.services.k8s.aws/v1alpha1 true Space
trainingjobs sagemaker.services.k8s.aws/v1alpha1 true TrainingJob
transformjobs sagemaker.services.k8s.aws/v1alpha1 true TransformJob
userprofiles sagemaker.services.k8s.aws/v1alpha1 true UserProfile
secrets secretsmanager.services.k8s.aws/v1alpha1 true Secret
iamroleselectors services.k8s.aws/v1alpha1 false IAMRoleSelector
configurationsets ses.services.k8s.aws/v1alpha1 true ConfigurationSet
activities sfn.services.k8s.aws/v1alpha1 true Activity
statemachines sfn.services.k8s.aws/v1alpha1 true StateMachine
platformapplications sns.services.k8s.aws/v1alpha1 true PlatformApplication
platformendpoints sns.services.k8s.aws/v1alpha1 true PlatformEndpoint
subscriptions sns.services.k8s.aws/v1alpha1 true Subscription
topics sns.services.k8s.aws/v1alpha1 true Topic
queues sqs.services.k8s.aws/v1alpha1 true Queue
documents ssm.services.k8s.aws/v1alpha1 true Document
patchbaselines ssm.services.k8s.aws/v1alpha1 true PatchBaseline
resourcedatasyncs ssm.services.k8s.aws/v1alpha1 true ResourceDataSync
ipsets wafv2.services.k8s.aws/v1alpha1 true IPSet
rulegroups wafv2.services.k8s.aws/v1alpha1 true RuleGroup
webacls wafv2.services.k8s.aws/v1alpha1 true WebACL
ACK で AWS リソースを作成してみる
ACK の公式ドキュメント で紹介されている、S3 バケットを作成するための設定ファイルで試してみます。
普通に作成すると S3 バケット名が重複しそうなので、バケット名の末尾にアカウント ID を埋め込みます。
また、ライフサイクルルールのフィルターを設定しないで作成した所、Message: api error MalformedXML: The XML you provided was not well-formed or did not validate against our published schema と怒られたので設定を追加しています。
export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query "Account" --output text)
export BUCKET_NAME=my-production-bucket-$AWS_ACCOUNT_ID
read -r -d '' BUCKET_MANIFEST <<EOF
apiVersion: s3.services.k8s.aws/v1alpha1
kind: Bucket
metadata:
name: $BUCKET_NAME
spec:
name: $BUCKET_NAME
versioning:
status: Enabled
encryption:
rules:
- applyServerSideEncryptionByDefault:
sseAlgorithm: AES256
lifecycle:
rules:
- id: delete-old-versions
filter: # 追加
prefix: "" # 追加
status: Enabled
noncurrentVersionExpiration:
noncurrentDays: 90
publicAccessBlock:
blockPublicACLs: true
blockPublicPolicy: true
ignorePublicACLs: true
restrictPublicBuckets: true
EOF
echo "${BUCKET_MANIFEST}" > bucket.yaml
kubectl apply -f bucket.yaml
下記のようなレスポンスが返ってくれば作成完了です。
bucket.s3.services.k8s.aws/my-production-bucket-xxxxxxxxxxxx created
Statis が ACK.ResourceSynced になっていることを確認できました。
% kubectl describe bucket.s3.services.k8s.aws
Name: my-production-bucket-xxxxxxxxxxxx
Namespace: default
Labels: <none>
Annotations: <none>
API Version: s3.services.k8s.aws/v1alpha1
Kind: Bucket
Metadata:
Creation Timestamp: 2025-12-04T14:38:30Z
Finalizers:
finalizers.s3.services.k8s.aws/Bucket
Generation: 1
Resource Version: 1015714
UID: c41ca28d-cda3-4a4b-9605-4bd7659c2c83
Spec:
Encryption:
Rules:
Apply Server Side Encryption By Default:
Sse Algorithm: AES256
Lifecycle:
Rules:
Filter:
Prefix:
Id: delete-old-versions
Noncurrent Version Expiration:
Noncurrent Days: 90
Status: Enabled
Name: my-production-bucket-xxxxxxxxxxxx
Public Access Block:
Block Public AC Ls: true
Block Public Policy: true
Ignore Public AC Ls: true
Restrict Public Buckets: true
Versioning:
Status: Enabled
Status:
Ack Resource Metadata:
Arn: arn:aws:s3:::my-production-bucket-xxxxxxxxxxxx
Owner Account ID: xxxxxxxxxxxx
Region: ap-northeast-1
Conditions:
Last Transition Time: 2025-12-04T14:38:52Z
Message: Resource synced successfully
Reason:
Status: True
Type: ACK.ResourceSynced
Last Transition Time: 2025-12-04T14:38:52Z
Message: Resource synced successfully
Reason:
Status: True
Type: Ready
Location: http://my-production-bucket-xxxxxxxxxxxx.s3.amazonaws.com/
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Ready 2m50s operatorpkg.bucket.status Status condition transitioned, Type: Ready, Status: Unknown -> True, Reason: , Message: Resource synced successfully
また、対応する S3 バケットが作成されることを確認できました。
% aws s3 ls | grep "my-production-bucket"
2025-12-04 23:25:16 my-production-bucket-xxxxxxxxxxxx
アップストリーム版と比較して制限されている機能
Argo CD の場合は The Notifications controller など、アップストリーム版と比較して制限されている機能がありました。
ACK の場合はアップストリームと比較して制限される機能は無いです。
ただし、コントローラが GA しているサービスのみ利用可能です。
Resource compatibility: ACK custom resources work identically to upstream ACK with no changes to your ACK resource YAML files. The capability uses the same Kubernetes APIs and CRDs, so tools like kubectl work the same way. All GA controllers and resources from upstream ACK are supported.
https://docs.aws.amazon.com/eks/latest/userguide/ack-comparison.html#_differences_from_upstream_ack

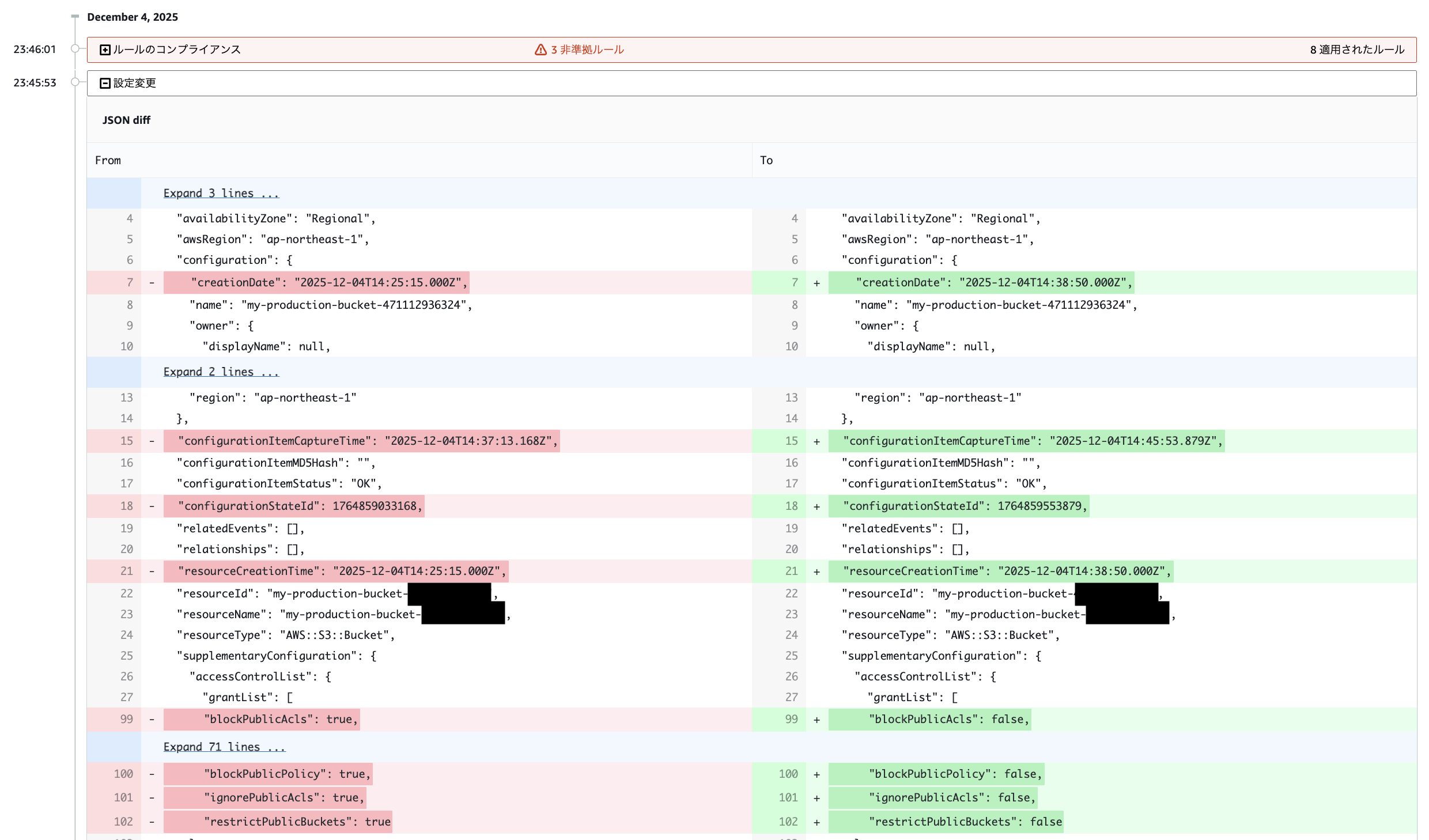

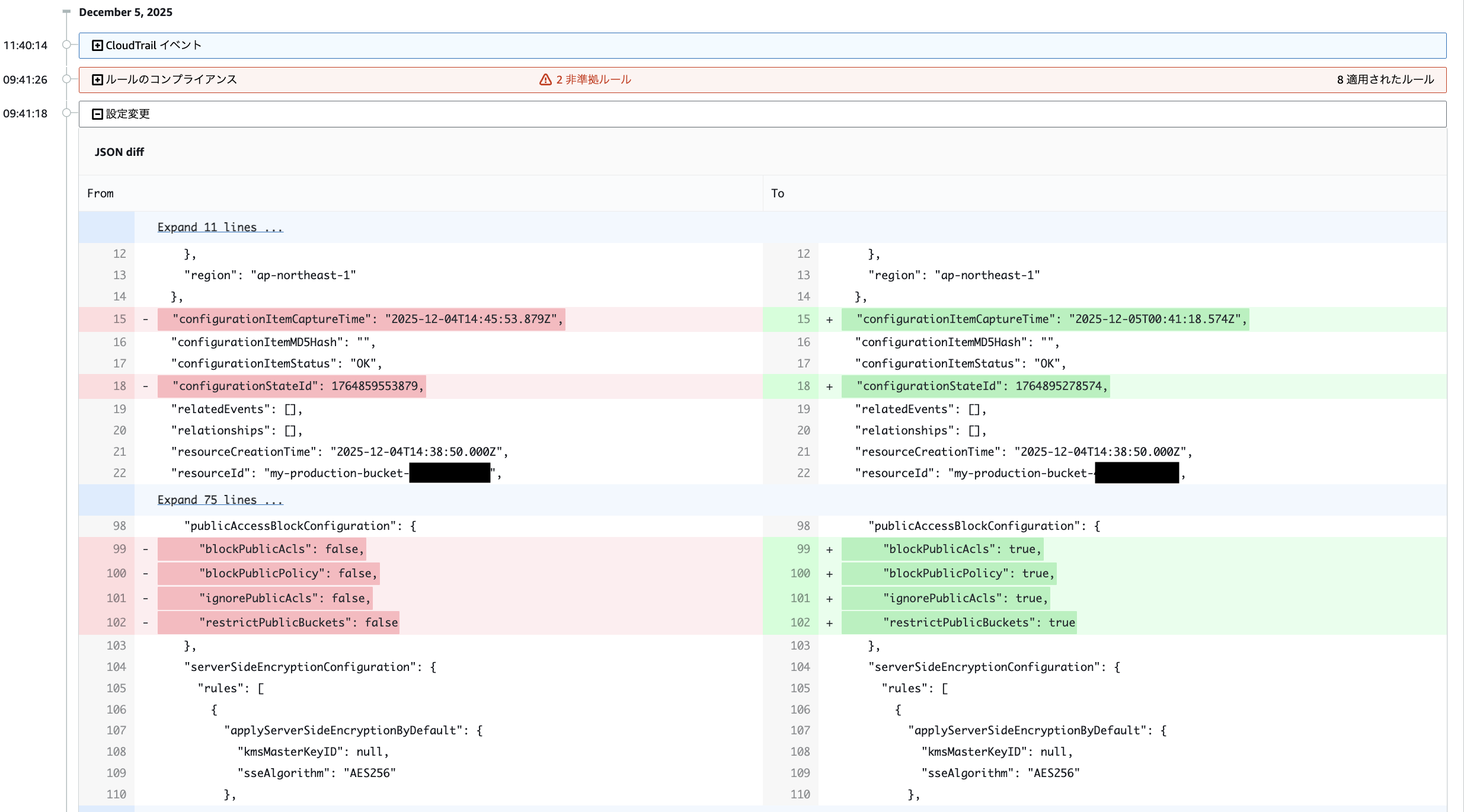

Reconciliation Loop について
ACK には望ましい設定と実際の AWS の設定を比較して修正する仕組みがあります。
ただし、常に監視しているわけでは無く、下記のいずれかでドリフトを確認する形になります。
The reconciliation loop triggers when:
・You create, update, or delete a resource in Kubernetes
・The periodic sync interval expires (default: 10 hours, configurable per controller)
・Controller restarts
Reconciliation Loop | AWS Controllers for Kubernetes
料金
各機能ごとに料金が決まっており、機能有効化自体の料金と扱う Kubernetes リソース数に依る追加料金が存在します。
東京 (ap-northeast-1) で ACK を利用した場合の料金は下記です。
| 項目 | 料金 | 備考 |
|---|---|---|
| ACK base charge | $0.00649 per ACK Capability hour | 4.74 USD/月程度 |
| ACK usage charge | $0.000065 ACK resource hour | 0.05 USD/月程度 |
base charge はかなり安いので、どれだけ多くの AWS リソースを扱うか次第ですね。
最後に
アプリケーションのデプロイに必要な AWS インフラを Kubernetes API 経由で管理することで、デプロイフローを単純化できて良さそうです。
まだまだ本番運用しているケースは少ないと思っていますが、EKS Capabilities が登場したことで採用される場面が増えるかもしれませんね。
また、EKS Capbilities は Argo CD と kro と ACK を合わせて利用することでより大きなメリットを享受しやすくなります。
Argo CD については下記ブログで試してみたので、こちらも参考にしていただけると嬉しいです。
