NetApp ONTAPといえばSnapMirror

こんにちは、のんピ(@non____97)です。

皆さんはNetApp ONTAPと言えば何を思い浮かべますか? 私はNetApp SnapMirror(以降、SnapMirror)です。

SnapMirrorはNetAppが提供するLANやWAN経由でデータを高速にレプリケーションする機能です。SnapMirrorを活用することでDRやデータの移行、データへアクセスの負荷分散を行うことができます。

SnapMirrorの詳細は以下NetApp公式ドキュメントや、NetApp公式チャンネルの以下動画をご覧ください。

SnapMirror ボリュームのレプリケーション : ONTAP 9

SnapMirrorはAmazon FSx for NetApp ONTAP(以降、FSx for ONTAP)でも使うことができます。

これにより、同じリージョンのボリューム間のレプリケーションはもちろん、別リージョン、オンプレミス上のボリュームとレプリケーションをすることができます。

ということで、FSx for ONTAPのボリュームをSnapMirrorでレプリケーションしてみました。

2022/11/30 追記 : AWS公式ドキュメントにもSnapMirrorを使った移行手順が記載されました。併せてご覧ください。

やってみた

検証の構成

検証は以下の構成で行います。

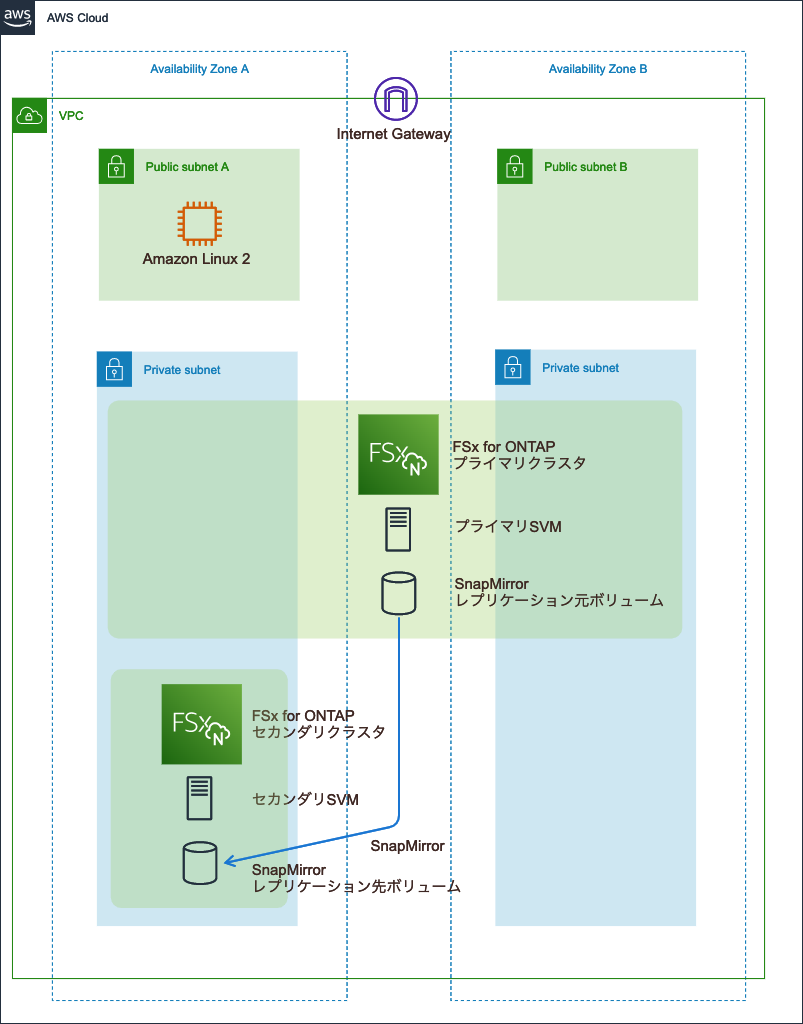

構成図

プライマリSVM上のボリュームから同じリージョン内のセカンダリSVM上のボリュームにレプリケーションするよう設定します。

  • クラスタ
    • プライマリ : FsxId06b3d2e945d454c19
    • セカンダリ : FsxId0967312eff2f5f5e1
  • SVM
    • プライマリ : snapmirror-src-svm
    • セカンダリ : snapmirror-dst-svm

SVMの作成

それでは、SVMの作成から行います。

まず、SnapMirrorのレプリケーション元であるプライマリSVMを作成します。

# プライマリSVMのパラメーターを指定
$ domain_name=fsx-dev.classmethod.jp
$ organizational_unit_distinguished_name='OU=FSxForNetAppONTAP,DC=fsx-dev,DC=classmethod,DC=jp'
$ filesystem_administrators_group=FSxAdminGroup
$ service_account_user_name=FSxServiceAccount
$ service_account_password='xxxxx'
$ dns_ip=10.0.0.138
$ svm_admin_password='yyyyy'

$ file_system_id=fs-06b3d2e945d454c19
$ svm_name=snapmirror-src-svm
$ net_bios_name=SNAPMIRROR-SRC

$ create_storage_virtual_machine_input=$(cat <<EOM
{
    "ActiveDirectoryConfiguration": {
        "NetBiosName": "$net_bios_name",
        "SelfManagedActiveDirectoryConfiguration": {
            "DomainName": "$domain_name",
            "OrganizationalUnitDistinguishedName": "$organizational_unit_distinguished_name",
            "FileSystemAdministratorsGroup": "$filesystem_administrators_group",
            "UserName": "$service_account_user_name",
            "Password": "$service_account_password",
            "DnsIps": [
                "$dns_ip"
            ]
        }
    },
    "FileSystemId": "$file_system_id",
    "Name": "$svm_name",
    "SvmAdminPassword": "$svm_admin_password",
    "Tags": [
        {
            "Key": "Name",
            "Value": "$svm_name"
        }
    ],
    "RootVolumeSecurityStyle": "MIXED"
}
EOM
)

# プライマリSVMの作成
$ create_storage_virtual_machine_output=$(aws fsx create-storage-virtual-machine \
    --cli-input-json "$create_storage_virtual_machine_input"
)

# プライマリSVMのIDを取得
$ snapmirror_src_svm_id=$(echo $create_storage_virtual_machine_output \
    | jq -r ".StorageVirtualMachine.StorageVirtualMachineId"
)

# プライマリSVMの作成が完了したことを確認
$ aws fsx describe-storage-virtual-machines \
    --storage-virtual-machine-ids "$snapmirror_src_svm_id"
{
    "StorageVirtualMachines": [
        {
            "ActiveDirectoryConfiguration": {
                "NetBiosName": "SNAPMIRROR-SRC",
                "SelfManagedActiveDirectoryConfiguration": {
                    "DomainName": "fsx-dev.classmethod.jp",
                    "OrganizationalUnitDistinguishedName": "OU=FSxForNetAppONTAP,DC=fsx-dev,DC=classmethod,DC=jp",
                    "UserName": "FSxServiceAccount",
                    "DnsIps": [
                        "10.0.0.138"
                    ]
                }
            },
            "CreationTime": "2022-06-07T01:17:00.814000+00:00",
            "Endpoints": {
                "Iscsi": {
                    "DNSName": "iscsi.svm-021541d8d3a6b7294.fs-06b3d2e945d454c19.fsx.ap-northeast-1.amazonaws.com",
                    "IpAddresses": [
                        "10.0.10.38",
                        "10.0.11.100"
                    ]
                },
                "Management": {
                    "DNSName": "svm-021541d8d3a6b7294.fs-06b3d2e945d454c19.fsx.ap-northeast-1.amazonaws.com",
                    "IpAddresses": [
                        "198.19.255.217"
                    ]
                },
                "Nfs": {
                    "DNSName": "svm-021541d8d3a6b7294.fs-06b3d2e945d454c19.fsx.ap-northeast-1.amazonaws.com",
                    "IpAddresses": [
                        "198.19.255.217"
                    ]
                },
                "Smb": {
                    "DNSName": "SNAPMIRROR-SRC.fsx-dev.classmethod.jp",
                    "IpAddresses": [
                        "198.19.255.217"
                    ]
                }
            },
            "FileSystemId": "fs-06b3d2e945d454c19",
            "Lifecycle": "CREATED",
            "Name": "snapmirror-src-svm",
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:storage-virtual-machine/fs-06b3d2e945d454c19/svm-021541d8d3a6b7294",
            "StorageVirtualMachineId": "svm-021541d8d3a6b7294",
            "Subtype": "DEFAULT",
            "UUID": "90339aa0-e5ff-11ec-af96-a9de44738137"
        }
    ]
}

# プライマリSVMに関連付くボリュームを確認
$ aws fsx describe-volumes \
    --filters Name=storage-virtual-machine-id,Values="$snapmirror_src_svm_id"
{
    "Volumes": [
        {
            "CreationTime": "2022-06-07T01:17:24+00:00",
            "FileSystemId": "fs-06b3d2e945d454c19",
            "Lifecycle": "CREATED",
            "Name": "snapmirror_src_svm_root",
            "OntapConfiguration": {
                "FlexCacheEndpointType": "NONE",
                "JunctionPath": "/",
                "SecurityStyle": "MIXED",
                "SizeInMegabytes": 1024,
                "StorageEfficiencyEnabled": false,
                "StorageVirtualMachineId": "svm-021541d8d3a6b7294",
                "StorageVirtualMachineRoot": true,
                "TieringPolicy": {
                    "Name": "NONE"
                },
                "UUID": "96645404-e5ff-11ec-af96-a9de44738137",
                "OntapVolumeType": "RW"
            },
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:volume/fs-06b3d2e945d454c19/fsvol-00a99f60354241171",
            "VolumeId": "fsvol-00a99f60354241171",
            "VolumeType": "ONTAP"
        }
    ]
}

続いて、セカンダリSVMも作成します。

# セカンダリSVMのパラメーターを指定
file_system_id=fs-0967312eff2f5f5e1
svm_name=snapmirror-dst-svm
net_bios_name=SNAPMIRROR-DST

create_storage_virtual_machine_input=$(cat <<EOM
{
    "ActiveDirectoryConfiguration": {
        "NetBiosName": "$net_bios_name",
        "SelfManagedActiveDirectoryConfiguration": {
            "DomainName": "$domain_name",
            "OrganizationalUnitDistinguishedName": "$organizational_unit_distinguished_name",
            "FileSystemAdministratorsGroup": "$filesystem_administrators_group",
            "UserName": "$service_account_user_name",
            "Password": "$service_account_password",
            "DnsIps": [
                "$dns_ip"
            ]
        }
    },
    "FileSystemId": "$file_system_id",
    "Name": "$svm_name",
    "SvmAdminPassword": "$svm_admin_password",
    "Tags": [
        {
            "Key": "Name",
            "Value": "$svm_name"
        }
    ],
    "RootVolumeSecurityStyle": "MIXED"
}
EOM
)

# セカンダリSVMの作成
create_storage_virtual_machine_output=$(aws fsx create-storage-virtual-machine \
    --cli-input-json "$create_storage_virtual_machine_input"
)

# セカンダリSVMのIDを取得
snapmirror_dst_svm_id=$(echo $create_storage_virtual_machine_output \
    | jq -r ".StorageVirtualMachine.StorageVirtualMachineId"
)

# セカンダリSVMの作成が完了したことを確認
aws fsx describe-storage-virtual-machines \
    --storage-virtual-machine-ids "$snapmirror_dst_svm_id"
{
    "StorageVirtualMachines": [
        {
            "ActiveDirectoryConfiguration": {
                "NetBiosName": "SNAPMIRROR-DST",
                "SelfManagedActiveDirectoryConfiguration": {
                    "DomainName": "fsx-dev.classmethod.jp",
                    "OrganizationalUnitDistinguishedName": "OU=FSxForNetAppONTAP,DC=fsx-dev,DC=classmethod,DC=jp",
                    "UserName": "FSxServiceAccount",
                    "DnsIps": [
                        "10.0.0.138"
                    ]
                }
            },
            "CreationTime": "2022-06-07T01:17:38.009000+00:00",
            "Endpoints": {
                "Iscsi": {
                    "DNSName": "iscsi.svm-03f236f055a779ee6.fs-0967312eff2f5f5e1.fsx.ap-northeast-1.amazonaws.com",
                    "IpAddresses": [
                        "10.0.10.33",
                        "10.0.10.226"
                    ]
                },
                "Management": {
                    "DNSName": "svm-03f236f055a779ee6.fs-0967312eff2f5f5e1.fsx.ap-northeast-1.amazonaws.com",
                    "IpAddresses": [
                        "10.0.10.139"
                    ]
                },
                "Nfs": {
                    "DNSName": "svm-03f236f055a779ee6.fs-0967312eff2f5f5e1.fsx.ap-northeast-1.amazonaws.com",
                    "IpAddresses": [
                        "10.0.10.139"
                    ]
                },
                "Smb": {
                    "DNSName": "SNAPMIRROR-DST.fsx-dev.classmethod.jp",
                    "IpAddresses": [
                        "10.0.10.139"
                    ]
                }
            },
            "FileSystemId": "fs-0967312eff2f5f5e1",
            "Lifecycle": "CREATED",
            "Name": "snapmirror-dst-svm",
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:storage-virtual-machine/fs-0967312eff2f5f5e1/svm-03f236f055a779ee6",
            "StorageVirtualMachineId": "svm-03f236f055a779ee6",
            "Subtype": "DEFAULT",
            "UUID": "a8b5b982-e5ff-11ec-9b85-43462316743d"
        }
    ]
}

# セカンダリSVMに関連付くボリュームを確認
aws fsx describe-volumes \
    --filters Name=storage-virtual-machine-id,Values="$snapmirror_dst_svm_id"
{
    "Volumes": [
        {
            "CreationTime": "2022-06-07T01:18:05+00:00",
            "FileSystemId": "fs-0967312eff2f5f5e1",
            "Lifecycle": "CREATED",
            "Name": "snapmirror_dst_svm_root",
            "OntapConfiguration": {
                "FlexCacheEndpointType": "NONE",
                "JunctionPath": "/",
                "SecurityStyle": "MIXED",
                "SizeInMegabytes": 1024,
                "StorageEfficiencyEnabled": false,
                "StorageVirtualMachineId": "svm-03f236f055a779ee6",
                "StorageVirtualMachineRoot": true,
                "TieringPolicy": {
                    "Name": "NONE"
                },
                "UUID": "aed8abd0-e5ff-11ec-b9d7-f912745d6a72",
                "OntapVolumeType": "RW"
            },
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:volume/fs-0967312eff2f5f5e1/fsvol-059bede26353c8a11",
            "VolumeId": "fsvol-059bede26353c8a11",
            "VolumeType": "ONTAP"
        }
    ]
}

SnapMirrorのレプリケーション元ボリュームの作成

次にSnapMirrorのレプリケーション元のボリュームを作成します。

# SnapMirrorのレプリケーション元ボリュームのパラメーターを指定
svm_id=$snapmirror_src_svm_id
volume_name=snapmirror_src_volume
junction_path='/snapmirror'
volume_size=1024

create_volume_input=$(cat <<EOM
{
    "VolumeType": "ONTAP",
    "Name": "$volume_name",
    "OntapConfiguration": {
        "JunctionPath": "$junction_path",
        "SecurityStyle": "MIXED",
        "SizeInMegabytes": $volume_size,
        "StorageEfficiencyEnabled": true,
        "StorageVirtualMachineId": "$svm_id",
        "TieringPolicy": {
            "CoolingPeriod": 31,
            "Name": "AUTO"
        }
    },
    "Tags": [
        {
            "Key": "Name",
            "Value": "$volume_name"
        }
    ]
}
EOM
)

# SnapMirrorのレプリケーション元ボリュームの作成
create_volume_output=$(aws fsx create-volume \
    --cli-input-json "$create_volume_input"
)

# SnapMirrorのレプリケーション元ボリュームがプライマリSVMに追加されたことを確認
aws fsx describe-volumes \
    --filters Name=storage-virtual-machine-id,Values="$snapmirror_src_svm_id"
{
    "Volumes": [
        {
            "CreationTime": "2022-06-07T01:17:24+00:00",
            "FileSystemId": "fs-06b3d2e945d454c19",
            "Lifecycle": "CREATED",
            "Name": "snapmirror_src_svm_root",
            "OntapConfiguration": {
                "FlexCacheEndpointType": "NONE",
                "JunctionPath": "/",
                "SecurityStyle": "MIXED",
                "SizeInMegabytes": 1024,
                "StorageEfficiencyEnabled": false,
                "StorageVirtualMachineId": "svm-021541d8d3a6b7294",
                "StorageVirtualMachineRoot": true,
                "TieringPolicy": {
                    "Name": "NONE"
                },
                "UUID": "96645404-e5ff-11ec-af96-a9de44738137",
                "OntapVolumeType": "RW"
            },
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:volume/fs-06b3d2e945d454c19/fsvol-00a99f60354241171",
            "VolumeId": "fsvol-00a99f60354241171",
            "VolumeType": "ONTAP"
        },
        {
            "CreationTime": "2022-06-07T01:22:54.705000+00:00",
            "FileSystemId": "fs-06b3d2e945d454c19",
            "Lifecycle": "CREATED",
            "Name": "snapmirror_src_volume",
            "OntapConfiguration": {
                "FlexCacheEndpointType": "NONE",
                "JunctionPath": "/snapmirror",
                "SecurityStyle": "MIXED",
                "SizeInMegabytes": 1024,
                "StorageEfficiencyEnabled": true,
                "StorageVirtualMachineId": "svm-021541d8d3a6b7294",
                "StorageVirtualMachineRoot": false,
                "TieringPolicy": {
                    "CoolingPeriod": 31,
                    "Name": "AUTO"
                },
                "UUID": "5e1e297a-e600-11ec-af96-a9de44738137",
                "OntapVolumeType": "RW"
            },
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:volume/fs-06b3d2e945d454c19/fsvol-024271888060843ef",
            "VolumeId": "fsvol-024271888060843ef",
            "VolumeType": "ONTAP"
        }
    ]
}

クラスタピアリングの設定

次にクラスタピアリングの設定を行います。

SnapMirrorを使用してボリューム間でデータをレプリケーションする際は、レプリケーション元とレプリケーション先のクラスタ間、およびレプリケーション元とレプリケーション先のSVM間でピアリングする必要があります。

まず、クラスタピアリングから行います。

クラスタピアリングを行うにあたって、各クラスタのクラスター間エンドポイントを確認します。AWSマネージメントコンソールやAWS CLIのdescribe-file-systemsから確認することもできますが、NetApp ONTAP CLIから確認したい気分だったので、NetApp ONTAP CLIから確認します。

プライマリクラスタのクラスター間エンドポイントを確認

> ssh fsxadmin@management.fs-06b3d2e945d454c19.fsx.ap-northeast-1.amazonaws.com
Password:

Last login time: 6/6/2022 06:47:30

FsxId06b3d2e945d454c19::> network interface show -service-policy default-intercluster
            Logical    Status     Network            Current       Current Is
Vserver     Interface  Admin/Oper Address/Mask       Node          Port    Home
----------- ---------- ---------- ------------------ ------------- ------- ----
FsxId06b3d2e945d454c19
            inter_1      up/up    10.0.10.73/24      FsxId06b3d2e945d454c19-01
                                                                   e0e     true
            inter_2      up/up    10.0.11.152/24     FsxId06b3d2e945d454c19-02
                                                                   e0e     true
2 entries were displayed.

セカンダリクラスタのクラスター間エンドポイントを確認

> ssh fsxadmin@management.fs-0967312eff2f5f5e1.fsx.ap-northeast-1.amazonaws.com
Password:

Last login time: 6/6/2022 05:10:38

FsxId0967312eff2f5f5e1::> network interface show -service-policy default-intercluster
            Logical    Status     Network            Current       Current Is
Vserver     Interface  Admin/Oper Address/Mask       Node          Port    Home
----------- ---------- ---------- ------------------ ------------- ------- ----
FsxId0967312eff2f5f5e1
            inter_1      up/up    10.0.10.81/24      FsxId0967312eff2f5f5e1-01
                                                                   e0e     true
            inter_2      up/up    10.0.10.63/24      FsxId0967312eff2f5f5e1-02
                                                                   e0e     true
2 entries were displayed.

各クラスタのクラスター間エンドポイント確認を確認できたので、クラスタピアリングを行います。

セカンダリクラスタからプライマリクラスタへクラスタピアリングを行います。

# セカンダリクラスタの名前を確認
FsxId0967312eff2f5f5e1::> cluster identity show

          Cluster UUID: 5733f342-d70b-11ec-aeb4-877d41bba405
          Cluster Name: FsxId0967312eff2f5f5e1
 Cluster Serial Number: 1-80-000011
      Cluster Location:
       Cluster Contact:

# クラスタピアリングがないことを確認
FsxId0967312eff2f5f5e1::> cluster peer show
This table is currently empty.

# クラスタピアリングの作成
FsxId0967312eff2f5f5e1::> cluster peer create -peer-addrs 10.0.10.73, 10.0.11.152

Notice: Use a generated passphrase or choose a passphrase of 8 or more characters. To ensure the authenticity of the peering relationship, use a phrase or sequence of characters that would be hard to guess.

Enter the passphrase:
Confirm the passphrase:

Notice: Now use the same passphrase in the "cluster peer create" command in the other cluster.

# クラスタピアリングが作成されたことを確認
FsxId0967312eff2f5f5e1::> cluster peer show
Peer Cluster Name         Cluster Serial Number Availability   Authentication
------------------------- --------------------- -------------- --------------
FsxId06b3d2e945d454c19    -                     Unavailable    pending

セカンダリクラスタからプライマリクラスタへのクラスタピアリングを作成したら、プライマリクラスタ側で承認します。VPCピアリングと同じような流れですね。

# プライマリクラスタの名前を確認
FsxId06b3d2e945d454c19::> cluster identity show

          Cluster UUID: 5cde1111-d4de-11ec-af96-a9de44738137
          Cluster Name: FsxId06b3d2e945d454c19
 Cluster Serial Number: 1-80-000011
      Cluster Location:
       Cluster Contact:

# プライマリクラスタからはクラスタピアがまだ作成されていないことを確認
FsxId06b3d2e945d454c19::> cluster peer show
This table is currently empty.

# クラスタピアリングの受け入れ
FsxId06b3d2e945d454c19::> cluster peer create -peer-addrs 10.0.10.81, 10.0.10.63

Notice: Use a generated passphrase or choose a passphrase of 8 or more characters. To ensure the authenticity of the peering relationship, use a phrase or sequence of characters that would be hard to guess.

Enter the passphrase:
Confirm the passphrase:

# クラスタピアリングが "Available" になったことを確認
FsxId06b3d2e945d454c19::> cluster peer show
Peer Cluster Name         Cluster Serial Number Availability   Authentication
------------------------- --------------------- -------------- --------------
FsxId0967312eff2f5f5e1    1-80-000011           Available      ok

# クラスタピアリングの詳細確認
FsxId06b3d2e945d454c19::> cluster peer show -instance

                       Peer Cluster Name: FsxId0967312eff2f5f5e1
           Remote Intercluster Addresses: 10.0.10.81, 10.0.10.63
      Availability of the Remote Cluster: Available
                     Remote Cluster Name: FsxId0967312eff2f5f5e1
                     Active IP Addresses: 10.0.10.81, 10.0.10.63
                   Cluster Serial Number: 1-80-000011
                    Remote Cluster Nodes: FsxId0967312eff2f5f5e1-01,
                                          FsxId0967312eff2f5f5e1-02
                   Remote Cluster Health: true
                 Unreachable Local Nodes: -
          Address Family of Relationship: ipv4
    Authentication Status Administrative: use-authentication
       Authentication Status Operational: ok
                        Last Update Time: 6/6/2022 09:49:22
            IPspace for the Relationship: Default
Proposed Setting for Encryption of Inter-Cluster Communication: -
Encryption Protocol For Inter-Cluster Communication: tls-psk
  Algorithm By Which the PSK Was Derived: jpake

クラスタピアリングを確立できたら、セカンダリクラスタからもクラスタピアリングの詳細を確認します。

FsxId0967312eff2f5f5e1::> cluster peer show -instance

                       Peer Cluster Name: FsxId06b3d2e945d454c19
           Remote Intercluster Addresses: 10.0.10.73, 10.0.11.152
      Availability of the Remote Cluster: Available
                     Remote Cluster Name: FsxId06b3d2e945d454c19
                     Active IP Addresses: 10.0.11.152, 10.0.10.73
                   Cluster Serial Number: 1-80-000011
                    Remote Cluster Nodes: FsxId06b3d2e945d454c19-01,
                                          FsxId06b3d2e945d454c19-02
                   Remote Cluster Health: true
                 Unreachable Local Nodes: -
          Address Family of Relationship: ipv4
    Authentication Status Administrative: use-authentication
       Authentication Status Operational: ok
                        Last Update Time: 6/7/2022 07:30:14
            IPspace for the Relationship: Default
Proposed Setting for Encryption of Inter-Cluster Communication: -
Encryption Protocol For Inter-Cluster Communication: tls-psk
  Algorithm By Which the PSK Was Derived: jpake

SVMピアリングの設定

クラスタピアリングができたので、次にSVMピアリングを行います。

プライマリSVMからSVMピアリングを行います。

# SVMピアリングがないことを確認
FsxId06b3d2e945d454c19::> vserver peer show-all
There are no Vserver peer relationships.

# プライマリSVMの情報を表示
FsxId06b3d2e945d454c19::> vserver show snapmirror-src-svm

                                    Vserver: snapmirror-src-svm
                               Vserver Type: data
                            Vserver Subtype: default
                               Vserver UUID: 90339aa0-e5ff-11ec-af96-a9de44738137
                                Root Volume: snapmirror_src_svm_root
                                  Aggregate: aggr1
                                 NIS Domain: -
                 Root Volume Security Style: mixed
                                LDAP Client: -
               Default Volume Language Code: C.UTF-8
                            Snapshot Policy: default
                              Data Services: data-cifs, data-iscsi, data-nfs,
                                             data-nvme-tcp
                                    Comment:
                               Quota Policy: default
                List of Aggregates Assigned: aggr1
 Limit on Maximum Number of Volumes allowed: unlimited
                        Vserver Admin State: running
                  Vserver Operational State: running
   Vserver Operational State Stopped Reason: -
                          Allowed Protocols: nfs, cifs, fcp, iscsi, ndmp
                       Disallowed Protocols: -
            Is Vserver with Infinite Volume: false
                           QoS Policy Group: -
                        Caching Policy Name: -
                                Config Lock: false
                               IPspace Name: Default
                         Foreground Process: -
                    Logical Space Reporting: false
                  Logical Space Enforcement: false
Default Anti_ransomware State of the Vserver's Volumes: disabled

# SVMピアリングの作成
FsxId06b3d2e945d454c19::> vserver peer create -vserver snapmirror-src-svm -peer-vserver snapmirror-dst-svm -applications snapmirror -peer-cluster FsxId0967312eff2f5f5e1

Info: [Job 427] 'vserver peer create' job queued

# SVMピアリングが作成されたことを確認
FsxId06b3d2e945d454c19::> vserver peer show-all
            Peer        Peer                           Peering        Remote
Vserver     Vserver     State        Peer Cluster      Applications   Vserver
----------- ----------- ------------ ----------------- -------------- ---------
snapmirror-src-svm
            snapmirror-dst-svm
                        initiated    FsxId0967312eff2f5f5e1
                                                       snapmirror     snapmirror-dst-svm

SVMピアリングの作成したら、クラスタピアリングと同様にもう片方のSVM側でピアリングを承認します。

# セカンダリSVMの情報を表示
FsxId0967312eff2f5f5e1::> vserver show -vserver snapmirror-dst-svm

                                    Vserver: snapmirror-dst-svm
                               Vserver Type: data
                            Vserver Subtype: default
                               Vserver UUID: a8b5b982-e5ff-11ec-9b85-43462316743d
                                Root Volume: snapmirror_dst_svm_root
                                  Aggregate: aggr1
                                 NIS Domain: -
                 Root Volume Security Style: mixed
                                LDAP Client: -
               Default Volume Language Code: C.UTF-8
                            Snapshot Policy: default
                              Data Services: data-cifs, data-iscsi, data-nfs,
                                             data-nvme-tcp
                                    Comment:
                               Quota Policy: default
                List of Aggregates Assigned: aggr1
 Limit on Maximum Number of Volumes allowed: unlimited
                        Vserver Admin State: running
                  Vserver Operational State: running
   Vserver Operational State Stopped Reason: -
                          Allowed Protocols: nfs, cifs, fcp, iscsi, ndmp
                       Disallowed Protocols: -
            Is Vserver with Infinite Volume: false
                           QoS Policy Group: -
                        Caching Policy Name: -
                                Config Lock: false
                               IPspace Name: Default
                         Foreground Process: -
                    Logical Space Reporting: false
                  Logical Space Enforcement: false
Default Anti_ransomware State of the Vserver's Volumes: disabled

# SVMピアリングのステータスが "pending" になっていることを確認
FsxId0967312eff2f5f5e1::> vserver peer show-all -vserver snapmirror-dst-svm -peer-vserver snapmirror-src-svm -instance

  Local Vserver Name: snapmirror-dst-svm
   Peer Vserver Name: snapmirror-src-svm
       Peering State: pending
Peering Applications: snapmirror
   Peer Cluster Name: FsxId06b3d2e945d454c19
 Remote Vserver Name: snapmirror-src-svm

# SVMピアリングの承認
FsxId0967312eff2f5f5e1::>  vserver peer accept -vserver snapmirror-dst-svm -peer-vserver snapmirror-src-svm

Info: [Job 338] 'vserver peer accept' job queued

# SVMピアリングのステータスが "peered" になっていることを確認
FsxId0967312eff2f5f5e1::> vserver peer show-all -vserver snapmirror-dst-svm -peer-vserver snapmirror-src-svm -instance

  Local Vserver Name: snapmirror-dst-svm
   Peer Vserver Name: snapmirror-src-svm
       Peering State: peered
Peering Applications: snapmirror
   Peer Cluster Name: FsxId06b3d2e945d454c19
 Remote Vserver Name: snapmirror-src-svm

SnapMirrorの設定

それでは本題のSnapMirrorの設定を行います。

SnapMirrorの設定を行うにあたって、本来であれば以下の手順を踏む必要があります。

  1. レプリケーション先のボリュームの作成 : volume create
  2. SnapMirror relationshipの作成 : snapmirror create
  3. SnapMirrorのベースライン転送の開始 : snapmirror initialize

一つ一つ丁寧にやっても良いですが、snapmirror protectコマンドを使うことで上述の作業を一気に行うことができます。

ちなみに、この作業はレプリケーション先となるセカンダリSVMから行う必要があります。

#セカンダリSVMにroot以外のボリュームがないことを確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm
Vserver   Volume       Aggregate    State      Type       Size  Available Used%
--------- ------------ ------------ ---------- ---- ---------- ---------- -----
snapmirror-dst-svm
          snapmirror_dst_svm_root
                       aggr1        online     RW          1GB    972.5MB    0%

# SnapMirror relationshipがないことを確認
FsxId0967312eff2f5f5e1::> snapmirror show
This table is currently empty.

# レプリケーション先ボリュームの作成
# SnapMirror relationshipの作成
# SnapMirrorのベースライン転送の開始
# レプリケーションリングは5分間隔
FsxId0967312eff2f5f5e1::> snapmirror protect -path-list snapmirror-src-svm:snapmirror_src_volume -destination-vserver snapmirror-dst-svm -policy MirrorAllSnapshots -schedule 5min -auto-initialize true -support-tiering true -tiering-policy auto
[Job 339] Job is queued: snapmirror protect for list of source endpoints beginning with "snapmirror-src-svm:snapmirror_src_volume".

# SnapMirror relationshipが作成されたことを確認
FsxId0967312eff2f5f5e1::> snapmirror show
                                                                       Progress
Source            Destination Mirror  Relationship   Total             Last
Path        Type  Path        State   Status         Progress  Healthy Updated
----------- ---- ------------ ------- -------------- --------- ------- --------
snapmirror-src-svm:snapmirror_src_volume
            XDP  snapmirror-dst-svm:snapmirror_src_volume_dst
                              Snapmirrored
                                      Idle           -         true    -

# SnapMirror relationshipの詳細を確認
FsxId0967312eff2f5f5e1::> snapmirror show -instance

                            Source Path: snapmirror-src-svm:snapmirror_src_volume
                       Destination Path: snapmirror-dst-svm:snapmirror_src_volume_dst
                      Relationship Type: XDP
                Relationship Group Type: none
                    SnapMirror Schedule: 5min
                 SnapMirror Policy Type: async-mirror
                      SnapMirror Policy: MirrorAllSnapshots
                            Tries Limit: -
                      Throttle (KB/sec): unlimited
                           Mirror State: Snapmirrored
                    Relationship Status: Idle
                File Restore File Count: -
                 File Restore File List: -
                      Transfer Snapshot: -
                      Snapshot Progress: -
                         Total Progress: -
    Percent Complete for Current Status: -
              Network Compression Ratio: -
                    Snapshot Checkpoint: -
                        Newest Snapshot: snapmirror.a8b5b982-e5ff-11ec-9b85-43462316743d_2161319955.2022-06-07_015130
              Newest Snapshot Timestamp: 06/07 01:51:30
                      Exported Snapshot: snapmirror.a8b5b982-e5ff-11ec-9b85-43462316743d_2161319955.2022-06-07_015130
            Exported Snapshot Timestamp: 06/07 01:51:30
                                Healthy: true
                       Unhealthy Reason: -
                Destination Volume Node: FsxId0967312eff2f5f5e1-01
                        Relationship ID: 59eadf92-e604-11ec-9b85-43462316743d
                   Current Operation ID: -
                          Transfer Type: -
                         Transfer Error: -
                       Current Throttle: -
              Current Transfer Priority: -
                     Last Transfer Type: update
                    Last Transfer Error: -
                     Last Transfer Size: 0B
Last Transfer Network Compression Ratio: 1:1
                 Last Transfer Duration: 0:0:0
                     Last Transfer From: snapmirror-src-svm:snapmirror_src_volume
            Last Transfer End Timestamp: 06/07 01:51:32
                  Progress Last Updated: -
                Relationship Capability: 8.2 and above
                               Lag Time: 0:2:20
           Identity Preserve Vserver DR: -
                 Volume MSIDs Preserved: -
                 Is Auto Expand Enabled: -
           Number of Successful Updates: 1
               Number of Failed Updates: 0
           Number of Successful Resyncs: 0
               Number of Failed Resyncs: 0
            Number of Successful Breaks: 0
                Number of Failed Breaks: 0
                   Total Transfer Bytes: 17624
         Total Transfer Time in Seconds: 2
                 FabricLink Source Role: -
               FabricLink Source Bucket: -
                   FabricLink Peer Role: -
                 FabricLink Peer Bucket: -
                    FabricLink Topology: -
             FabricLink Pull Byte Count: -
             FabricLink Push Byte Count: -
          FabricLink Pending Work Count: -
                      FabricLink Status: -

# レプリケーション先ボリュームが作成されたことを確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm
Vserver   Volume       Aggregate    State      Type       Size  Available Used%
--------- ------------ ------------ ---------- ---- ---------- ---------- -----
snapmirror-dst-svm
          snapmirror_dst_svm_root
                       aggr1        online     RW          1GB    972.5MB    0%
snapmirror-dst-svm
          snapmirror_src_volume_dst
                       aggr1        online     DP      128.0MB    121.3MB    0%
2 entries were displayed.

25分ほど待つと、AWS側でもレプリケーション先ボリュームが作成されたことを確認できました。

$ snapmirror_dst_svm_id=svm-03f236f055a779ee6

$ aws fsx describe-volumes \
    --filters Name=storage-virtual-machine-id,Values="$snapmirror_dst_svm_id"
{
    "Volumes": [
        {
            "CreationTime": "2022-06-07T01:18:05+00:00",
            "FileSystemId": "fs-0967312eff2f5f5e1",
            "Lifecycle": "CREATED",
            "Name": "snapmirror_dst_svm_root",
            "OntapConfiguration": {
                "FlexCacheEndpointType": "NONE",
                "JunctionPath": "/",
                "SecurityStyle": "MIXED",
                "SizeInMegabytes": 1024,
                "StorageEfficiencyEnabled": false,
                "StorageVirtualMachineId": "svm-03f236f055a779ee6",
                "StorageVirtualMachineRoot": true,
                "TieringPolicy": {
                    "Name": "NONE"
                },
                "UUID": "aed8abd0-e5ff-11ec-b9d7-f912745d6a72",
                "OntapVolumeType": "RW"
            },
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:volume/fs-0967312eff2f5f5e1/fsvol-059bede26353c8a11",
            "VolumeId": "fsvol-059bede26353c8a11",
            "VolumeType": "ONTAP"
        },
        {
            "CreationTime": "2022-06-07T01:51:29+00:00",
            "FileSystemId": "fs-0967312eff2f5f5e1",
            "Lifecycle": "CREATED",
            "Name": "snapmirror_src_volume_dst",
            "OntapConfiguration": {
                "FlexCacheEndpointType": "NONE",
                "SecurityStyle": "MIXED",
                "SizeInMegabytes": 127,
                "StorageEfficiencyEnabled": false,
                "StorageVirtualMachineId": "svm-03f236f055a779ee6",
                "StorageVirtualMachineRoot": false,
                "TieringPolicy": {
                    "CoolingPeriod": 31,
                    "Name": "AUTO"
                },
                "UUID": "595004fd-e604-11ec-9b85-43462316743d",
                "OntapVolumeType": "DP"
            },
            "ResourceARN": "arn:aws:fsx:ap-northeast-1:<AWSアカウントID>:volume/fs-0967312eff2f5f5e1/fsvol-0d53dc63a709441de",
            "VolumeId": "fsvol-0d53dc63a709441de",
            "VolumeType": "ONTAP"
        }
    ]
}

Relationship StatusとMirror Stateのそれぞれのステータスは以下をご覧ください。

  • Relationship Status
RELATIONSHIP STATE MEANING NOTES
Idle No transfer operation is in progress and future transfers are not disabled. This is a normal State that does not need corrective action.
Queued A transfer operation has been accepted and queued in the system, and future transfers are not disabled
Transferring A transfer operation is in progress and future transfers are not disabled. You can use snapmirror abort to Stop a in progress transfer. This will place the Mirror in a unhealthy state and back into Idle.
Preparing Pre-transfer phase for incremental transfers. For SnapMirror Type-XDP relationships only. This is a System Process. If a relationship is spending an excessive amount of time Preparing, please contact the support team for assistance.
Finalizing Post-transfer phase for incremental transfers. Network traffic will be low as processing is primarily on the destination volume. For SnapMirror Type-XDP relationships only. This is a System Process. If a relationship is spending an excessive amount of time Finalizing, please contact the support team for assistance.
Aborting A transfer abort operation that may include the removal of the checkpoint is underway. Future transfers are not disabled. Only for relationships with "Relationship Capability" of "8.2 and above".
Quiesced No transfer operation is in progress and future transfers are disabled. Snapmirror resume can be used to resume scheduled updates.
Quiescing A transfer operation is in progress and future transfers are disabled. Quiescing can take a while on Vault relationships, however if excessive please contact the Support team for assistance.
Checking Destination volume is undergoing a diagnostic check, no transfer is in progress, and future transfers are not disabled. Only for relationships with "Relationship Capability" of "Pre 8.2". This is a System Process. If a Vault relationship is spending an excessive amount of time Checking, please contact the support team for assistance.
Breaking The SnapMirror relationship is being broken off and no transfer is in progress. This is a System Process. If a Vault relationship is spending an excessive amount of time Breaking, please contact the support team for assistance.
  • Mirror State
MIRROR STATE MEANING NOTE
Uninitialized Destination volume has not
been initialized.
This is the default state when a relationship is created. The mirror will show un-initialized until the initialization completes successfully.
Snapmirrored Destination volume has been
initialized and is ready to receive SnapMirror updates.
Broken-off Destination volume is RW and snapshots are present. Breaking off a relationship changes it to become read/writable and allows you to use it like a normal volume. To put the volume back into a Snapmirrored state you will need to use the Snapmirror resync command. This is dependent on the relationship having a common snapshot, if it does not the source volume will have to be reprotected.

抜粋 : What are the Ontap SnapMirror relationship status and SnapMirror State meanings? - NetApp Knowledge Base

レプリケーション先ボリュームのサイズ変更

snapmirror protectでレプリケーション先ボリュームが作成できましたが、ボリュームサイズが128MBです。

# レプリケーション先ボリュームの詳細情報
FsxId0967312eff2f5f5e1::> volume show snapmirror_src_volume_dst -instance

                                   Vserver Name: snapmirror-dst-svm
                                    Volume Name: snapmirror_src_volume_dst
                                 Aggregate Name: aggr1
  List of Aggregates for FlexGroup Constituents: aggr1
                                Encryption Type: none
               List of Nodes Hosting the Volume: FsxId0967312eff2f5f5e1-01
                                    Volume Size: 128.0MB
                             Volume Data Set ID: 1037
                      Volume Master Data Set ID: 2161319955
                                   Volume State: online
                                   Volume Style: flex
                          Extended Volume Style: flexvol
                        FlexCache Endpoint Type: none
                         Is Cluster-Mode Volume: true
                          Is Constituent Volume: false
                  Number of Constituent Volumes: -
                                  Export Policy: default
                                        User ID: 0
                                       Group ID: 0
                                 Security Style: mixed
                               UNIX Permissions: ---rwxr-xr-x
                                  Junction Path: -
                           Junction Path Source: -
                                Junction Active: -
                         Junction Parent Volume: -
                                        Comment:
                                 Available Size: 121.3MB
                                Filesystem Size: 128.0MB
                        Total User-Visible Size: 121.6MB
                                      Used Size: 300KB
                                Used Percentage: 0%
           Volume Nearly Full Threshold Percent: 95%
                  Volume Full Threshold Percent: 98%
                               Maximum Autosize: 100TB
                               Minimum Autosize: 22MB
             Autosize Grow Threshold Percentage: 85%
           Autosize Shrink Threshold Percentage: 80%
                                  Autosize Mode: grow_shrink
            Total Files (for user-visible data): 31122
             Files Used (for user-visible data): 96
                      Space Guarantee in Effect: true
                            Space SLO in Effect: true
                                      Space SLO: none
                          Space Guarantee Style: none
                             Fractional Reserve: 0%
                                    Volume Type: DP
              Snapshot Directory Access Enabled: true
             Space Reserved for Snapshot Copies: 5%
                          Snapshot Reserve Used: 6%
                                Snapshot Policy: none
                                  Creation Time: Tue Jun 07 01:51:29 2022
                                       Language: C.UTF-8
                                   Clone Volume: false
                                      Node name: FsxId0967312eff2f5f5e1-01
                      Clone Parent Vserver Name: -
                        FlexClone Parent Volume: -
                                  NVFAIL Option: off
                          Volume's NVFAIL State: false
        Force NVFAIL on MetroCluster Switchover: off
                      Is File System Size Fixed: false
                     (DEPRECATED)-Extent Option: off
                  Reserved Space for Overwrites: 0B
              Primary Space Management Strategy: volume_grow
                       Read Reallocation Option: off
    Naming Scheme for Automatic Snapshot Copies: create_time
               Inconsistency in the File System: false
                   Is Volume Quiesced (On-Disk): false
                 Is Volume Quiesced (In-Memory): false
      Volume Contains Shared or Compressed Data: true
              Space Saved by Storage Efficiency: 0B
         Percentage Saved by Storage Efficiency: 0%
                   Space Saved by Deduplication: 0B
              Percentage Saved by Deduplication: 0%
                  Space Shared by Deduplication: 0B
                     Space Saved by Compression: 0B
          Percentage Space Saved by Compression: 0%
            Volume Size Used by Snapshot Copies: 372KB
                                     Block Type: 64-bit
                               Is Volume Moving: false
                 Flash Pool Caching Eligibility: read-write
  Flash Pool Write Caching Ineligibility Reason: -
                        Constituent Volume Role: -
                          QoS Policy Group Name: -
                 QoS Adaptive Policy Group Name: -
                            Caching Policy Name: -
                Is Volume Move in Cutover Phase: false
        Number of Snapshot Copies in the Volume: 2
VBN_BAD may be present in the active filesystem: false
                Is Volume on a hybrid aggregate: false
                       Total Physical Used Size: 672KB
                       Physical Used Percentage: 1%
                                 FlexGroup Name: -
                          Is Volume a FlexGroup: false
                                  SnapLock Type: non-snaplock
                          Vserver DR Protection: -
                   Enable or Disable Encryption: false
                            Is Volume Encrypted: false
                               Encryption State: none
                              Encryption Key ID:
                                    Application: -
                  Is Fenced for Protocol Access: false
                    Protocol Access Fence Owner: -
                                Is SIDL enabled: off
                          Over Provisioned Size: 0B
                Available Snapshot Reserve Size: 6.04MB
                              Logical Used Size: 300KB
                        Logical Used Percentage: 0%
                         Logical Available Size: -
         Logical Size Used by Active Filesystem: 300KB
             Logical Size Used by All Snapshots: 0B
                        Logical Space Reporting: false
                      Logical Space Enforcement: false
                          Volume Tiering Policy: auto
            Performance Tier Inactive User Data: -
    Performance Tier Inactive User Data Percent: -
Tags to be Associated with Objects Stored on a FabricPool: -
Does the Object Tagging Scanner Need to Run on This Volume: false
             Is File System Analytics Supported: false
  Reason File System Analytics is not Supported: File system analytics is not supported on SnapMirror destination volumes.
                    File System Analytics State: off
            File System Analytics Scan Progress: -
                        Activity Tracking State: off
                 Is Activity Tracking Supported: false
      Reason Activity Tracking Is Not Supported: Volume activity tracking is not supported on SnapMirror destination volumes.
                                 Is SMBC Master: false
                       Is SMBC Failover Capable: false
                                 SMBC Consensus: -
                          Anti-ransomware State: disabled

一方、レプリケーション先のボリュームのサイズは1GBです。レプリケーション先ボリュームは最大100TBまで自動で拡張するようになっていますが、一気に128MB以上のデータが送られてきた場合の挙動が心配なので、レプリケーション先ボリュームのサイズをレプリケーション元ボリュームのサイズに拡張してあげようと思います。

# レプリケーション先ボリュームのサイズ確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm  -fields size, max-autosize
vserver            volume                  size max-autosize
------------------ ----------------------- ---- ------------
snapmirror-dst-svm snapmirror_dst_svm_root 1GB  1.20GB
snapmirror-dst-svm snapmirror_src_volume_dst
                                           128.0MB
                                                100TB
2 entries were displayed.

# レプリケーション先ボリュームのサイズを1GBに変更
FsxId0967312eff2f5f5e1::> volume modify -vserver snapmirror-dst-svm  -volume snapmirror_src_volume_dst -size 1GB
Volume modify successful on volume snapmirror_src_volume_dst of Vserver snapmirror-dst-svm.

Based on the new volume size, the system automatically adjusted the volume autosize settings as follows:
The volume is set to shrink to a minimum of 1g when the volume-used space falls below 80%.

# レプリケーション先ボリュームのサイズが1GBに拡張されたことを確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm  -fields size, max-autosize
vserver            volume                  size max-autosize
------------------ ----------------------- ---- ------------
snapmirror-dst-svm snapmirror_dst_svm_root 1GB  1.20GB
snapmirror-dst-svm snapmirror_src_volume_dst
                                           1GB  100TB
2 entries were displayed.

レプリケーション先ボリュームのジャンクションパスの設定

作成されたレプリケーション先ボリュームにはジャンクションパスが設定されていません。

レプリケーション先ボリュームをマウントできるようにジャンクションパスを設定してあげます。

# レプリケーション先ボリュームにジャンクションパスが設定されていないことを確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm  -fields junction-path
vserver            volume                  junction-path
------------------ ----------------------- -------------
snapmirror-dst-svm snapmirror_dst_svm_root /
snapmirror-dst-svm snapmirror_src_volume_dst
                                           -
2 entries were displayed.

# レプリケーション先ボリュームにジャンクションパス "/snapmirror" を設定
FsxId0967312eff2f5f5e1::> volume mount -vserver snapmirror-dst-svm -volume snapmirror_src_volume_dst -junction-path /snapmirror

# レプリケーション先ボリュームにジャンクションパスが設定されたことを確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm  -fields junction-path
vserver            volume                  junction-path
------------------ ----------------------- -------------
snapmirror-dst-svm snapmirror_dst_svm_root /
snapmirror-dst-svm snapmirror_src_volume_dst
                                           /snapmirror
2 entries were displayed.

レプリケーションの確認

それではレプリケーションの確認を行います。

レプリケーション元ボリューム、レプリケーション先ボリュームどちらもAmazon Linux 2のEC2インスタンスにNFSでマウントします。

# 現在のディスクサイズを確認
$ df -h
Filesystem      Size  Used Avail Use% Mounted on
devtmpfs        462M     0  462M   0% /dev
tmpfs           470M     0  470M   0% /dev/shm
tmpfs           470M  452K  470M   1% /run
tmpfs           470M     0  470M   0% /sys/fs/cgroup
/dev/nvme0n1p1  8.0G  1.7G  6.4G  21% /

# マウントポイントの作成
$ sudo mkdir /snapmirror-src
$ sudo mkdir /snapmirror-dst

# マウント
$ sudo mount -t nfs svm-021541d8d3a6b7294.fs-06b3d2e945d454c19.fsx.ap-northeast-1.amazonaws.com:/snapmirror /snapmirror-src/
$ sudo mount -t nfs svm-03f236f055a779ee6.fs-0967312eff2f5f5e1.fsx.ap-northeast-1.amazonaws.com:/snapmirror /snapmirror-dst

# レプリケーション元ボリューム、レプリケーション先ボリュームがNFSでマウントされていることを確認
$ df -hT
Filesystem                                                                              Type      Size  Used Avail Use% Mounted on
devtmpfs                                                                                devtmpfs  462M     0  462M   0% /dev
tmpfs                                                                                   tmpfs     470M     0  470M   0% /dev/shm
tmpfs                                                                                   tmpfs     470M  456K  470M   1% /run
tmpfs                                                                                   tmpfs     470M     0  470M   0% /sys/fs/cgroup
/dev/nvme0n1p1                                                                          xfs       8.0G  1.7G  6.4G  21% /
/dev/mapper/3600a09806c574231752b53784865462f1                                          ext4      2.0G  6.1M  1.8G   1% /lun/part1
/dev/mapper/3600a09806c574231752b537848654672p2                                         ext4      2.9G  9.1M  2.8G   1% /lun/part2
svm-021541d8d3a6b7294.fs-06b3d2e945d454c19.fsx.ap-northeast-1.amazonaws.com:/snapmirror nfs4      973M  384K  973M   1% /snapmirror-src
svm-03f236f055a779ee6.fs-0967312eff2f5f5e1.fsx.ap-northeast-1.amazonaws.com:/snapmirror nfs4      973M  320K  973M   1% /snapmirror-dst

$ mount | grep nfs
sunrpc on /var/lib/nfs/rpc_pipefs type rpc_pipefs (rw,relatime)
svm-021541d8d3a6b7294.fs-06b3d2e945d454c19.fsx.ap-northeast-1.amazonaws.com:/snapmirror on /snapmirror-src type nfs4 (rw,relatime,vers=4.1,rsize=65536,wsize=65536,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=10.0.0.162,local_lock=none,addr=198.19.255.217)
svm-03f236f055a779ee6.fs-0967312eff2f5f5e1.fsx.ap-northeast-1.amazonaws.com:/snapmirror on /snapmirror-dst type nfs4 (rw,relatime,vers=4.1,rsize=65536,wsize=65536,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=10.0.0.162,local_lock=none,addr=10.0.10.139)

レプリケーションされたかを確認するために、レプリケーション元ボリュームをマウントしているディレクトリに空ファイルを作成します。

# レプリケーション元ボリュームをマウントしているディレクトリに空ファイルを作成
$ sudo touch /snapmirror-src/snapmirror_test_$(date +%Y%m%d%H%M%S).txt
$ sudo touch /snapmirror-src/snapmirror_test_$(date +%Y%m%d%H%M%S).txt

# レプリケーション元ボリュームをマウントしているディレクトリとレプリケーション先ボリュームをマウントしているディレクトリ内を確認
$ ls -l /snapmirror-*
/snapmirror-dst:
total 0

/snapmirror-src:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:36 snapmirror_test_20220607023613.txt
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

5分間隔でレプリケーションしているので11:40過ぎに確認すると、レプリケーション元ボリューム内のファイルがレプリケーション先ボリューム内にも表示されました。正しくSnapMirrorでレプリケーションされていそうですね。

# 11:39:30 に各ディレクトリを確認
# このタイミングではまだレプリケーションされていない
$ date; ls -l /snapmirror-*
Tue Jun  7 02:39:30 UTC 2022
/snapmirror-dst:
total 0

/snapmirror-src:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:36 snapmirror_test_20220607023613.txt
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

# 11:40:02 に各ディレクトリを確認
# このタイミングではまだレプリケーションされていない
$ date; ls -l /snapmirror-*
Tue Jun  7 02:40:02 UTC 2022
/snapmirror-dst:
total 0

/snapmirror-src:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:36 snapmirror_test_20220607023613.txt
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

# 11:40:22 に各ディレクトリを確認
# レプリケーションされたことを確認
$ date; ls -l /snapmirror-*
Tue Jun  7 02:40:22 UTC 2022
/snapmirror-dst:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:36 snapmirror_test_20220607023613.txt
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

/snapmirror-src:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:36 snapmirror_test_20220607023613.txt
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

なお、レプリケーション先ボリュームをマウントしているディレクトリには書き込み権限がありません。

# レプリケーション先ボリュームをマウントしているディレクトリに変更を加えようとしても、拒否される
$ sudo rm /snapmirror-dst/snapmirror_test_20220607023613.txt
rm: cannot remove ‘/snapmirror-dst/snapmirror_test_20220607023613.txt’: Read-only file system

$ sudo chown -R ssm-user:ssm-user /snapmirror-dst/
chown: changing ownership of ‘/snapmirror-dst/snapmirror_test_20220607023613.txt’: Read-only file system
chown: changing ownership of ‘/snapmirror-dst/snapmirror_test_20220607023755.txt’: Read-only file system
chown: changing ownership of ‘/snapmirror-dst/’: Read-only file system

# レプリケーション元ボリュームをマウントしているディレクトリでは変更ができる
$ sudo rm /snapmirror-src/snapmirror_test_20220607023613.txt
$ ls -l /snapmirror-*
/snapmirror-dst:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

/snapmirror-src:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

$ sudo chown -R ssm-user:ssm-user /snapmirror-src/
$ ls -ld /snapmirror-src
drwxr-xr-x 2 ssm-user ssm-user 4096 Jun  7 02:45 /snapmirror-src

$ ls -l /snapmirror-src/
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

これはレプリケーション先ボリュームのタイプがDPになっているためです。

DPはデータ保護用ボリュームを示すボリュームタイプで、DPを指定することで読み込み専用ボリュームとなります。通常のSnapMirrorは片方向のレプリケーションです。レプリケーション先ボリュームがDPとなっていることでレプリケーション先ボリュームに変更を加えることを防ぎ、レプリケーションの不整合が起きないようにしています。

また、SnapMirrorは権限周りもレプリケーションしてくれます。

$ touch /snapmirror-src/snapmirror_test_$(date +%Y%m%d%H%M%S).txt

# 11:49:59 に各ディレクトリを確認
# このタイミングではまだレプリケーションされていない
$ date; ls -l /snapmirror-*
Tue Jun  7 02:49:59 UTC 2022
/snapmirror-dst:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

/snapmirror-src:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt

# 11:50:01 に各ディレクトリを確認
# このタイミングではまだレプリケーションされていない
$ date; ls -l /snapmirror-*
Tue Jun  7 02:50:01 UTC 2022
/snapmirror-dst:
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:37 snapmirror_test_20220607023755.txt

/snapmirror-src:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt

# 11:50:05 に各ディレクトリを確認
# レプリケーションされたことを確認
$ date; ls -l /snapmirror-*
Tue Jun  7 02:50:05 UTC 2022
/snapmirror-dst:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt

/snapmirror-src:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt

レプリケーションの停止

SnapMirrorを使ってデータ移行をする場合、最終的どこかのタイミングでレプリケーションを停止し、レプリケーション先で書き込みができるようにする必要があります。

ということでレプリケーションを停止させて、レプリケーション先ボリュームで書き込みできるようにしてあげます。

# SnapMirrorの状態確認
FsxId0967312eff2f5f5e1::> snapmirror show
                                                                       Progress
Source            Destination Mirror  Relationship   Total             Last
Path        Type  Path        State   Status         Progress  Healthy Updated
----------- ---- ------------ ------- -------------- --------- ------- --------
snapmirror-src-svm:snapmirror_src_volume
            XDP  snapmirror-dst-svm:snapmirror_src_volume_dst
                              Snapmirrored
                                      Idle           -         true    -

# 以降のレプリケーションを停止する
FsxId0967312eff2f5f5e1::> snapmirror quiesce -destination-path snapmirror-dst-svm:snapmirror_src_volume_dst
Operation succeeded: snapmirror quiesce for destination "snapmirror-dst-svm:snapmirror_src_volume_dst".

# SnapMirror relationshipのステータスが "Quiesced" になっていることを確認
FsxId0967312eff2f5f5e1::> snapmirror show
                                                                       Progress
Source            Destination Mirror  Relationship   Total             Last
Path        Type  Path        State   Status         Progress  Healthy Updated
----------- ---- ------------ ------- -------------- --------- ------- --------
snapmirror-src-svm:snapmirror_src_volume
            XDP  snapmirror-dst-svm:snapmirror_src_volume_dst
                              Snapmirrored
                                      Quiesced       -         true    -

# SnapMirror relationshipを解除し、レプリケーション先ボリュームを書き込み可能にする
FsxId0967312eff2f5f5e1::> snapmirror break -destination-path snapmirror-dst-svm:snapmirror_src_volume_dst
Operation succeeded: snapmirror break for destination "snapmirror-dst-svm:snapmirror_src_volume_dst".

# SnapMirrorのミラーステータスが "Broken-off" になっていることを確認
FsxId0967312eff2f5f5e1::> snapmirror show
                                                                       Progress
Source            Destination Mirror  Relationship   Total             Last
Path        Type  Path        State   Status         Progress  Healthy Updated
----------- ---- ------------ ------- -------------- --------- ------- --------
snapmirror-src-svm:snapmirror_src_volume
            XDP  snapmirror-dst-svm:snapmirror_src_volume_dst
                              Broken-off
                                      Idle           -         true    -

# レプリケーション先ボリュームのタイプが "RW" になったことを確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm  -fields type
vserver            volume                  type
------------------ ----------------------- ----
snapmirror-dst-svm snapmirror_dst_svm_root RW
snapmirror-dst-svm snapmirror_src_volume_dst
                                           RW
2 entries were displayed.

これにより、レプリケーションされなくなります。

$ touch /snapmirror-src/snapmirror_test_$(date +%Y%m%d%H%M%S).txt

# 11:55:17 に各ディレクトリを確認
# 11:54 に作成した "snapmirror_test_20220607025454.txt" がレプリケーションされていないことを確認
$ date; ls -l /snapmirror-*
Tue Jun  7 02:55:17 UTC 2022
/snapmirror-dst:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt

/snapmirror-src:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:54 snapmirror_test_20220607025454.txt

レプリケーション先ボリュームで変更ができるようになっていることも確認します。

# ファイルの削除
$ rm /snapmirror-dst/snapmirror_test_20220607023755.txt
$ ls -l /snapmirror-dst
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt

# 権限の変更
$ sudo chown root:root /snapmirror-dst/snapmirror_test_20220607024813.txt
$ ls -l /snapmirror-dst
total 0
-rw-r--r-- 1 root root 0 Jun  7 02:48 snapmirror_test_20220607024813.txt

# ファイルの作成
$ touch /snapmirror-dst/snapmirror_test_$(date +%Y%m%d%H%M%S).txt
$ ls -l /snapmirror-dst
total 0
-rw-r--r-- 1 root     root     0 Jun  7 02:48 snapmirror_test_20220607024813.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 03:00 snapmirror_test_20220607030041.txt

再レプリケーション

再レプリケーションしてあげます。

レプリケーション先ボリュームで色々変更処理をしてしまったので、本来であれば一度レプリケーション方向を反転させて、データの不整合がないようにしてあげる必要があります。

今回は横着して、特に何もせずに再レプリケーションします。

# SnapMirrorの状態確認
FsxId0967312eff2f5f5e1::> snapmirror show
                                                                       Progress
Source            Destination Mirror  Relationship   Total             Last
Path        Type  Path        State   Status         Progress  Healthy Updated
----------- ---- ------------ ------- -------------- --------- ------- --------
snapmirror-src-svm:snapmirror_src_volume
            XDP  snapmirror-dst-svm:snapmirror_src_volume_dst
                              Broken-off
                                      Idle           -         false   -

# SnapMirrorの履歴確認
FsxId0967312eff2f5f5e1::> snapmirror show-history

Destination Source                Start       End
Path        Path        Operation Time        Time        Result
----------- ----------- --------- ----------- ----------- -------
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 03:05:00
                                              6/7/2022 03:05:02
                                                          failure
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 03:00:00
                                              6/7/2022 03:00:02
                                                          failure
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:55:00
                                              6/7/2022 02:55:02
                                                          failure
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        break     6/7/2022 02:54:19
                                              6/7/2022 02:54:19
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        quiesce   6/7/2022 02:53:26
                                              6/7/2022 02:53:26
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:50:00
                                              6/7/2022 02:50:05
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:45:00
                                              6/7/2022 02:45:04
                                                          success

Destination Source                Start       End
Path        Path        Operation Time        Time        Result
----------- ----------- --------- ----------- ----------- -------
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:40:00
                                              6/7/2022 02:40:05
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:35:00
                                              6/7/2022 02:35:04
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:30:00
                                              6/7/2022 02:30:05
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:25:00
                                              6/7/2022 02:25:04
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:20:00
                                              6/7/2022 02:20:05
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:15:00
                                              6/7/2022 02:15:05
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:10:00
                                              6/7/2022 02:10:05
                                                          success

Destination Source                Start       End
Path        Path        Operation Time        Time        Result
----------- ----------- --------- ----------- ----------- -------
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:05:00
                                              6/7/2022 02:05:07
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:00:00
                                              6/7/2022 02:00:04
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 01:55:00
                                              6/7/2022 01:55:04
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        initialize
                                  1/1/1970 00:00:00
                                              6/7/2022 01:51:32
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        create    6/7/2022 01:51:30
                                              6/7/2022 01:51:30
                                                          success
19 entries were displayed.

# SnapMirror relationshipを再確立
# レプリケーション先ボリュームにあってレプリケーション元ボリュームにないデータが削除されることを確認
FsxId0967312eff2f5f5e1::> snapmirror resync -destination-path snapmirror-dst-svm:snapmirror_src_volume_dst -source-path snapmirror-src-svm:snapmirror_src_volume

Warning: All data newer than Snapshot copy snapmirror.a8b5b982-e5ff-11ec-9b85-43462316743d_2161319955.2022-06-07_025000 on volume snapmirror-dst-svm:snapmirror_src_volume_dst will be deleted.
Do you want to continue? {y|n}: y
Operation is queued: initiate snapmirror resync to destination "snapmirror-dst-svm:snapmirror_src_volume_dst".

# SnapMirrorのミラーステータスが "Snapmirrored" になっていることを確認
FsxId0967312eff2f5f5e1::> snapmirror show
                                                                       Progress
Source            Destination Mirror  Relationship   Total             Last
Path        Type  Path        State   Status         Progress  Healthy Updated
----------- ---- ------------ ------- -------------- --------- ------- --------
snapmirror-src-svm:snapmirror_src_volume
            XDP  snapmirror-dst-svm:snapmirror_src_volume_dst
                              Snapmirrored
                                      Idle           -         true    -

# 再レプリケーションされたことを確認
FsxId0967312eff2f5f5e1::> snapmirror show-history

Destination Source                Start       End
Path        Path        Operation Time        Time        Result
----------- ----------- --------- ----------- ----------- -------
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        resync    6/7/2022 03:12:56
                                              6/7/2022 03:13:00
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 03:10:00
                                              6/7/2022 03:10:03
                                                          failure
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 03:05:00
                                              6/7/2022 03:05:02
                                                          failure
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 03:00:00
                                              6/7/2022 03:00:02
                                                          failure
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        scheduled-update
                                  6/7/2022 02:55:00
                                              6/7/2022 02:55:02
                                                          failure
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        break     6/7/2022 02:54:19
                                              6/7/2022 02:54:19
                                                          success
snapmirror-dst-svm:snapmirror_src_volume_dst
            snapmirror-src-svm:snapmirror_src_volume
                        quiesce   6/7/2022 02:53:26
                                              6/7/2022 02:53:26
                                                          success
Press <space> to page down, <return> for next line, or 'q' to quit... q
7 entries were displayed.

# レプリケーション先ボリュームのタイプが "DP" になっていることを確認
FsxId0967312eff2f5f5e1::> volume show -vserver snapmirror-dst-svm  -fields type
vserver            volume                  type
------------------ ----------------------- ----
snapmirror-dst-svm snapmirror_dst_svm_root RW
snapmirror-dst-svm snapmirror_src_volume_dst
                                           DP
2 entries were displayed.

EC2インスタンスから各ディレクトリを確認すると、ディレクトリ内のファイルが一致しており、確かに再レプリケーションされたことが分かりました。

# ディレクトリ内のファイルが一致していることを確認
$ ls -l /snapmirror-*
/snapmirror-dst:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:54 snapmirror_test_20220607025454.txt

/snapmirror-src:
total 0
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:37 snapmirror_test_20220607023755.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:48 snapmirror_test_20220607024813.txt
-rw-r--r-- 1 ssm-user ssm-user 0 Jun  7 02:54 snapmirror_test_20220607025454.txt

SnapMirrorはいいぞ

FSx for ONTAPのボリュームをSnapMirrorでレプリケーションしてみました。

今までオンプレミス環境でNetApp ONTAPを使っている方はSnapMirrorを使うことでかなり移行が楽になるのではないでしょうか。

Q: オンプレミスから Amazon FSx for NetApp ONTAP にデータを移行するにはどうすればよいですか?

A: 現在 NetApp ONTAP 上に構築されたファイルストレージを使用している場合は、NetApp SnapMirror を使用して、AWS Direct Connect または VPN を介してデータと設定を Amazon FSx for NetApp ONTAP にすばやく効率的にコピーできます。NetApp 以外のファイルシステムから移行する場合は、標準のコピーツール (rsync、Robocopy など) または NetApp CloudSync を使用して、データを FSx for ONTAP に移行できます。

NetApp ONTAP ファイルシステム管理リソース – Amazon Web Services

もちろん、移行用途だけでなくDRとしても使えるので、マルチリージョンでデータを保護したい場合は積極的に活用していきたいですね。

Q: ファイルシステム内のデータのクロスリージョンレプリケーションを設定するにはどうすればよいですか?

A: Amazon FSx for NetApp ONTAP は、2 つの ONTAP ファイルシステム間でデータをレプリケートするために使用できるレプリケーションテクノロジーである NetApp SnapMirror をサポートしています。別の AWS リージョンのファイルシステムを含む、別の Amazon FSx for NetApp ONTAP ファイルシステムへのデータの自動 NetApp SnapMirror レプリケーションを設定できます。必要に応じて、アプリケーションとユーザーをフェイルオーバーして、他の Amazon FSx for NetApp ONTAP ファイルシステムを使用できます。SnapMirror では、最短 5 分の目標復旧時点 (RPO) と 1 桁の分単位の目標復旧時間 (RTO) でレプリケーションを設定できます。SnapMirror は、ONTAP CLI または REST API を使用して設定できます。

NetApp ONTAP ファイルシステム管理リソース – Amazon Web Services

少し古い情報(ONTAP 8.3)ですが、SnapMirrorの管理コマンドは以下にまとまっています。気になる方はご参考ください。

また、「そもそもSnapMirror何も分からん」という方は、以下動画が非常に分かりやすかったので、ご参照ください。

SnapMirrorのベストプラクティスは以下NetAppのドキュメントをご覧ください。

この記事が誰かの助けになれば幸いです。

以上、AWS事業本部 コンサルティング部の のんピ(@non____97)でした!
