CloudFormationを使ってAPI GatewayとEC2でREST APIを構築してみる

API GatewayとEC2でREST APIを構築する機会があったので、 CloudFormationで環境を構築しました。 その際に作成したCloudFormationテンプレートを紹介します。
2020.11.13

API GatewayとEC2でREST APIを構築する機会があったので、 CloudFormationで環境を構築しました。

その際に作成したCloudFormationテンプレートを紹介します。

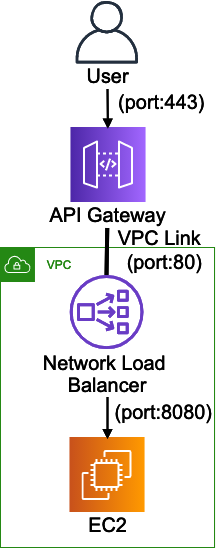

構成図

構成は次の図のような感じです。

API GatewayとEC2のつなぎこみは、API Gateway VPC Integrationを利用することで可能です。

詳しくは次の弊社ブログを御覧ください。

CloudFormationのテンプレート作成

次のyamlを template.yml として作成します。

template.yml

---
AWSTemplateFormatVersion: '2010-09-09'
Description: "API Gateway EC2 Template"

Parameters:
  SsmParameterValueawsserviceamiamazonlinuxlatestamzn2:
    Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>
    Default: "/aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-ebs"
  CidrPrefix:
    Type: String
    Description: "(Example: 10.35)"
    Default: 10.35
  InstanceType:
    Type: String
    Default: t3a.medium

Resources:
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Sub '${CidrPrefix}.0.0/16'
      EnableDnsHostnames: true
      EnableDnsSupport: true
      InstanceTenancy: default
      Tags:
        - Key: Name
          Value: !Sub '${AWS::StackName}-vpc'
  VPCPublicSubnetSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Sub '${CidrPrefix}.0.0/24'
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 0
        - Fn::GetAZs: !Ref 'AWS::Region'
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name`
          Value: !Sub '${AWS::StackName}-public-subnet1'
  VPCPublicSubnetSubnet1RouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub '${AWS::StackName}-public-subnet1-routetable'
  VPCPublicSubnetSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref VPCPublicSubnetSubnet1RouteTable
      SubnetId: !Ref VPCPublicSubnetSubnet1
  VPCPublicSubnetSubnet1DefaultRoute:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref VPCPublicSubnetSubnet1RouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref VPCIGW
    DependsOn:
      - VPCGW
  VPCPublicSubnetSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Sub '${CidrPrefix}.1.0/24'
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 1
        - Fn::GetAZs: !Ref 'AWS::Region'
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name`
          Value: !Sub '${AWS::StackName}-public-subnet2'
  VPCPublicSubnetSubnet2RouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub '${AWS::StackName}-public-subnet2-routetable'
  VPCPublicSubnetSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId:
        Ref: VPCPublicSubnetSubnet2RouteTable
      SubnetId: !Ref VPCPublicSubnetSubnet2
  VPCPublicSubnetSubnet2DefaultRoute:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref VPCPublicSubnetSubnet2RouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref VPCIGW
    DependsOn:
      - VPCGW
  VPCIGW:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: !Sub '${AWS::StackName}-igw'
    Metadata:
      aws:cdk:path: ApiEc22Stack/VPC/IGW
  VPCGW:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref VPCIGW
  Ec2Sg:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: !Sub '${AWS::StackName}-ec2-sg'
      GroupName: !Sub '${AWS::StackName}-ec2-sg'
      SecurityGroupEgress:
        - CidrIp: 0.0.0.0/0
          Description: Allow all outbound traffic by default
          IpProtocol: "-1"
      SecurityGroupIngress:
        - CidrIp: !Sub '${CidrPrefix}.0.0/16'
          Description: Allow VPC inbound traffic
          IpProtocol: tcp
          FromPort: 8080
          ToPort: 8080
      VpcId: !Ref VPC
  IamRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Statement:
          - Action: sts:AssumeRole
            Effect: Allow
            Principal:
              Service: ec2.amazonaws.com
        Version: '2012-10-17'
      ManagedPolicyArns:
        - !Sub 'arn:${AWS::Partition}:iam::aws:policy/AmazonSSMManagedInstanceCore'
      RoleName: !Sub '${AWS::StackName}-ec2-role'
  Ec2InstanceProfile:
    Type: AWS::IAM::InstanceProfile
    Properties:
      Roles:
        - !Ref IamRole
  Ec2Instance:
    Type: AWS::EC2::Instance
    Properties:
      AvailabilityZone: !Select
        - 0
        - Fn::GetAZs: !Ref 'AWS::Region'
      IamInstanceProfile: !Ref Ec2InstanceProfile
      ImageId: !Ref SsmParameterValueawsserviceamiamazonlinuxlatestamzn2
      InstanceType: !Ref InstanceType
      SecurityGroupIds:
        - !GetAtt Ec2Sg.GroupId
      SubnetId: !Ref VPCPublicSubnetSubnet1
      Tags:
        - Key: Name
          Value: !Sub '${AWS::StackName}-ec2'
      UserData:
        Fn::Base64: |
          #!/bin/sh -ex

          yum update -y
          yum install git docker -y
          service docker start
          systemctl enable docker.service
          usermod -a -G docker ec2-user
          sudo -u ec2-user docker run -d -p 8080:80 httpd
    DependsOn:
      - IamRole
  NetworkLoadBalancer:
    Type: AWS::ElasticLoadBalancingV2::LoadBalancer
    Properties:
      LoadBalancerAttributes:
        - Key: deletion_protection.enabled
          Value: 'false'
      Name: !Sub '${AWS::StackName}-nlb'
      Scheme: internal
      Subnets:
        - !Ref VPCPublicSubnetSubnet1
        - !Ref VPCPublicSubnetSubnet2
      Type: network
  NetworkListner:
    Type: AWS::ElasticLoadBalancingV2::Listener
    Properties:
      DefaultActions:
        - TargetGroupArn:
            Ref: NetworkListnerTargetGroup
          Type: forward
      LoadBalancerArn: !Ref NetworkLoadBalancer
      Port: 80
      Protocol: TCP
  NetworkListnerTargetGroup:
    Type: AWS::ElasticLoadBalancingV2::TargetGroup
    Properties:
      Name: !Sub '${AWS::StackName}-tg'
      Port: 8080
      Protocol: TCP
      Targets:
        - Id: !Ref Ec2Instance
      TargetType: instance
      VpcId: !Ref VPC
  RestAPI:
    Type: AWS::ApiGateway::RestApi
    Properties:
      Description: !Sub '${AWS::StackName}-apigw'
      Name: !Sub '${AWS::StackName}-apigw'
  RestAPIDeployment:
    Type: AWS::ApiGateway::Deployment
    Properties:
      RestApiId: !Ref RestAPI
      Description: Automatically created by the RestApi construct
    DependsOn:
      - RestAPIproxyGET
      - RestAPIproxy
  RestAPIDeploymentStageprod:
    Type: AWS::ApiGateway::Stage
    Properties:
      RestApiId: !Ref RestAPI
      DeploymentId: !Ref RestAPIDeployment
      StageName: prod
  RestAPIproxy:
    Type: AWS::ApiGateway::Resource
    Properties:
      ParentId: !GetAtt RestAPI.RootResourceId
      PathPart: "{proxy+}"
      RestApiId: !Ref RestAPI
  RestAPIproxyGET:
    Type: AWS::ApiGateway::Method
    Properties:
      HttpMethod: GET
      ResourceId: !Ref RestAPIproxy
      RestApiId: !Ref RestAPI
      AuthorizationType: NONE
      Integration:
        ConnectionId: !Ref VpcLink
        ConnectionType: VPC_LINK
        IntegrationHttpMethod: GET
        Type: HTTP_PROXY
        Uri: !Sub
          - 'http://${dnsname}'
          - {
              dnsname: !GetAtt NetworkLoadBalancer.DNSName
            }
  VpcLink:
    Type: AWS::ApiGateway::VpcLink
    Properties:
      Name: !Sub '${AWS::StackName}-vpclink'
      TargetArns:
        - !Ref NetworkLoadBalancer

Outputs:
  RestAPIEndpoint:
    Value: !Sub 'https://${RestAPI}.execute-api.${AWS::Region}.${AWS::URLSuffix}/${RestAPIDeploymentStageprod}/index.html'

Outputs でRestAPIのエンドポイントを出力しています。

次のコマンドでデプロイします。

$ aws cloudformation create-stack \
  --template-body file://./template.yml \
  --capabilities CAPABILITY_NAMED_IAM \
  --stack-name ApiEc2Stack

EC2でhttpdを起動する

API Gatewayから流れてきたリクエストに対して何らかのレスポンスを返すようにhttpdを起動しておきます。

前述のCloudFormationで環境を構築していれば、EC2のUserDataに次のようなdockerのインストールと起動コマンドを書いているので特に何もしなくても起動した状態になっています。

yum install git docker -y
service docker start
systemctl enable docker.service
usermod -a -G docker ec2-user
sudo -u ec2-user docker run -d -p 8080:80 httpd

動作確認する

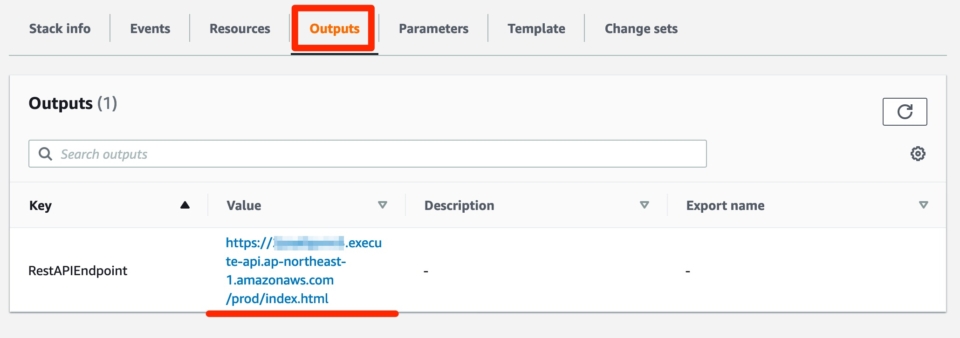

CloudFormationのOutputsにAPI Gatewayのエンドポイントが出力されているので、それを参照してURLへアクセスします。

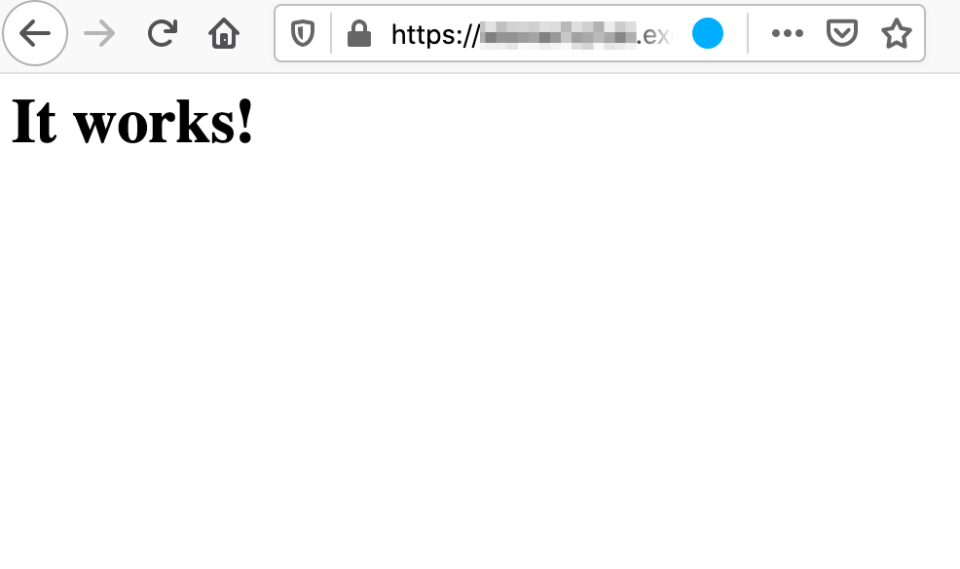

URLへアクセスすると画面が表示されて、API Gatewayを通してEC2からのレスポンスを受け取れていることが確認できました。

終わりに

CloudFormationを利用して、EC2を利用したREST APIを構築することができました。

API GatewayとEC2でREST APIの構築を検討していて、とりあえず動くものをサクッと試したい時にこのCFnテンプレートが使えると思います。
