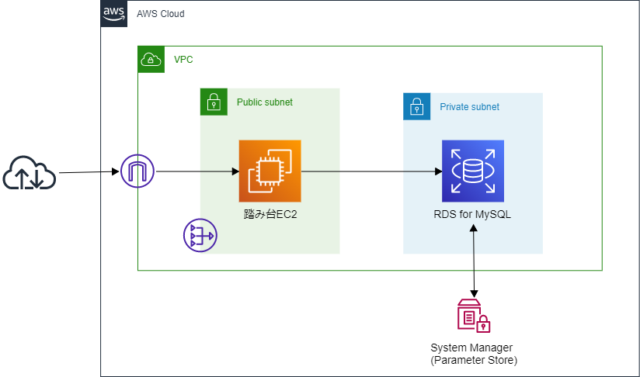

TerraformでDB接続情報を既存のパラメータストアから参照してRDSを作成してみる

main.tf

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 4.23.0"
    }
  }
}

provider "aws" {
  region = "ap-northeast-1"
}

data "aws_caller_identity" "current" {}

locals {
  account_id = data.aws_caller_identity.current.account_id
}

data "aws_ssm_parameter" "rds_username" {
  name = "/rds/mysql/username"
}

data "aws_ssm_parameter" "rds_password" {
  name = "/rds/mysql/password"
  with_decryption = true
}

data aws_ssm_parameter amzn2_ami {
  name = "/aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2"
}

# VPCを作成
resource "aws_vpc" "my_vpc" {
  cidr_block = "10.0.0.0/16"
  enable_dns_hostnames = true

  tags = {
    Name = "my-vpc"
  }
}

# パブリックサブネットを作成
resource "aws_subnet" "my_subnet1" {
  vpc_id            = aws_vpc.my_vpc.id
  cidr_block        = "10.0.1.0/24"
  availability_zone = "ap-northeast-1a"

  tags = {
    Name = "my-pub-subnet1"
  }
}

# プライベートサブネットを作成
resource "aws_subnet" "my_subnet2" {
  vpc_id            = aws_vpc.my_vpc.id
  cidr_block        = "10.0.2.0/24"
  availability_zone = "ap-northeast-1c"

  tags = {
    Name = "my-pri-subnet2"
  }
}

# インターネットゲートウェイを作成
resource "aws_internet_gateway" "my_igw" {
  vpc_id = aws_vpc.my_vpc.id

  tags = {
    Name = "my-igw"
  }
}

# パブリックサブネットにルートテーブルを作成
resource "aws_route_table" "public_rt" {
  vpc_id = aws_vpc.my_vpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.my_igw.id
  }

  tags = {
    Name = "public-route-table"
  }
}

# パブリックサブネットにルートテーブルを関連付ける
resource "aws_route_table_association" "public_rta" {
  subnet_id      = aws_subnet.my_subnet1.id
  route_table_id = aws_route_table.public_rt.id
}

# プライベートサブネットにルートテーブルを作成
resource "aws_route_table" "private_rt" {
  vpc_id = aws_vpc.my_vpc.id

  tags = {
    Name = "private-route-table"
  }
}

# プライベートサブネットにNATゲートウェイを経由するルートテーブルを関連付ける
resource "aws_route" "private_route" {
  route_table_id         = aws_route_table.private_rt.id
  destination_cidr_block = "0.0.0.0/0"
  nat_gateway_id         = aws_nat_gateway.my_nat_gateway.id
}

resource "aws_route_table_association" "private_rta" {
  subnet_id      = aws_subnet.my_subnet2.id
  route_table_id = aws_route_table.private_rt.id
}

# NATゲートウェイを作成
resource "aws_nat_gateway" "my_nat_gateway" {
  allocation_id = aws_eip.my_eip.id
  subnet_id     = aws_subnet.my_subnet1.id

  tags = {
    Name = "my-nat-gateway"
  }
}

# Elastic IPを作成
resource "aws_eip" "my_eip" {
  vpc = true

  tags = {
    Name = "my-eip"
  }
}

# IAMロール作成
resource "aws_iam_role" "ssm" {
  name = "ssm-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Effect = "Allow"
        Principal = {
          Service = "ec2.amazonaws.com"
        }
        Action = "sts:AssumeRole"
      }
    ]
  })

  tags = {
    Name = "ssm-role"
  }
}

resource "aws_iam_role_policy_attachment" "ssm" {
  policy_arn = "arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore"
  role       = aws_iam_role.ssm.name
}

# IAMポリシー作成
resource "aws_iam_policy" "ssm-param-access" {
  name        = "ssm-access-policy"
  policy      = jsonencode({
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "ssm:DescribeParameters"
            ],
            "Resource": "*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "ssm:GetParameters"
            ],
            "Resource": "arn:aws:ssm:ap-northeast-1:${local.account_id}:parameter/rds/mysql/*"
        }
    ]
  })

  tags = {
    Name = "ssm-access-policy"
  }
}

resource "aws_iam_role_policy_attachment" "ssm-param-access" {
  policy_arn = aws_iam_policy.ssm-param-access.arn
  role      = aws_iam_role.ssm.name
}


# 踏み台用のEC2をパブリックサブネットに作成
resource "aws_instance" "bastion" {
  ami           = data.aws_ssm_parameter.amzn2_ami.value
  instance_type = "t2.micro"
  subnet_id     = aws_subnet.my_subnet1.id
  vpc_security_group_ids = [aws_security_group.bastion_sg.id]
  iam_instance_profile  = aws_iam_instance_profile.ssm.name
  associate_public_ip_address = true
  user_data = <<-EOF
  #!/bin/bash
  yum update -y
  yum install -y mysql
  yum install -y https://s3.amazonaws.com/ec2-downloads-windows/SSMAgent/latest/linux_amd64/amazon-ssm-agent.rpm
  systemctl enable amazon-ssm-agent
  systemctl start amazon-ssm-agent
  EOF

  tags = {
    Name = "bastion"
  }
}

# インスタンスプロファイルを定義
resource "aws_iam_instance_profile" "ssm" {
  name = "ssm-instance-profile"
  role = aws_iam_role.ssm.name
}

# 踏み台用セキュリティグループを作成
resource "aws_security_group" "bastion_sg" {
  name_prefix = "bastion-sg-"
  vpc_id      = aws_vpc.my_vpc.id

  ingress {
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    from_port       = 0
    to_port         = 0
    protocol        = "-1"
    cidr_blocks     = ["0.0.0.0/0"]
  }

  tags = {
    Name = "bastion-sg"
  }
}

# データベースセキュリティグループを作成
resource "aws_security_group" "db_sg" {
  name_prefix = "db-sg-"
  vpc_id      = aws_vpc.my_vpc.id

  ingress {
    from_port   = 3306
    to_port     = 3306
    protocol    = "tcp"
    security_groups = [
      aws_security_group.bastion_sg.id,
    ]
  }

  egress {
    from_port       = 0
    to_port         = 0
    protocol        = "-1"
    cidr_blocks     = ["0.0.0.0/0"]
  }

  tags = {
    Name = "db"
  }
}

# サブネットグループの作成
resource "aws_db_subnet_group" "rds_subnet_group" {
  name        = "rds_subnet_group"
  subnet_ids  = [aws_subnet.my_subnet1.id, aws_subnet.my_subnet2.id]
}

# RDS MySQLを作成
resource "aws_db_instance" "rds_instance" {
  identifier            = "myrds"
  db_name		= "myrdsinstance"
  engine                = "mysql"
  engine_version        = "5.7"
  instance_class        = "db.t2.micro"
  username              = data.aws_ssm_parameter.rds_username.value
  password              = data.aws_ssm_parameter.rds_password.value
  allocated_storage     = 10
  storage_type          = "gp2"
  backup_retention_period = 7
  db_subnet_group_name  = aws_db_subnet_group.rds_subnet_group.name
  vpc_security_group_ids = [aws_security_group.db_sg.id]
  skip_final_snapshot	= true
}
