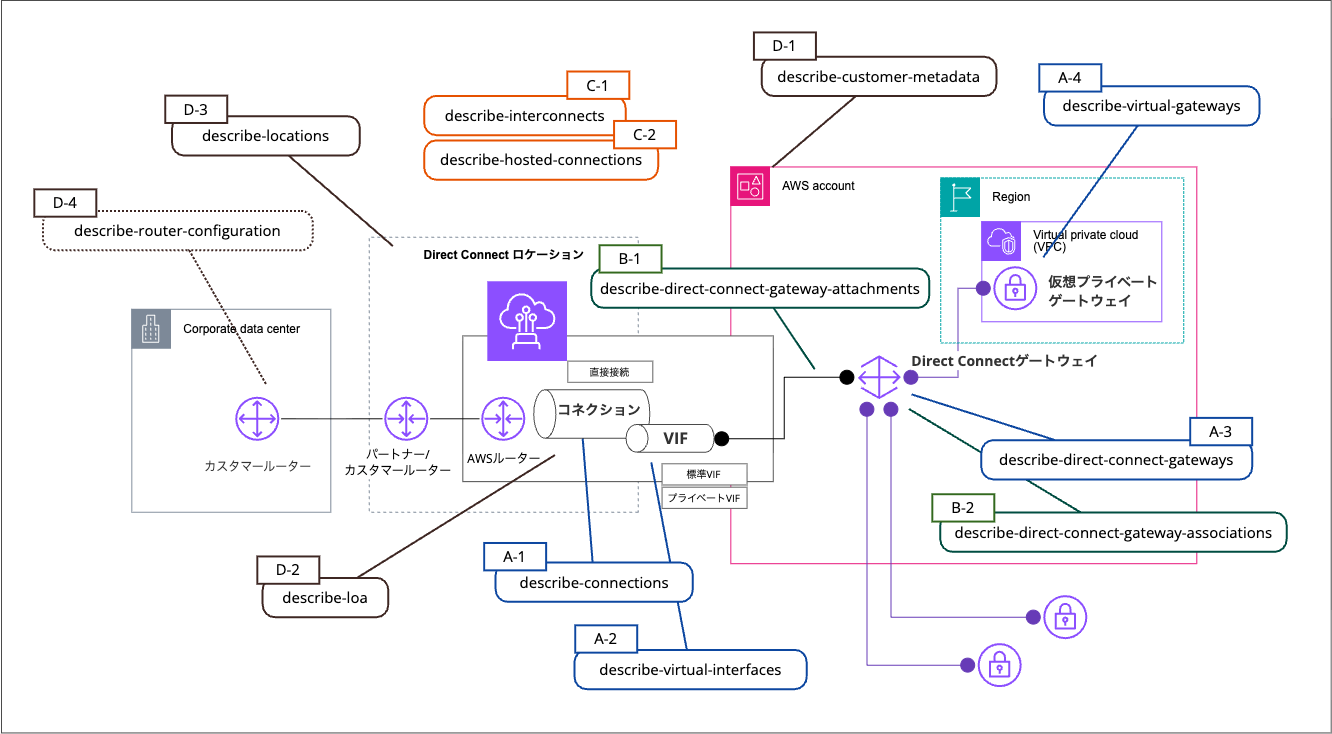

AWS Direct Connectの各種リソースをAWS CLIでDescribeしてみた

$ aws --version
aws-cli/2.15.61 Python/3.11.8 Darwin/23.6.0 exe/x86_64

$ aws directconnect describe-connections
{
    "connections": [
        {
            "ownerAccount": "123456789101",
            "connectionId": "dxcon-abcd123",
            "connectionName": "sample-connect",
            "connectionState": "available",
            "region": "ap-northeast-1",
            "location": "EqTY2",
            "bandwidth": "1Gbps",
            "loaIssueTime": "2019-01-07T08:35:45+09:00",
            "awsDevice": "EqTY2-aaaaaaaaaaaaa",
            "jumboFrameCapable": true,
            "awsDeviceV2": "EqTY2-123bbbbzzzzzz",
            "awsLogicalDeviceId": "EqTY2-123bbbbzzzzzz",
            "hasLogicalRedundancy": "no",
            "tags": [],
            "macSecCapable": false
        }
    ]
}

$ aws directconnect describe-virtual-interfaces
{
    "virtualInterfaces": [
        {
            "ownerAccount": "123456789101",
            "virtualInterfaceId": "dxvif-123aaaaa",
            "location": "EqTY2",
            "connectionId": "dxcon-abcd123",
            "virtualInterfaceType": "private",
            "virtualInterfaceName": "sample-vif01",
            "vlan": 96,
            "asn": 65000,
            "amazonSideAsn": 65001,
            "authKey": "examplekey11examplekey11",
            "amazonAddress": "169.254.252.1/30",
            "customerAddress": "169.254.252.2/30",
            "addressFamily": "ipv4",
            "virtualInterfaceState": "available",

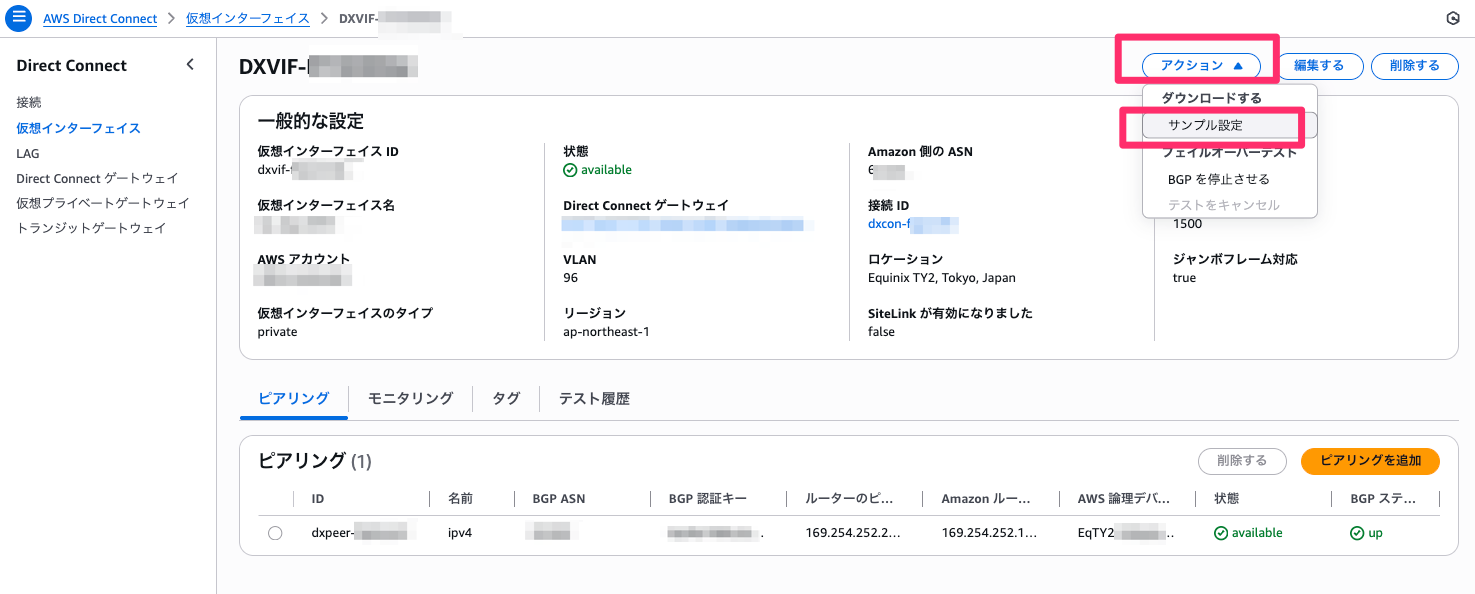

            "customerRouterConfig": "<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n<logical_connection id=\"dxvif-123aaaaa\">\n  <vlan>96</vlan>\n  <customer_address>169.254.252.2/30</customer_address>\n  <amazon_address>169.254.252.1/30</amazon_address>\n  <bgp_asn>65000</bgp_asn>\n  <bgp_auth_key>examplekey11examplekey11</bgp_auth_key>\n  <amazon_bgp_asn>65001</amazon_bgp_asn>\n  <connection_type>private</connection_type>\n</logical_connection>\n",
            "mtu": 1500,
            "jumboFrameCapable": true,
            "virtualGatewayId": "",
            "directConnectGatewayId": "abcde123-aaaa-bbbb-abcdefabcde11",
            "routeFilterPrefixes": [],
            "bgpPeers": [
                {
                    "bgpPeerId": "dxpeer-aaa11bbb",
                    "asn": 65000,
                    "authKey": "examplekey11examplekey11",
                    "addressFamily": "ipv4",
                    "amazonAddress": "169.254.252.1/30",
                    "customerAddress": "169.254.252.2/30",
                    "bgpPeerState": "available",
                    "bgpStatus": "up",
                    "awsDeviceV2": "EqTY2-123bbbbzzzzzz",
                    "awsLogicalDeviceId": "EqTY2-123bbbbzzzzzz"
                }
            ],
            "region": "ap-northeast-1",
            "awsDeviceV2": "EqTY2-123bbbbzzzzzz",
            "awsLogicalDeviceId": "EqTY2-123bbbbzzzzzz",
            "tags": [],
            "siteLinkEnabled": false
        }
    ]
}

$ aws directconnect describe-direct-connect-gateways
{
    "directConnectGateways": [
        {
            "directConnectGatewayId": "abcde123-aaaa-bbbb-abcdefabcde11",
            "directConnectGatewayName": "sample-dgw",
            "amazonSideAsn": 65001,
            "ownerAccount": "123456789101",
            "directConnectGatewayState": "available"
        }
    ]
}

$ aws directconnect describe-virtual-gateways
{
    "virtualGateways": [
        {
            "virtualGatewayId": "vgw-abcde12345678abcde",
            "virtualGatewayState": "available"
        }
    ]
}

$ aws ec2 describe-vpn-gateways
{
    "VpnGateways": [
        {
            "State": "available",
            "Type": "ipsec.1",
            "VpcAttachments": [
                {
                    "State": "attached",
                    "VpcId": "vpc-aaaabbbb"
                }
            ],
            "VpnGatewayId": "vgw-abcde12345678abcde",
            "AmazonSideAsn": 65001,
            "Tags": [
                {
                    "Key": "Name",
                    "Value": "sample-vgw"
                }
            ]
        }
    ]
}

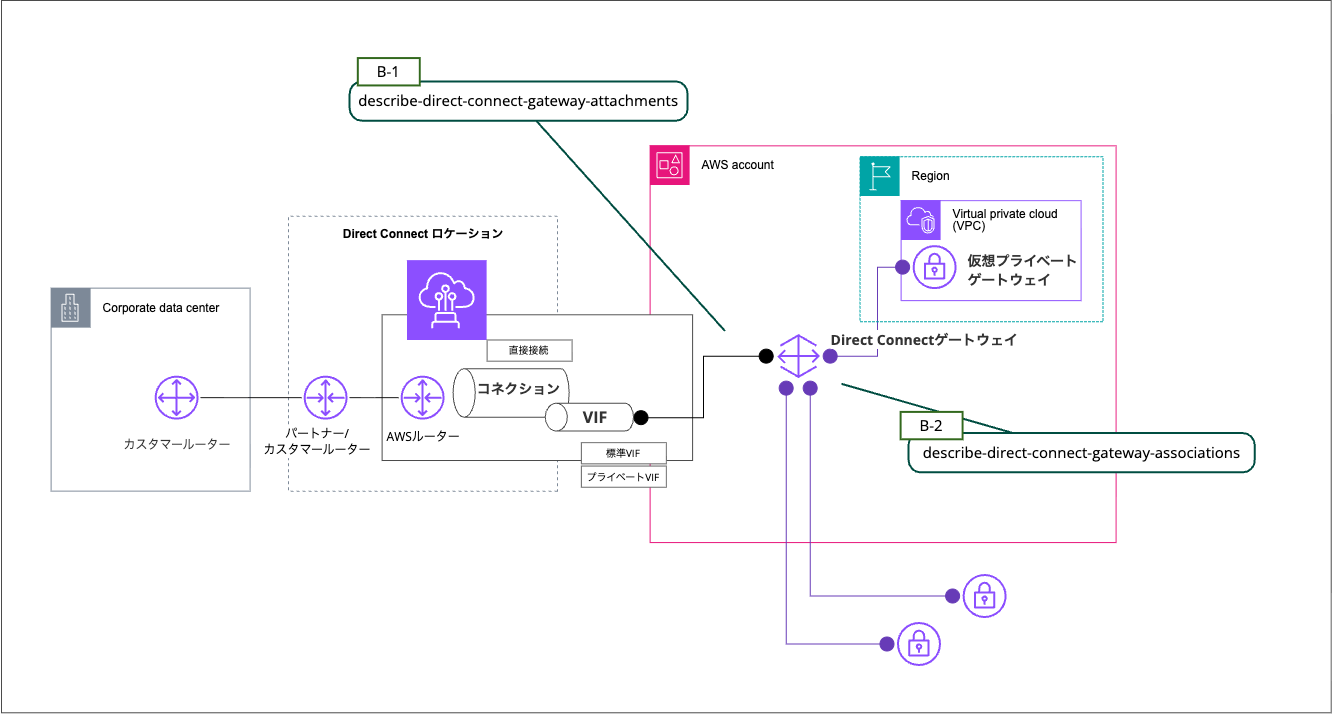

$ aws directconnect describe-direct-connect-gateway-attachments

An error occurred (DirectConnectClientException) when calling the DescribeDirectConnectGatewayAttachments operation: Either a Direct Connect Gateway ID or Virtual Interface ID must be set

$ aws directconnect describe-direct-connect-gateway-attachments \
  --direct-connect-gateway-id abcde123-aaaa-bbbb-abcdefabcde11
{
    "directConnectGatewayAttachments": [
        {
            "directConnectGatewayId": "abcde123-aaaa-bbbb-abcdefabcde11",
            "virtualInterfaceId": "dxvif-123aaaaa",
            "virtualInterfaceRegion": "ap-northeast-1",
            "virtualInterfaceOwnerAccount": "123456789101",
            "attachmentState": "attached",
            "attachmentType": "privateVirtualInterface"
        }
    ]
}

$ aws directconnect describe-direct-connect-gateway-associations \
  --direct-connect-gateway-id abcde123-aaaa-bbbb-abcdefabcde11
{
    "directConnectGatewayAssociations": [
        {
            "directConnectGatewayId": "abcde123-aaaa-bbbb-abcdefabcde11",
            "directConnectGatewayOwnerAccount": "123456789101",
            "associationState": "associated",
            "associatedGateway": {
                "id": "vgw-aaaaaaaabbbbbbbcc",
                "type": "virtualPrivateGateway",
                "ownerAccount": "987654321012",
                "region": "ap-northeast-1"
            },
            "associationId": "sample-uuid-1234-5678-9abc-def012345678",
            "allowedPrefixesToDirectConnectGateway": [
                {
                    "cidr": "192.168.100.0/24"
                }
            ],
            "virtualGatewayId": "vgw-aaaaaaaabbbbbbbcc",
            "virtualGatewayRegion": "ap-northeast-1",
            "virtualGatewayOwnerAccount": "987654321012"
        },
        {
            "directConnectGatewayId": "abcde123-aaaa-bbbb-abcdefabcde11",
            "directConnectGatewayOwnerAccount": "123456789101",
            "associationState": "associated",
            "associatedGateway": {
                "id": "vgw-abcde12345678abcde",
                "type": "virtualPrivateGateway",
                "ownerAccount": "123456789101",
                "region": "ap-northeast-1"
            },
            "associationId": "example-guid-abcd-efgh-ijkl-mnopqrstuvwx",
            "allowedPrefixesToDirectConnectGateway": [
                {
                    "cidr": "192.168.110.0/24"
                }
            ],
            "virtualGatewayId": "vgw-abcde12345678abcde",
            "virtualGatewayRegion": "ap-northeast-1",
            "virtualGatewayOwnerAccount": "123456789101"
        },
        {
            "directConnectGatewayId": "abcde123-aaaa-bbbb-abcdefabcde11",
            "directConnectGatewayOwnerAccount": "123456789101",
            "associationState": "associated",
            "associatedGateway": {
                "id": "vgw-ccccddddeeeeffffa",
                "type": "virtualPrivateGateway",
                "ownerAccount": "999999999999",
                "region": "ap-northeast-3"
            },
            "associationId": "dummy-id-9999-8888-7777-666655554444",
            "allowedPrefixesToDirectConnectGateway": [
                {
                    "cidr": "192.168.120.0/24"
                }
            ],
            "virtualGatewayId": "vgw-ccccddddeeeeffffa",
            "virtualGatewayRegion": "ap-northeast-3",
            "virtualGatewayOwnerAccount": "999999999999"
        }
    ]
}

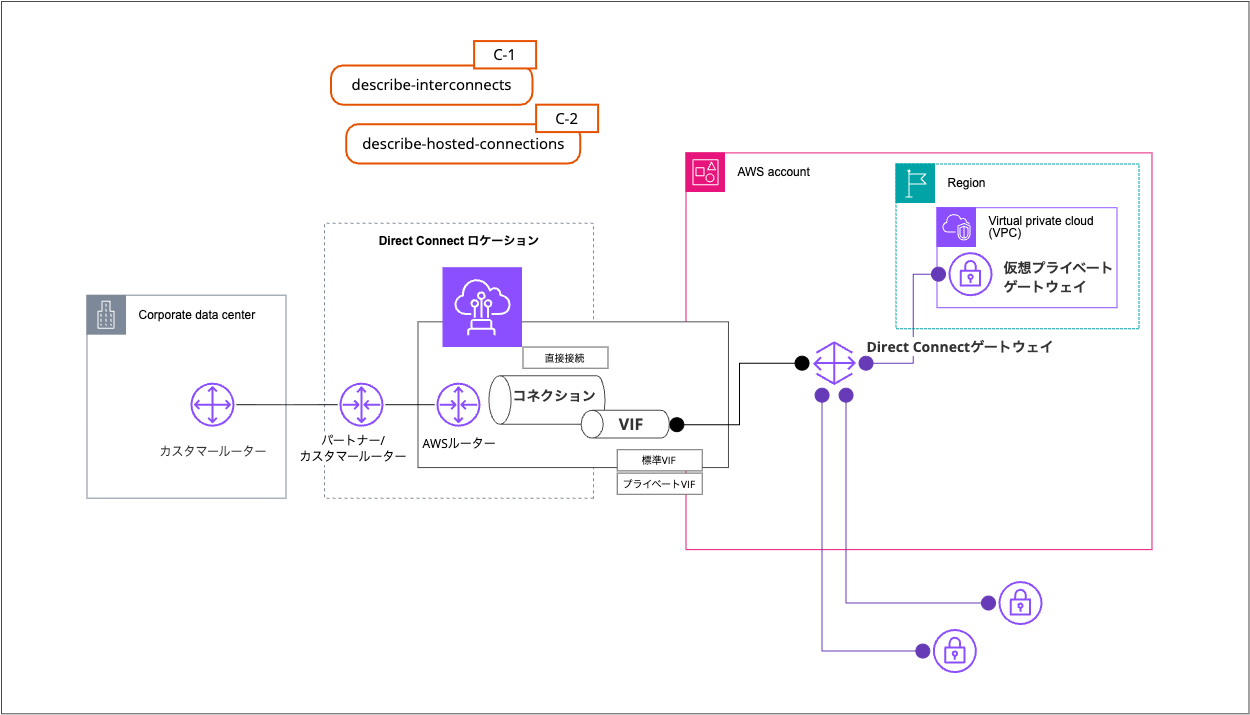

$ aws directconnect describe-interconnects

An error occurred (DirectConnectClientException) when calling the DescribeInterconnects operation: Account 123456789101 is not an authorized Direct Connect partner in ap-northeast-1.

$ aws directconnect describe-hosted-connections \
  --connection-id aaa

An error occurred (DirectConnectClientException) when calling the DescribeHostedConnections operation: Account 123456789101 is not an authorized Direct Connect partner in ap-northeast-1.

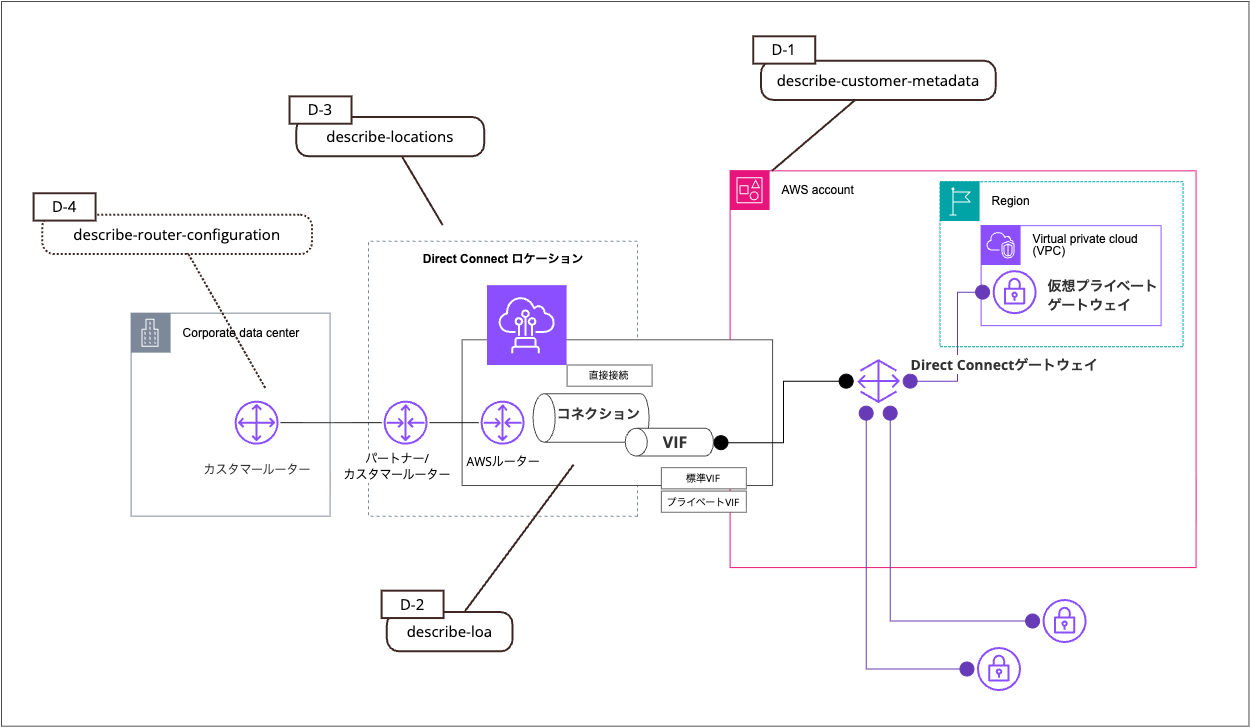

$ aws directconnect describe-customer-metadata
{
    "agreements": [
        {
            "agreementName": "DirectConnectGatewayInChina.V1",
            "status": "unsigned"
        }
    ],
    "nniPartnerType": "nonPartner"
}

$ aws directconnect describe-loa \
  --connection-id dxcon-abcd123
{
    "loaContent": "XXXXXRU9GCg==.....以下数万文字",
    "loaContentType": "application/pdf"
}

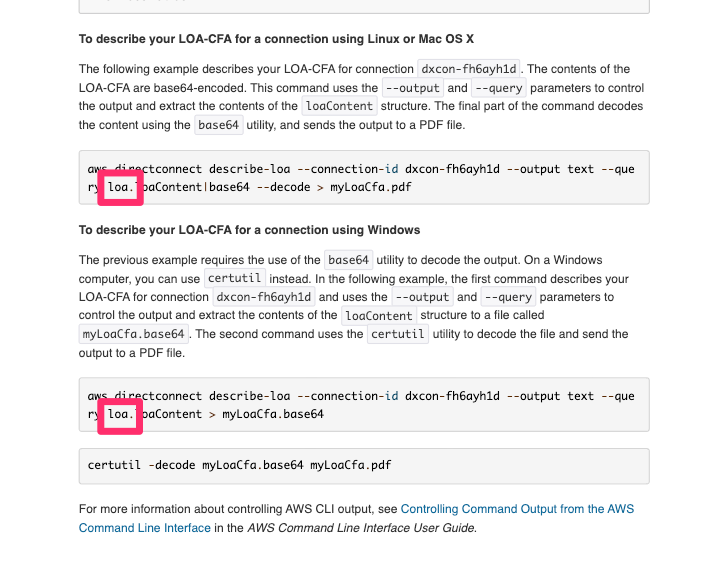

$ aws directconnect describe-loa \
  --connection-id dxcon-abcd123 \
  --output text \
  --query loaContent \
 | base64 --decode > myLoaCfa.pdf

$ aws directconnect describe-locations
{
    "locations": [
        {
            "locationCode": "EqTY2",
            "locationName": "Equinix TY2, Tokyo, Japan",
            "region": "ap-northeast-1",
            "availablePortSpeeds": [
                "100G",
                "1G",
                "10G"
            ],
            "availableProviders": [
                "Datapath.io GmbH",
                "InterCloud",
                "Sejong",
....以下略

$ aws directconnect describe-router-configuration \
  --virtual-interface-id dxvif-123aaaaa

An error occurred (DirectConnectClientException) when calling the DescribeRouterConfiguration operation: Unable to generate router config with exception com.amazon.awsdx.overture.DirectConnectClientException: Unable to find router type with identifier null

$ aws directconnect describe-router-configuration \
  --virtual-interface-id dxvif-123aaaaa \
  --router-type-identifier CiscoSystemsInc-2900SeriesRouters-IOS124
{
    "customerRouterConfig": "! Amazon Web Services\n!=======================================IPV4=======================================\n! Direct Connect\n! Virtual Interface ID: dxvif-123aaaaa\n!\n! ------------------------------------中略       http://docs.amazonwebservices.com/Direc
n apply a community tag to indicate the priority of the associated path for returning traffic.\n! The follow
tConnect/latest/GettingStartedGuide/Welcome.html\n\n        ",
    "router": {
        "vendor": "Cisco Systems, Inc.",
        "platform": "2900 Series Routers",
        "software": "IOS 12.4+",
        "xsltTemplateName": "customer-router-cisco-generic.xslt",
        "xsltTemplateNameForMacSec": "",
        "routerTypeIdentifier": "CiscoSystemsInc-2900SeriesRouters-IOS124"
    },
    "virtualInterfaceId": "dxvif-123aaaaa",
    "virtualInterfaceName": "sample-vif01"
}
