Krita 6.0.0 beta1 が公開されたので PII を検出する Python プラグインの実装を試してみた

[Desktop Entry]
Type=Service
ServiceTypes=Krita/PythonPlugin
X-KDE-Library=pii_mask_poc
X-Python-2-Compatible=false
Name=PII Detector PoC (Krita 6)
Comment=Detect email/+E.164-ish and set selection (local-only).

from .pii_mask_poc import *

{
  "python": "C:\\path\\to\\.venv\\Scripts\\python.exe",
  "detector": "C:\\path\\to\\detector\\pii_detect.py",
  "langs": "en,ja",
  "min_conf": 0.40,
  "pad": 2,
  "scale": 0,
  "gpu": false
}

# pykrita/pii_mask_poc/pii_mask_poc.py
from __future__ import annotations

import json
import os
import subprocess
import tempfile
import time
from pathlib import Path
from typing import Any, Dict, List, Optional

from krita import Extension, InfoObject, Krita, Selection  # type: ignore

try:
    from PyQt6.QtWidgets import QMessageBox
except Exception:  # pragma: no cover
    from PyQt5.QtWidgets import QMessageBox  # type: ignore

PLUGIN_TITLE = "PII Detector PoC"

def _load_config() -> Dict[str, Any]:
    cfg_path = Path(__file__).with_name("config.json")
    if not cfg_path.exists():
        raise RuntimeError(f"config.json not found: {cfg_path}")
    return json.loads(cfg_path.read_text(encoding="utf-8"))

def _msg(title: str, text: str) -> None:
    app = Krita.instance()
    w = app.activeWindow()
    parent = w.qwindow() if w is not None else None
    QMessageBox.information(parent, title, text)

def _err(title: str, text: str) -> None:
    app = Krita.instance()
    w = app.activeWindow()
    parent = w.qwindow() if w is not None else None
    QMessageBox.critical(parent, title, text)

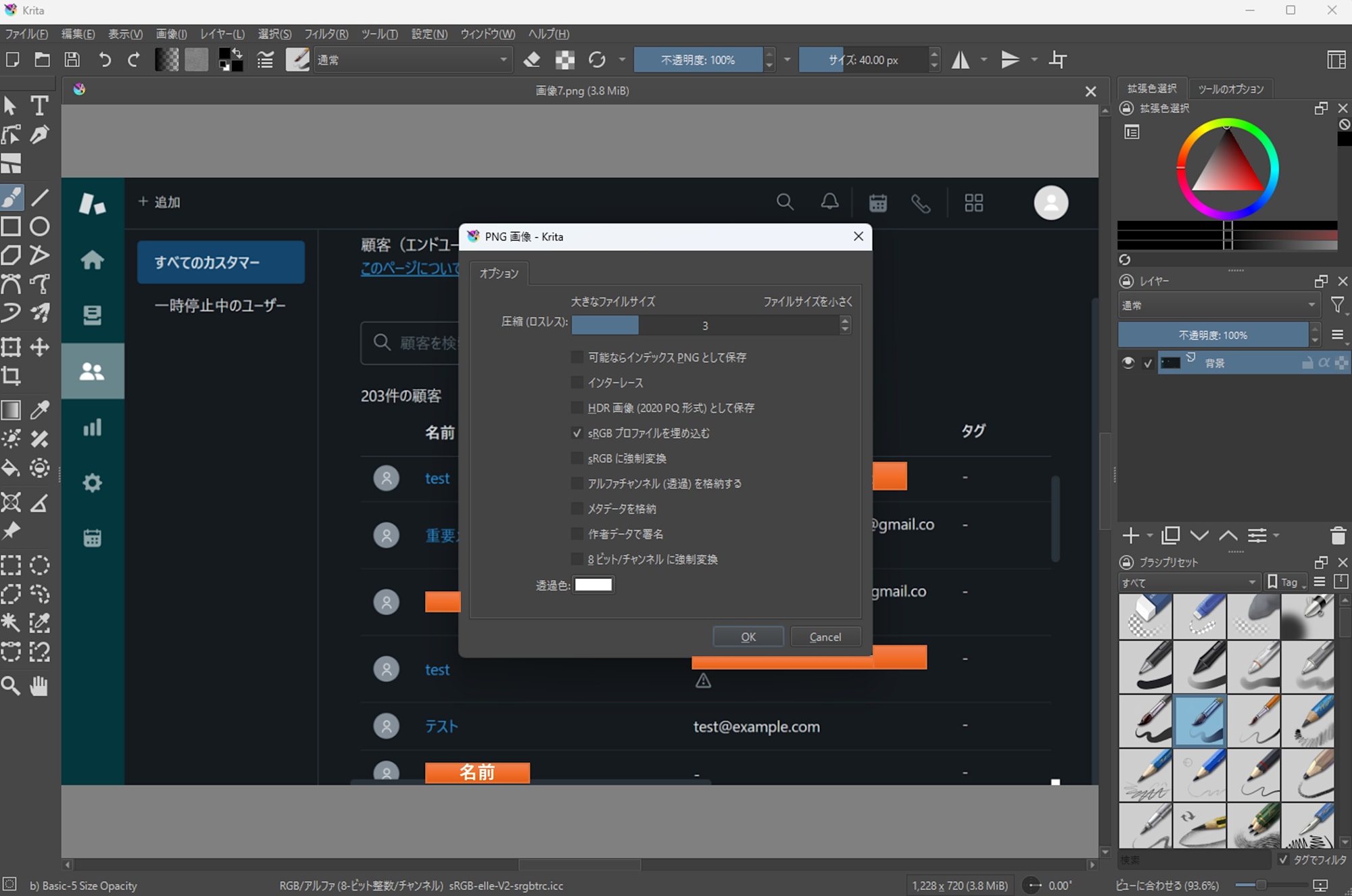

def _export_projection_png(doc, out_path: Path) -> None:
    # projection (見た目通り) を書き出す
    doc.exportImage(str(out_path), InfoObject())

def _rects_to_selection(doc_w: int, doc_h: int, rects: List[Dict[str, int]]) -> Selection:
    sel = Selection()
    sel.resize(doc_w, doc_h)
    sel.clear()

    for r in rects:
        x, y, w, h = int(r["x"]), int(r["y"]), int(r["w"]), int(r["h"])
        if w <= 0 or h <= 0:
            continue
        tmp = Selection()
        tmp.resize(doc_w, doc_h)
        tmp.clear()
        tmp.select(x, y, w, h, 255)
        sel.add(tmp)

    return sel

def _clean_env_for_external_python() -> Dict[str, str]:
    env = os.environ.copy()

    for k in list(env.keys()):
        if k.upper().startswith("PYTHON"):
            env.pop(k, None)

    for k in ["QT_PLUGIN_PATH", "QML2_IMPORT_PATH"]:
        env.pop(k, None)

    return env

def _detector_sanity_check(detector_path: Path) -> Optional[str]:
    try:
        head = detector_path.read_text(encoding="utf-8", errors="ignore")[:2000]
    except Exception:
        return None

    if "from krita import" in head or "import krita" in head:
        return (
            "Detector script looks like a Krita plugin (it imports 'krita').\n"
            "config.json 'detector' may be pointing to the wrong file.\n\n"
            f"detector: {detector_path}"
        )

    return None

class PIIDetectorPoCExtension(Extension):
    def __init__(self, parent):
        super().__init__(parent)

    def setup(self) -> None:
        pass

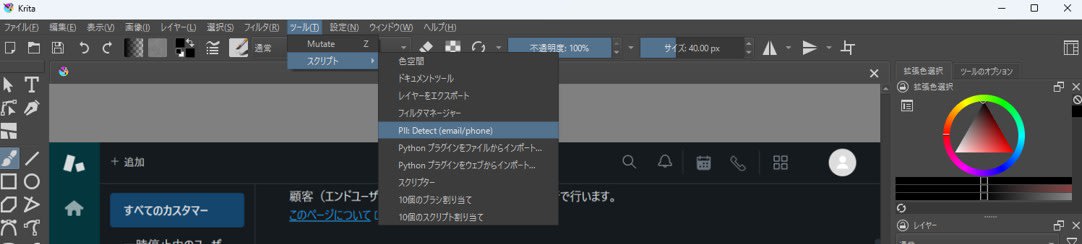

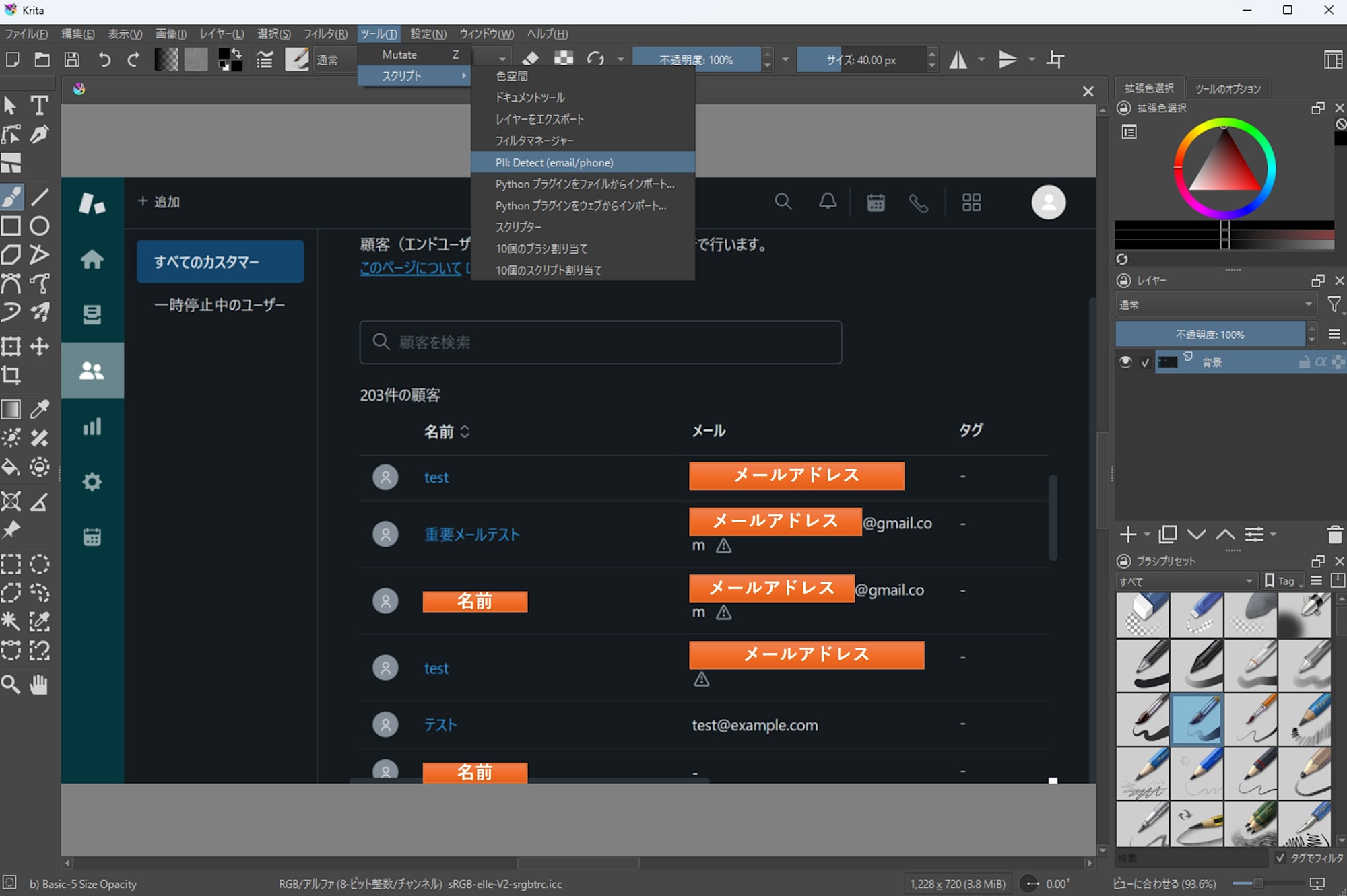

    def createActions(self, window) -> None:
        a1 = window.createAction("pii_detect_email_phone", "PII: Detect (email/phone)", "tools/scripts")
        a1.triggered.connect(self.detect)

    def detect(self) -> None:
        app = Krita.instance()
        doc = app.activeDocument()
        if doc is None:
            _err(PLUGIN_TITLE, "No active document.")
            return

        try:
            cfg = _load_config()
        except Exception as e:
            _err(PLUGIN_TITLE, f"Failed to load config.json:\n{e}")
            return

        py = Path(str(cfg.get("python", "")))
        detector = Path(str(cfg.get("detector", "")))
        langs = str(cfg.get("langs", "en,ja"))
        min_conf = float(cfg.get("min_conf", 0.40))
        pad = int(cfg.get("pad", 2))
        scale = int(cfg.get("scale", 0))
        gpu = bool(cfg.get("gpu", False))

        if not py.exists():
            _err(PLUGIN_TITLE, f"python not found:\n{py}")
            return
        if not detector.exists():
            _err(PLUGIN_TITLE, f"detector not found:\n{detector}")
            return

        bad = _detector_sanity_check(detector)
        if bad:
            _err(PLUGIN_TITLE, bad)
            return

        tmp_dir = Path(tempfile.gettempdir()) / "krita_pii_detector_poc"
        tmp_dir.mkdir(parents=True, exist_ok=True)
        in_png = tmp_dir / "input.png"
        out_json = tmp_dir / "hits.json"

        try:
            _export_projection_png(doc, in_png)
        except Exception as e:
            _err(PLUGIN_TITLE, f"Failed to export image:\n{e}")
            return

        cmd = [
            str(py),
            "-E",
            "-s",
            str(detector),
            "--in",
            str(in_png),
            "--out",
            str(out_json),
            "--langs",
            langs,
            "--min-conf",
            str(min_conf),
            "--pad",
            str(pad),
            "--scale",
            str(scale),
        ]
        if gpu:
            cmd.append("--gpu")

        t0 = time.perf_counter()
        try:
            p = subprocess.run(
                cmd,
                capture_output=True,
                text=True,
                check=False,
                env=_clean_env_for_external_python(),
            )
        except Exception as e:
            _err(PLUGIN_TITLE, f"Failed to run detector:\n{e}")
            return
        elapsed = time.perf_counter() - t0

        print(f"[{PLUGIN_TITLE}] detector elapsed: {elapsed:.2f}s")
        if p.stdout.strip():
            print(f"[{PLUGIN_TITLE}] detector stdout:\n{p.stdout}")
        if p.stderr.strip():
            print(f"[{PLUGIN_TITLE}] detector stderr:\n{p.stderr}")

        if p.returncode != 0:
            _err(
                PLUGIN_TITLE,
                f"Detector failed (code={p.returncode}).\n\nElapsed: {elapsed:.2f}s\n\nSTDERR:\n{p.stderr}\n\nSTDOUT:\n{p.stdout}",
            )
            return

        try:
            data = json.loads(out_json.read_text(encoding="utf-8"))
            hits = data.get("hits", [])
        except Exception as e:
            _err(PLUGIN_TITLE, f"Failed to read JSON:\n{e}")
            return

        rects = [h["rect"] for h in hits if isinstance(h, dict) and "rect" in h]
        sel = _rects_to_selection(doc.width(), doc.height(), rects)
        doc.setSelection(sel)

        _msg(
            PLUGIN_TITLE,
            f"Detection done.\nHits: {len(rects)}\nElapsed: {elapsed:.2f}s\n\n"

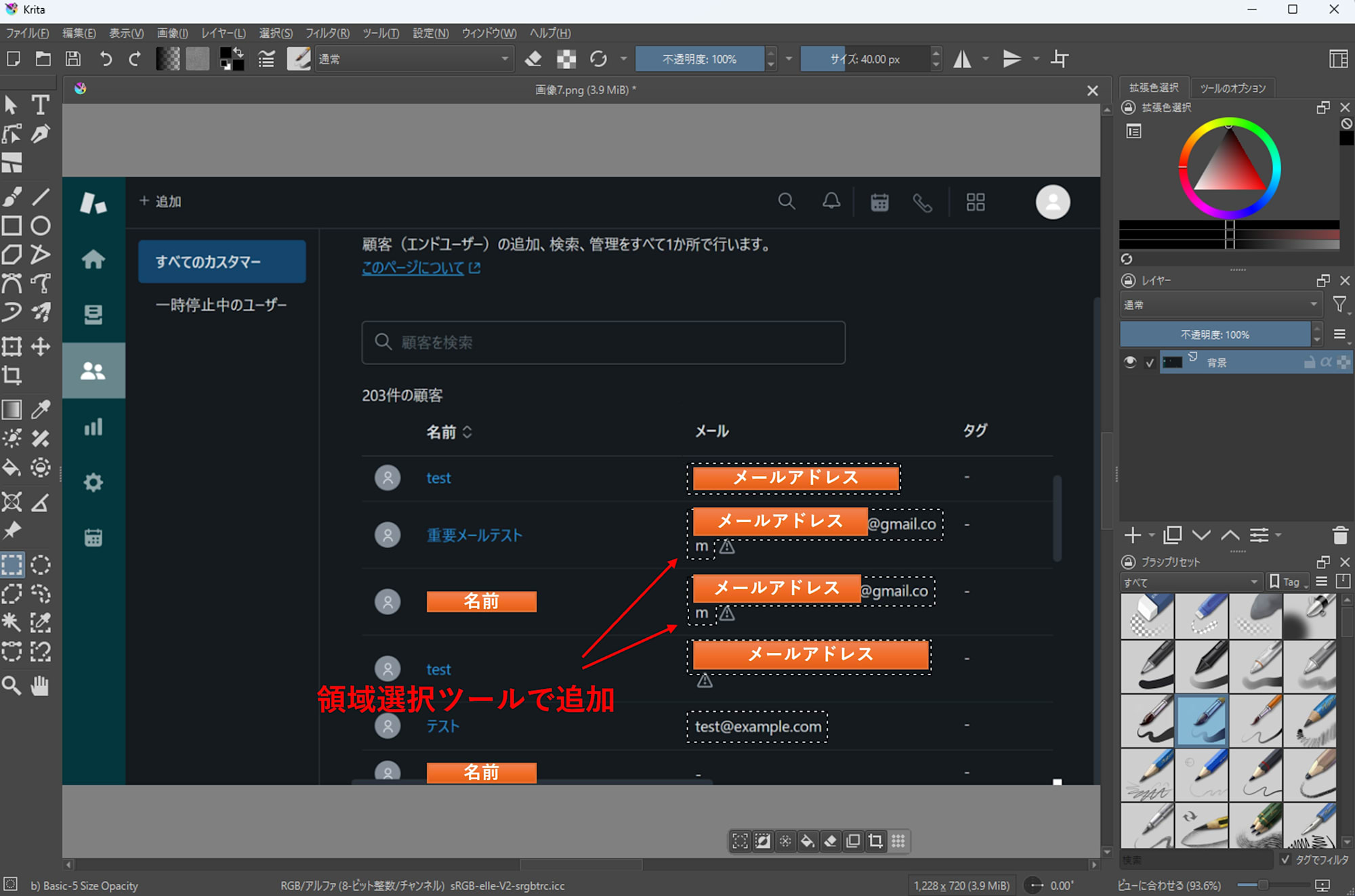

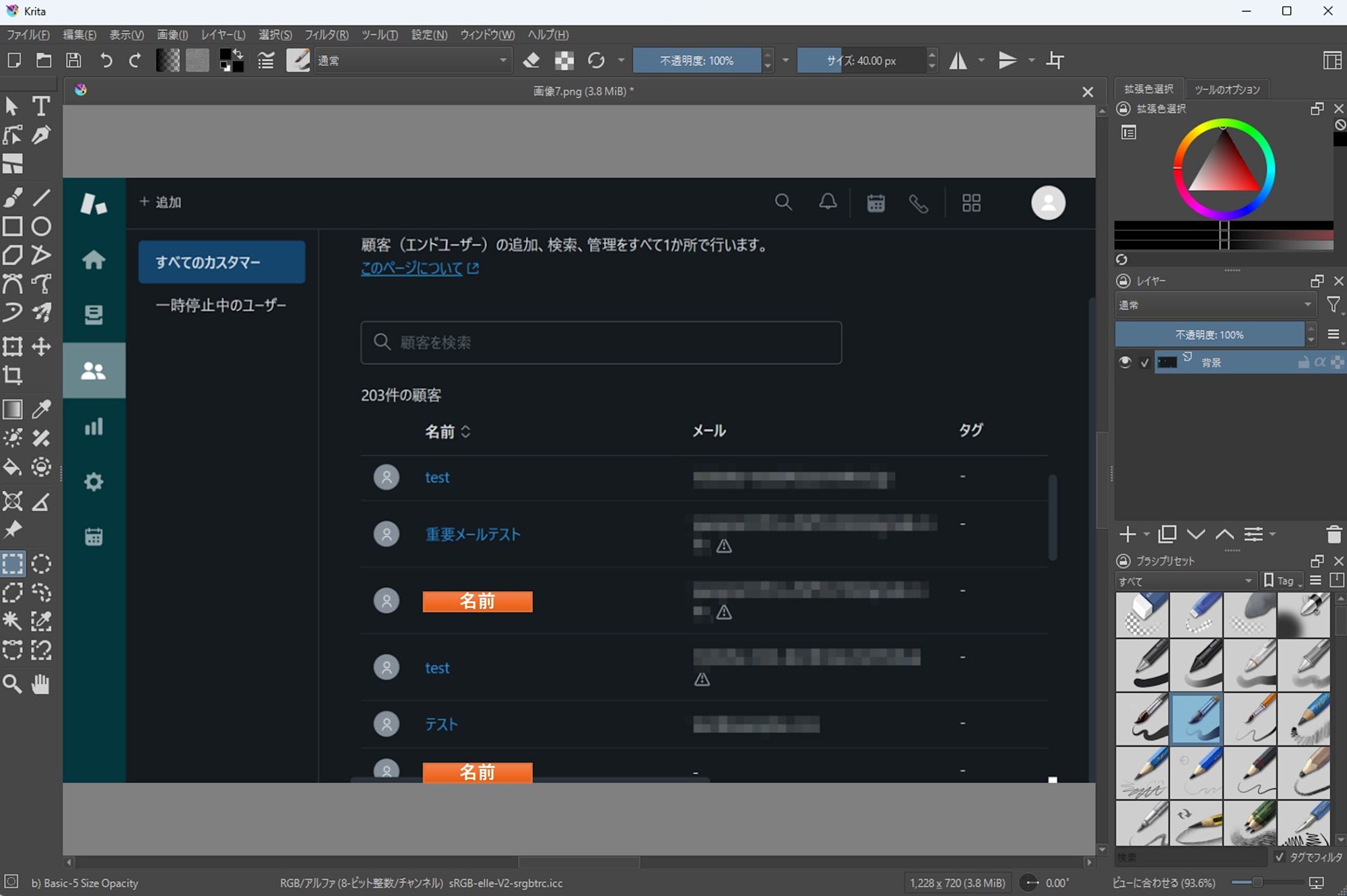

            "Adjust selection manually, then apply pixelize (or other) filter using Krita built-ins.",
        )

Krita.instance().addExtension(PIIDetectorPoCExtension(Krita.instance()))

# detector/pii_detect.py (standalone CLI)
from __future__ import annotations

import argparse
import json
import re
import time
import unicodedata
from dataclasses import dataclass
from pathlib import Path
from typing import List, Tuple

import easyocr  # type: ignore
import numpy as np  # type: ignore
from PIL import Image  # type: ignore

@dataclass
class Token:
    text: str
    conf: float
    x: int
    y: int
    w: int
    h: int

    @property
    def x2(self) -> int:
        return self.x + self.w

@dataclass
class Rect:
    x: int
    y: int
    w: int
    h: int

def clamp(v: int, lo: int, hi: int) -> int:
    return max(lo, min(hi, v))

def normalize_text(s: str) -> str:
    s = unicodedata.normalize("NFKC", s)
    s = s.replace("…", "...")
    s = s.replace("＋", "+")
    return s.strip()

def digit_count(s: str) -> int:
    return sum(c.isdigit() for c in s)

def bbox_points_to_rect(points: List[List[float]]) -> Tuple[int, int, int, int]:
    xs = [p[0] for p in points]
    ys = [p[1] for p in points]
    x0 = int(min(xs))
    y0 = int(min(ys))
    x1 = int(max(xs))
    y1 = int(max(ys))
    return x0, y0, max(1, x1 - x0), max(1, y1 - y0)

def pad_rect(r: Rect, img_w: int, img_h: int, pad: int) -> Rect:
    x = clamp(r.x - pad, 0, img_w - 1)
    y = clamp(r.y - pad, 0, img_h - 1)
    x2 = clamp(r.x + r.w + pad, 0, img_w)
    y2 = clamp(r.y + r.h + pad, 0, img_h)
    return Rect(x=x, y=y, w=max(1, x2 - x), h=max(1, y2 - y))

def iou(a: Rect, b: Rect) -> float:
    ax1, ay1 = a.x + a.w, a.y + a.h
    bx1, by1 = b.x + b.w, b.y + b.h
    ix0, iy0 = max(a.x, b.x), max(a.y, b.y)
    ix1, iy1 = min(ax1, bx1), min(ay1, by1)
    iw, ih = max(0, ix1 - ix0), max(0, iy1 - iy0)
    inter = iw * ih
    if inter <= 0:
        return 0.0
    area = a.w * a.h + b.w * b.h - inter
    return inter / max(1, area)

def group_lines(tokens: List[Token]) -> List[List[Token]]:
    sorted_t = sorted(tokens, key=lambda t: (t.y, t.x))
    lines: List[List[Token]] = []
    for t in sorted_t:
        cy = t.y + t.h // 2
        placed = False
        for line in lines:
            lcy = line[0].y + line[0].h // 2
            if abs(cy - lcy) <= max(12, max(t.h, line[0].h) // 2):
                line.append(t)
                placed = True
                break
        if not placed:
            lines.append([t])
    for line in lines:
        line.sort(key=lambda t: t.x)
    return lines

def cluster_by_xgap(tokens: List[Token], max_gap: int) -> List[List[Token]]:
    if not tokens:
        return []
    tokens = sorted(tokens, key=lambda t: t.x)
    clusters: List[List[Token]] = [[tokens[0]]]
    for t in tokens[1:]:
        prev = clusters[-1][-1]
        gap = t.x - prev.x2
        if gap <= max_gap:
            clusters[-1].append(t)
        else:
            clusters.append([t])
    return clusters

def looks_like_phone(text: str) -> bool:
    if not text:
        return False

    bad = 0
    for c in text:
        if c.isdigit() or c in "+-() ":
            continue
        bad += 1
    if bad > 2:
        return False

    d = digit_count(text)
    if d >= 10:
        return True
    if "+" in text and d >= 8:
        return True
    return False

def dedupe_hits(hits: List[Tuple[str, Rect, float]], iou_th: float = 0.65) -> List[Tuple[str, Rect, float]]:
    kept: List[Tuple[str, Rect, float]] = []
    for kind, r, conf in sorted(hits, key=lambda x: x[2], reverse=True):
        if any(iou(r, kr) >= iou_th for _, kr, _ in kept):
            continue
        kept.append((kind, r, conf))
    return kept

def main() -> None:
    ap = argparse.ArgumentParser()
    ap.add_argument("--in", dest="in_path", required=True)
    ap.add_argument("--out", dest="out_path", required=True)

    ap.add_argument("--langs", default="en,ja")
    ap.add_argument("--min-conf", type=float, default=0.40)
    ap.add_argument("--pad", type=int, default=2)
    ap.add_argument("--scale", type=int, default=0, help="0=auto, 2/3/4...")
    ap.add_argument("--gpu", action="store_true", default=False)

    args = ap.parse_args()

    t0 = time.perf_counter()

    in_path = Path(args.in_path)
    out_path = Path(args.out_path)

    img0 = Image.open(in_path).convert("RGB")
    w0, h0 = img0.size

    scale = args.scale
    if scale == 0:
        scale = 3 if max(w0, h0) <= 1400 else 2

    img = img0.resize((w0 * scale, h0 * scale), Image.Resampling.BICUBIC) if scale != 1 else img0
    img_np = np.array(img)

    langs = [s.strip() for s in args.langs.split(",") if s.strip()]
    reader = easyocr.Reader(langs, gpu=args.gpu)

    results = reader.readtext(
        img_np,
        detail=1,
        paragraph=False,
        decoder="greedy",
        text_threshold=0.40,
        low_text=0.20,
        link_threshold=0.20,
    )

    tokens: List[Token] = []
    for bbox, text, conf in results:
        if conf is None or conf < args.min_conf:
            continue
        t = normalize_text(text or "")
        if not t:
            continue

        x, y, w, h = bbox_points_to_rect(bbox)
        x = int(x / scale)
        y = int(y / scale)
        w = int(w / scale)
        h = int(h / scale)
        tokens.append(Token(text=t, conf=float(conf), x=x, y=y, w=w, h=h))

    raw_hits: List[Tuple[str, Rect, float]] = []

    for line in group_lines(tokens):
        at_idxs = [i for i, t in enumerate(line) if "@" in t.text]
        for i in at_idxs:
            center = line[i]
            cand = [center]

            j = i - 1
            while j >= 0:
                prev = line[j]
                gap = cand[0].x - prev.x2
                if gap <= max(20, prev.h):
                    cand.insert(0, prev)
                    j -= 1
                else:
                    break

            j = i + 1
            while j < len(line):
                nxt = line[j]
                gap = nxt.x - cand[-1].x2
                if gap <= max(20, nxt.h):
                    cand.append(nxt)
                    j += 1
                else:
                    break

            r = Rect(cand[0].x, cand[0].y, cand[-1].x2 - cand[0].x, max(t.h for t in cand))
            r = pad_rect(r, w0, h0, args.pad)
            conf2 = sum(t.conf for t in cand) / len(cand)
            raw_hits.append(("email", r, conf2))

        phoneish = [t for t in line if any(c.isdigit() for c in t.text) or any(c in t.text for c in "+-()")]
        for cl in cluster_by_xgap(phoneish, max_gap=24):
            joined = normalize_text(" ".join(t.text for t in cl))
            if looks_like_phone(joined):
                r = Rect(cl[0].x, cl[0].y, cl[-1].x2 - cl[0].x, max(t.h for t in cl))
                r = pad_rect(r, w0, h0, args.pad)
                conf2 = sum(t.conf for t in cl) / len(cl)
                raw_hits.append(("phone_e164", r, conf2))

    raw_hits = dedupe_hits(raw_hits)

    hits = [
        {"kind": k, "rect": {"x": r.x, "y": r.y, "w": r.w, "h": r.h}, "confidence": c}
        for k, r, c in raw_hits
    ]
    out = {"image": {"path": str(in_path), "width": w0, "height": h0}, "hits": hits}
    out_path.parent.mkdir(parents=True, exist_ok=True)
    out_path.write_text(json.dumps(out, ensure_ascii=False, indent=2), encoding="utf-8")

    elapsed = time.perf_counter() - t0
    print(f"[pii_detect] elapsed: {elapsed:.2f}s, hits={len(hits)}, image={w0}x{h0}")

if __name__ == "__main__":
    main()

python -m venv .venv
.venv/Scripts/python -m pip install --upgrade pip
.venv/Scripts/pip install easyocr pillow numpy
