Step FunctionsステートマシンからDynamoDBテーブルに対して26件以上のUpdateItem操作をしたい（AWS CDK）

若槻龍太

2021.11.27

この記事は公開されてから1年以上経過しています。情報が古い可能性がありますので、ご注意ください。

こんにちは、CX事業本部 IoT事業部の若槻です。

今回は、AWS Step FunctionsステートマシンからAmazon DynamoDBテーブルに対して26件以上のUpdateItem操作を行う構成をAWS CDKで作成してみました。

TransactWriteItemsで一度に更新処理できる件数は最大25件

以前の下記エントリでは、ステートマシンからDynamoDBテーブル上の複数アイテムのUpdateItemをTransactWriteItemsを使って行いました。

しかしこのTransactWriteItemsは一度に更新処理できる件数は最大25件という制限があります。

TransactWriteItems is a synchronous write operation that groups up to 25 action requests.

そこで今回は、ステートマシンから26件以上のUpdateItem操作を、TransactWriteItems操作をMapステートでループ実行する構成で実装してみます。

やってみた

CDKコード

lib/aws-cdk-app-stack.ts

import * as cdk from '@aws-cdk/core';
import * as sfn from '@aws-cdk/aws-stepfunctions';
import * as tasks from '@aws-cdk/aws-stepfunctions-tasks';
import * as dynamodb from '@aws-cdk/aws-dynamodb';

export class AwsCdkAppStack extends cdk.Stack {
  constructor(scope: cdk.Construct, id: string, props?: cdk.StackProps) {
    super(scope, id, props);

    //UpdateItem対象のDynamoDBテーブル
    const deviceTable = new dynamodb.Table(this, 'deviceTable', {
      tableName: 'deviceTable',
      partitionKey: { name: 'deviceId', type: dynamodb.AttributeType.STRING },
      billingMode: dynamodb.BillingMode.PAY_PER_REQUEST,
    });

    //transactWriteItemsアクション
    const updateDeviceData = new tasks.CallAwsService(
      this,
      'updateDeviceData',
      {
        service: 'dynamodb',
        action: 'transactWriteItems',
        parameters: {
          'TransactItems.$': '$.transactItems',
        },
        iamResources: [deviceTable.tableArn],
        iamAction: 'dynamodb:*',
      }
    );

    //Mapステート
    const updateDeviceDataMap = new sfn.Map(this, 'updateDeviceDataMap', {
      itemsPath: sfn.JsonPath.stringAt('$.mapItems'),
      parameters: {
        'transactItems.$': '$$.Map.Item.Value.TransactItems',
      },
    });

    updateDeviceDataMap.iterator(updateDeviceData);

    //ステートマシン
    new sfn.StateMachine(this, 'updateDeviceDataStateMachine', {
      stateMachineName: 'updateDeviceDataStateMachine',
      definition: updateDeviceDataMap,
    });
  }
}

cdk deployでデプロイします。

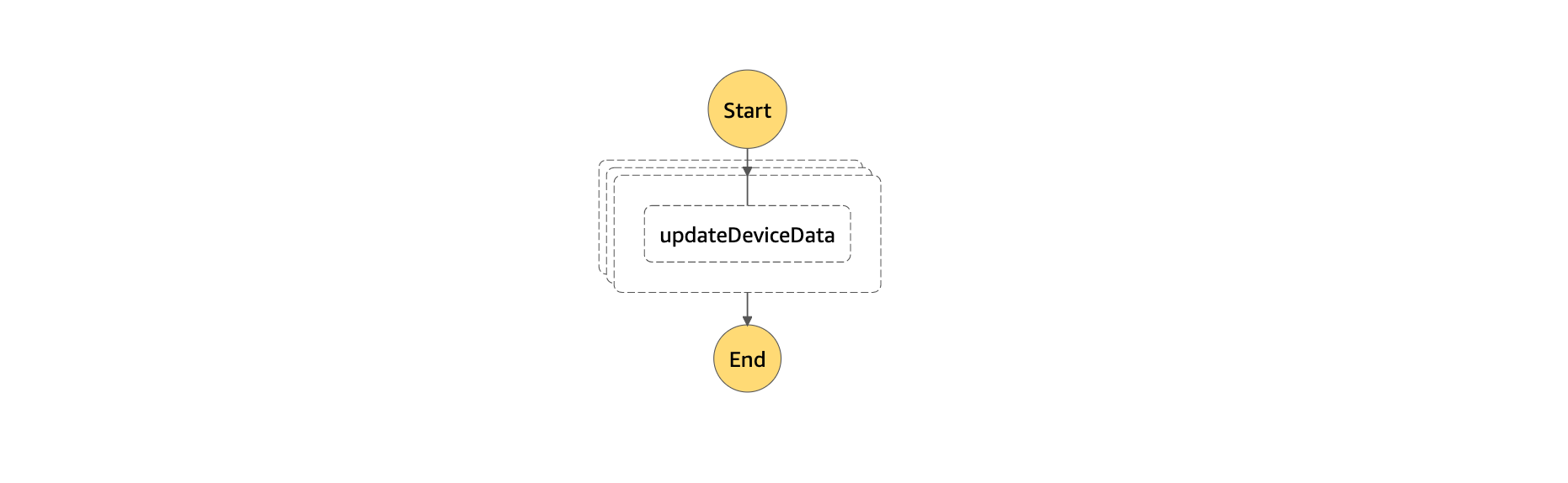

すると下記のような定義のステートマシンが作成されます。

{
  "StartAt": "updateDeviceDataMap",
  "States": {
    "updateDeviceDataMap": {
      "Type": "Map",
      "End": true,
      "Parameters": {
        "transactItems.$": "$$.Map.Item.Value.TransactItems"
      },
      "Iterator": {
        "StartAt": "updateDeviceData",
        "States": {
          "updateDeviceData": {
            "End": true,
            "Type": "Task",
            "Resource": "arn:aws:states:::aws-sdk:dynamodb:transactWriteItems",
            "Parameters": {
              "TransactItems.$": "$.transactItems"
            }
          }
        }
      },
      "ItemsPath": "$.mapItems"
    }
  }
}

動作

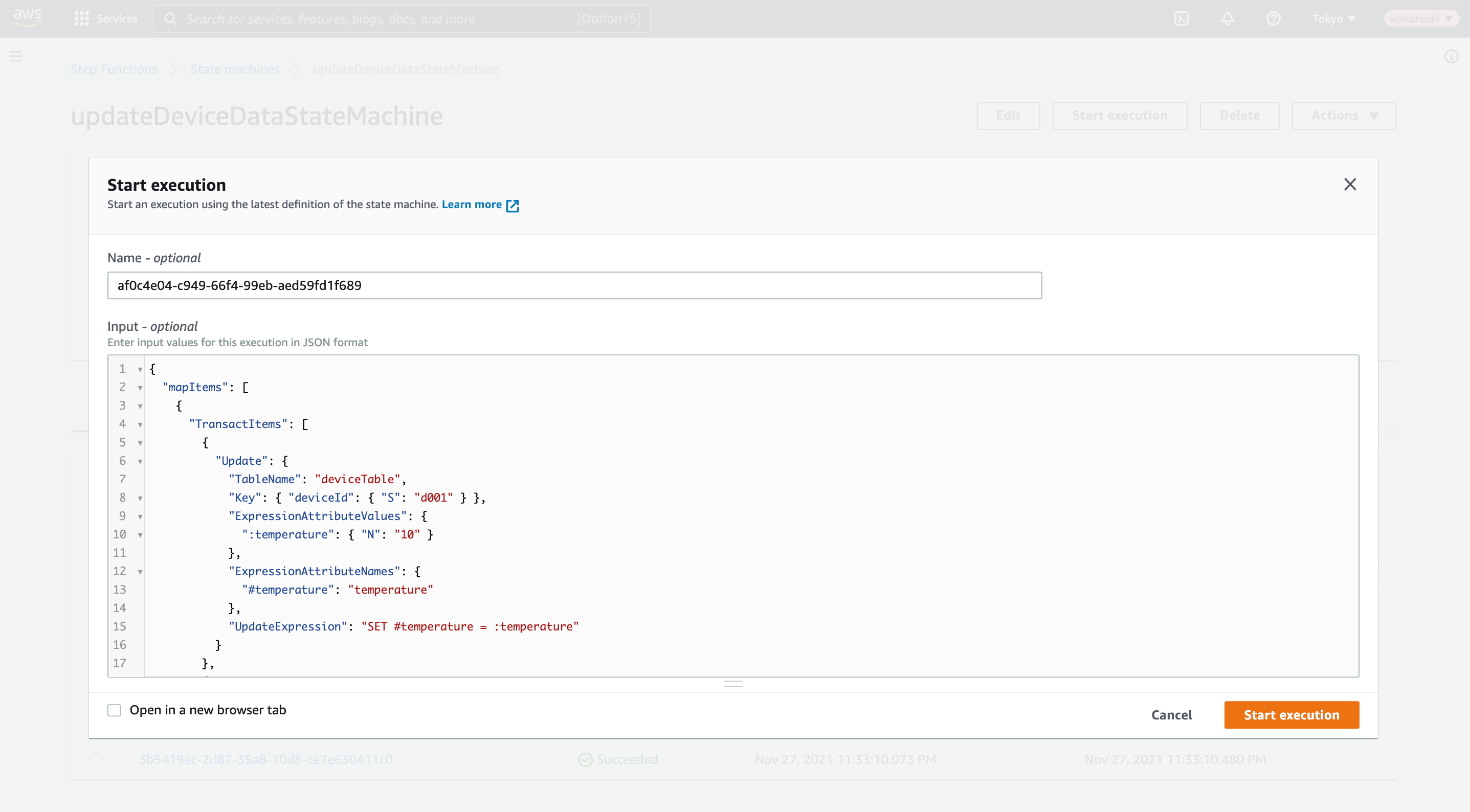

以下のようなペイロードを入力にしてステートマシンを実行します。1件目のTransactItemsは25件、2件目のTransactItemsは2件のUpdateItem操作を指定しています。（大きいので折りたたんでいます。）

入力
{
  "mapItems": [
    {
      "TransactItems": [
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d001" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d002" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d003" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "15" },
              ":deviceName": { "S": "デバイス003" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d004" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "30" },
              ":deviceName": { "S": "デバイス004" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d005" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d006" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d007" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "15" },
              ":deviceName": { "S": "デバイス007" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d008" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "30" },
              ":deviceName": { "S": "デバイス008" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d009" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d010" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d011" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "15" },
              ":deviceName": { "S": "デバイス011" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d012" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "30" },
              ":deviceName": { "S": "デバイス012" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d013" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d014" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d015" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "15" },
              ":deviceName": { "S": "デバイス015" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d016" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "30" },
              ":deviceName": { "S": "デバイス016" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },

        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d017" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d018" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d019" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "15" },
              ":deviceName": { "S": "デバイス019" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d020" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "30" },
              ":deviceName": { "S": "デバイス020" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d021" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d022" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d023" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "15" },
              ":deviceName": { "S": "デバイス023" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d024" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "30" },
              ":deviceName": { "S": "デバイス024" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d025" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        }
      ]
    },
    {
      "TransactItems": [
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d026" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "10" }
            },
            "ExpressionAttributeNames": {
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #temperature = :temperature"
          }
        },
        {
          "Update": {
            "TableName": "deviceTable",
            "Key": { "deviceId": { "S": "d027" } },
            "ExpressionAttributeValues": {
              ":temperature": { "N": "30" },
              ":deviceName": { "S": "デバイス027" }
            },
            "ExpressionAttributeNames": {
              "#deviceName": "deviceName",
              "#temperature": "temperature"
            },
            "UpdateExpression": "SET #deviceName = :deviceName, #temperature = :temperature"
          }
        }
      ]
    }
  ]
}

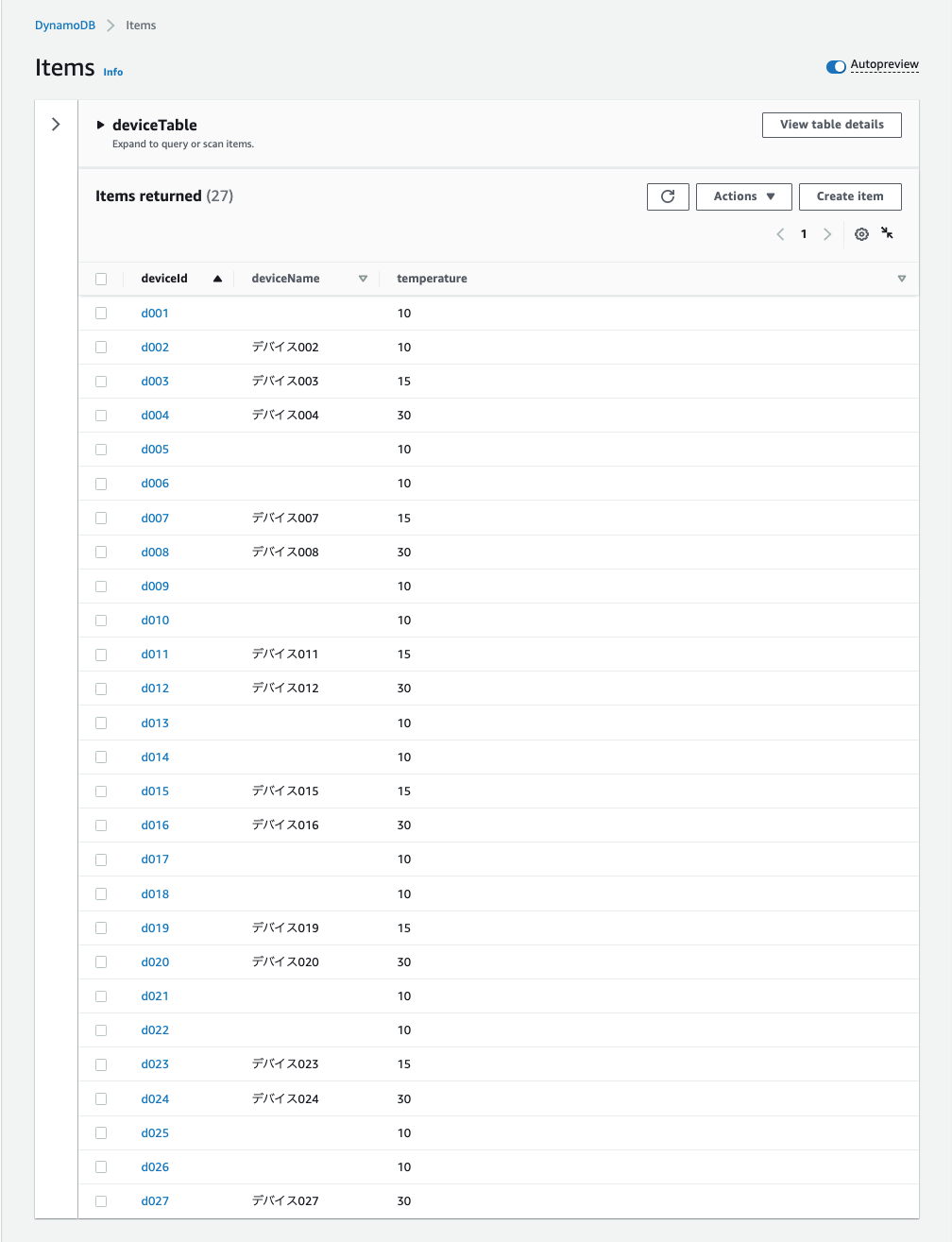

テーブルのアイテム一覧を見ると、26件以上のアイテムがUpdateItemできています。

制限

1件のTransactItemsで指定可能な操作件数は25件まで

今回回避しようとした制限です。1件のTransactItemsで26件以上を指定した場合は以下のようなエラーによりMapイテレーションの実行が失敗します。

at 'transactItems' failed to satisfy constraint: Member must have length less than or equal to 25 (Service: DynamoDb, Status Code: 400, Request ID: 378b1607-ed9b-4201-a4a3-4932081c51fd, Extended Request ID: null)"

ステートマシンの最大入出力サイズは256KB

ステートマシンのタスク、状態や実行の最大入出力サイズは256KB（262,144バイト）です。

256KBを超えるサイズのデータを扱いたい場合は、S3バケットにデータを一時保存するなどして256KB内に収めるようにします。

ちなみに今回の動作確認で使用した入力データは約14KBでした。

参考

以上

スキルアップ|初心者向け|書評|デベキャン|AWS認定|スキルアップ|デベキャンだより|勉強会|コミュニティ

関連記事

【CDK】AWS Step FunctionsでS3のCOPY Objectを実行

yosh-k

2024.04.22

[Amazon FSx for NetApp ONTAP] FabricPoolを利用している環境でデータを定期スキャンするシステムを導入する際の対応方法を考えてみた

のんピ

2024.04.10

Lambda+Glue+Step Functionsの構成をServerless FrameworkとAWS SAMのそれぞれでデプロイしてみた

k.uehara

2024.04.02

AWS Step FunctionsでLambda関数の結果をS3にPUTするステートマシンを作ってみた

武田隆志

2024.03.30
