AWS DevOps Agent (Preview)をテストシナリオに沿って試してみる #AWSreInvent

AWSTemplateFormatVersion: '2010-09-09'
Description: 'AWS AIDevOps EC2 CPU Test Stack'

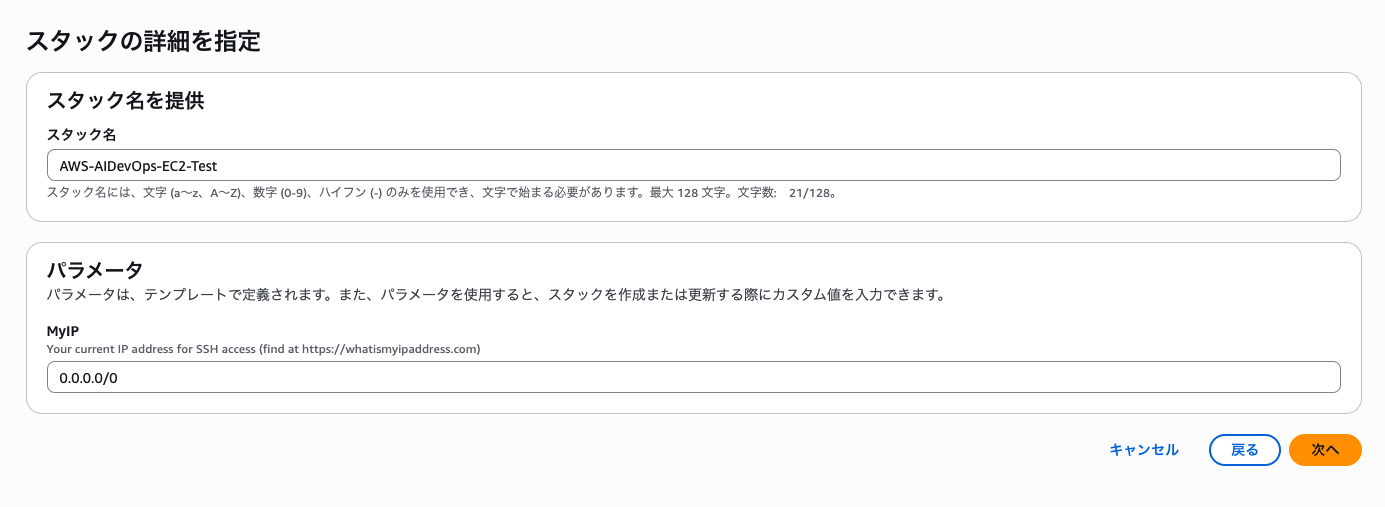

Parameters:
  MyIP:
    Type: String
    Description: Your current IP address for SSH access (find at https://whatismyipaddress.com)
    Default: '0.0.0.0/0'

Resources:
  # Security Group for SSH access
  TestSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: AWS-AIDevOps-test-sg
      GroupDescription: AWS AIDevOps beta testing security group
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: !Ref MyIP
          Description: SSH access from your IP
      Tags:
        - Key: Name
          Value: AWS-AIDevOps-Test-SG
        - Key: Purpose
          Value: AWS-AIDevOps-Testing

  # Key Pair for SSH access
  TestKeyPair:
    Type: AWS::EC2::KeyPair
    Properties:
      KeyName: AWS-AIDevOps-test-key
      KeyType: rsa
      Tags:
        - Key: Name
          Value: AWS-AIDevOps-Test-Key
        - Key: Purpose
          Value: AWS-AIDevOps-Testing

  # EC2 Instance for CPU testing
  TestInstance:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: t3.micro
      ImageId: '{{resolve:ssm:/aws/service/ami-amazon-linux-latest/al2023-ami-kernel-6.1-x86_64}}'
      KeyName: !Ref TestKeyPair
      SecurityGroupIds:
        - !Ref TestSecurityGroup
      UserData:
        Fn::Base64: !Sub |
          #!/bin/bash
          yum update -y
          yum install -y htop

          # Create the CPU stress test script
          cat > /home/ec2-user/cpu-stress-test.sh << 'EOF'
          #!/bin/bash
          echo "Starting AWS AIDevOps CPU Stress Test"
          echo "Time: $(date)"
          echo "Instance: $(curl -s http://169.254.169.254/latest/meta-data/instance-id)"
          echo ""

          # Get number of CPU cores
          CORES=$(nproc)
          echo "CPU Cores: $CORES"
          echo ""

          echo "Starting stress test (5 minutes)..."
          echo "This will generate >70% CPU usage to trigger CloudWatch alarm"
          echo ""

          # Create CPU load using yes command
          echo "Starting CPU load processes..."
          for i in $(seq 1 $CORES); do
              (yes > /dev/null) &
              CPU_PID=$!
              echo "Started CPU load process $i (PID: $CPU_PID)"
              echo $CPU_PID >> /tmp/cpu_test_pids
          done

          # Auto-cleanup after 5 minutes
          (sleep 300 && echo "Stopping CPU load processes..." && kill $(cat /tmp/cpu_test_pids 2>/dev/null) 2>/dev/null && rm -f /tmp/cpu_test_pids) &

          echo ""
          echo "CPU load processes started for 5 minutes"
          echo "Check CloudWatch for alarm trigger in 3-5 minutes"
          EOF

          chmod +x /home/ec2-user/cpu-stress-test.sh
          chown ec2-user:ec2-user /home/ec2-user/cpu-stress-test.sh

          # Create auto-shutdown script (safety mechanism)
          cat > /home/ec2-user/auto-shutdown.sh << 'SHUTDOWN_EOF'
          #!/bin/bash
          echo "Auto-shutdown scheduled for 2 hours from now: $(date)"
          sleep 7200
          echo "Auto-shutdown executing at: $(date)"
          sudo shutdown -h now
          SHUTDOWN_EOF

          chmod +x /home/ec2-user/auto-shutdown.sh
          nohup /home/ec2-user/auto-shutdown.sh > /home/ec2-user/auto-shutdown.log 2>&1 &

          echo "AWS AIDevOps test setup completed at $(date)" > /home/ec2-user/setup-complete.txt
      Tags:
        - Key: Name
          Value: AWS-AIDevOps-Test-Instance
        - Key: Purpose
          Value: AWS-AIDevOps-Testing

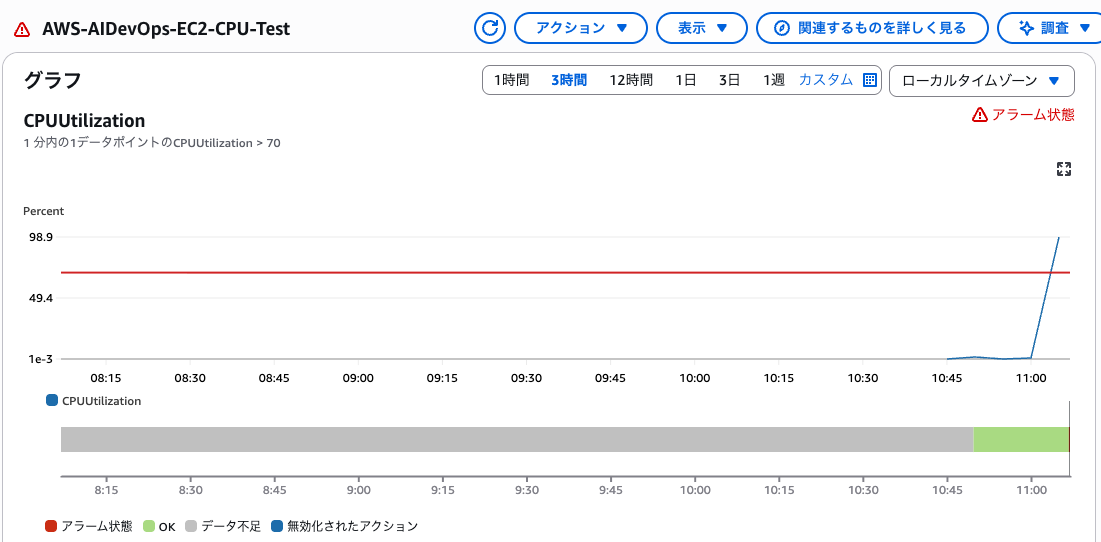

  # CloudWatch Alarm for CPU utilization
  CPUAlarm:
    Type: AWS::CloudWatch::Alarm
    Properties:
      AlarmName: AWS-AIDevOps-EC2-CPU-Test
      AlarmDescription: AWS-AIDevOps beta test - EC2 CPU utilization alarm
      MetricName: CPUUtilization
      Namespace: AWS/EC2
      Statistic: Average
      Period: 60
      EvaluationPeriods: 1
      Threshold: 70
      ComparisonOperator: GreaterThanThreshold
      Dimensions:
        - Name: InstanceId
          Value: !Ref TestInstance
      TreatMissingData: notBreaching

Outputs:
  InstanceId:
    Description: EC2 Instance ID for testing
    Value: !Ref TestInstance

  SecurityGroupId:
    Description: Security Group ID
    Value: !Ref TestSecurityGroup

  AlarmName:
    Description: CloudWatch Alarm Name
    Value: !Ref CPUAlarm

  SSHCommand:
    Description: SSH command to connect to instance
    Value: !Sub 'ssh -i "AWS-AIDevOps-test-key.pem" ec2-user@${TestInstance.PublicDnsName}'
