さがらです。

5月末に発表されたdbt Fusionについて、dbt Core 1.9で動いていた既存リポジトリをdbt Fusion × dbt公式VS Code拡張機能で動かしてみました。その内容について本記事でまとめてみます。

※dbt Fusionは2025/7/8時点、Beta機能となりますのでご注意ください。

やること

以下のdbt Cloudで動いていたリポジトリのコミットハッシュ「d1b0f46」時点の内容を元に、ローカルでクローンしてdbt Fusionを試してみます。

※dbt Cloudで動かしていたリポジトリのため、ローカルにクローン後にprofiles.ymlを追加・編集しています。この手順については割愛します。

参考ドキュメント・ブログ

dbt Fusionへのアップデートに関しては以下のドキュメントに記載がありますので、この内容を参考に進めていきます。

https://docs.getdbt.com/docs/dbt-versions/core-upgrade/upgrading-to-fusion

dbt FusionはまだBeta版ですので、どの機能・コマンドが対応しているかは以下のドキュメントから確認が必要です。2025/7/8時点では個人的に以下の点が気になりました。

  • Exposuresが未対応
  • dbt cloneコマンドが未対応
  • microbatchのIncremental Strategyに未対応
  • custom materializationsに未対応
  • contractsなどのModel governance機能に未対応
  • dbt docs generateによる静的HTMLサイトのドキュメント生成に未対応(GAまでにサポート予定)
  • SQLFluffによるリンティングに未対応(将来的にはリンティング自体をFusionに組み込む予定とのこと)
  • Semantic Layerの開発及びsaved_queryに未対応

https://docs.getdbt.com/docs/fusion/supported-features

また、先行して検証された方のブログも以下に記載しておきます。

https://zenn.dev/suwash/articles/dbt_fusion_engine_20250530

https://zenn.dev/analytics_eng/articles/7afb0bcd1d01b3

https://zenn.dev/myshmeh/articles/87fa16c15a4367

検証環境

  • OS
    • Ubuntu 24.04 LTS (WSL2で動作)
  • Python関係
    • uvでPython関係のバージョン・パッケージ管理
    • Python 3.12
  • 接続先
    • Snowflake

dbt Core 1.10でエラー・警告がないか確認し対処

こちらのドキュメントにもあるように、dbt Fusionへのアップデート前にdbt Core 1.10までのすべての非推奨項目を解消しておく必要があるため、dbt Core 1.10にアップデート後にdbt parseを実行してみます。

私の場合は下記の結果となりました。以下にそれぞれの警告の対策を記します。

dbt parse
06:58:10  Running with dbt=1.10.3
06:58:10  Registered adapter: snowflake=1.9.4
06:58:10  Unable to do partial parsing because saved manifest not found. Starting full parse.
06:58:12  [WARNING][PropertyMovedToConfigDeprecation]: Deprecated functionality
Found `freshness` as a top-level property of `ecom` in file
`models/staging/__sources.yml`. The `freshness` top-level property should be
moved into the `config` of `ecom`.
06:58:12  [WARNING]: Time spines without YAML configuration are in the process of
deprecation. Please add YAML configuration for your 'metricflow_time_spine'
model. See documentation on MetricFlow time spines:
https://docs.getdbt.com/docs/build/metricflow-time-spine and behavior change
documentation:
https://docs.getdbt.com/reference/global-configs/behavior-changes.
06:58:12  Performance info: /home/sagara/develop/jaffle-shop-japanese/target/perf_info.json
06:58:13  [WARNING][DeprecationsSummary]: Deprecated functionality
Summary of encountered deprecations:
- PropertyMovedToConfigDeprecation: 1 occurrence
- MFTimespineWithoutYamlConfigurationDeprecation: 1 occurrence
To see all deprecation instances instead of just the first occurrence of each,
run command again with the `--show-all-deprecations` flag. You may also need to
run with `--no-partial-parse` as some deprecations are only encountered during
parsing.

PropertyMovedToConfigDeprecation

この対策としては、「freshness:configブロックの中に移す」必要があります。

  • Before
version: 2

sources:
  - name: ecom
    schema: raw
    description: E-commerce data for the Jaffle Shop
    freshness:
      warn_after:
        count: 24
        period: hour
  • After
version: 2

sources:
  - name: ecom
    schema: raw
    description: E-commerce data for the Jaffle Shop
    config:
      freshness:
        warn_after:
          count: 24
          period: hour

MFTimespineWithoutYamlConfigurationDeprecation

この対策としては、MetricFlowのtime spineについて、sqlファイルだけでなくyamlファイルでメタデータを付与する必要があります。

  • Before:sqlファイルだけで定義(jaffle-shop-japanese/models/marts/metricflow_time_spine.sql

  • After:sqlファイルに加えて、yamlファイルも追加で作成(jaffle-shop-japanese/models/marts/metricflow_time_spine.yml

version: 2

models:
  - name: metricflow_time_spine
    description: "Canonical daily time spine for MetricFlow demos"
    config:
      materialized: table
    time_spine:
      standard_granularity_column: date_day
    columns:
      - name: date_day
        description: "Calendar date at day grain"
        granularity: day

エラー・警告が出なくなったかを確認

上記の対策を行った後、dbt parse --no-partial-parseを実行します。--no-partial-parseを入れることで差分parseとならず、project全体に対して再度parse処理を行うことが出来ます。

下記のように表示されれば、エラー・警告がなくなったということになります!

$ dbt parse --no-partial-parse
08:19:19  Running with dbt=1.10.3
08:19:19  Registered adapter: snowflake=1.9.4
08:19:22  Performance info: /home/sagara/develop/jaffle-shop-japanese/target/perf_info.json

dbt Fusionのインストール

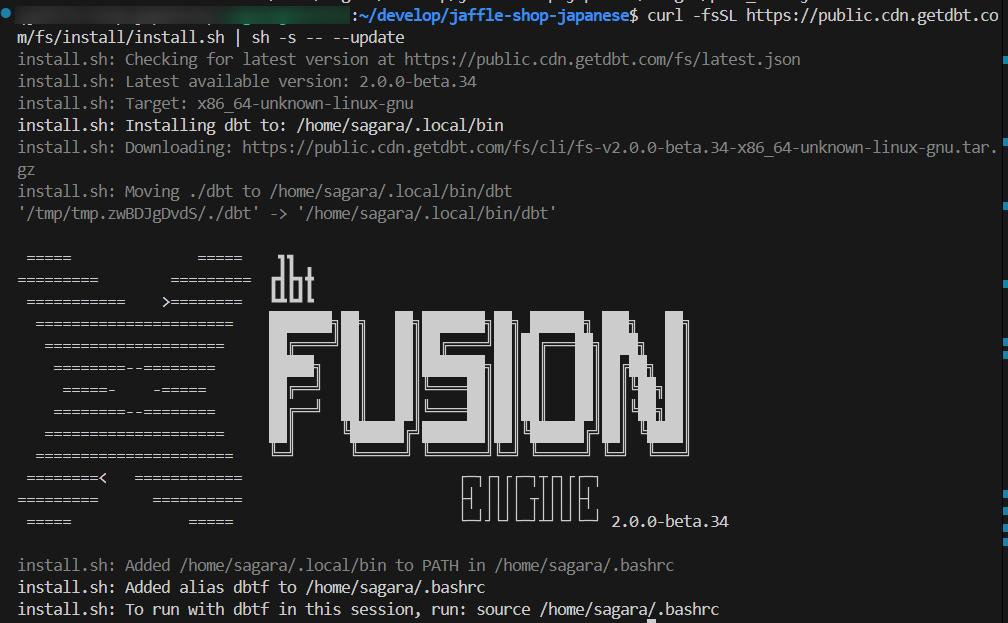

以下のコマンドを実行して、dbt Fusionをインストールします。うまく行けば下図のように表示されると思います。

curl -fsSL https://public.cdn.getdbt.com/fs/install/install.sh | sh -s -- --update

2025-07-08_17h38_51

シェルをリロードしてdbtfを実行して、下図のように表示されればインストールは無事に完了です!

source ~/.bashrc
dbtf
$ dbtf
dbt-fusion 2.0.0-beta.34: A fast and enriched dbt compiler and runner

Usage: dbt [OPTIONS] <COMMAND>

Commands:
  init           Initialize a new dbt project
  deps           Install package dependencies
  parse          Parse models
  list           List selected nodes
  ls             List selected nodes (alias for list)
  compile        Compile models
  run            Run models
  run-operation  Run the named macro with any supplied arguments
  test           Test models
  seed           Seed models
  snapshot       Run snapshot models
  show           Show a preview of the selected nodes
  build          Build seeds, models and tests
  clean          Remove target directories
  source         Run sources subcommands
  system         dbt installation configuration
  man            Create reference documentation
  debug          Profile connection debugging
  help           Print this message or the help of the given subcommand(s)

Options:
  -t, --target <TARGET>
          The target to execute [env: DBT_TARGET=]
      --project-dir <PROJECT_DIR>
          The directory to load the dbt project from [env: DBT_PROJECT_DIR=]
      --profile <PROFILE>
          The profile to use [env: DBT_PROFILE=]
      --profiles-dir <PROFILES_DIR>
          The directory to load the profiles from [env: DBT_PROFILES_DIR=]
      --packages-install-path <PACKAGES_INSTALL_PATH>
          The directory to install packages [env: DBT_PACKAGES_INSTALL_PATH=]
      --target-path <TARGET_PATH>
          The output directory for all produced assets [env: DBT_TARGET_PATH=]
      --vars <VARS>
          Supply var bindings in yml format e.g. '{key: value}' or as separate key: value pairs
  -s, --select <SELECT>...
          Select nodes to run
      --exclude <EXCLUDE>...
          Select nodes to exclude
      --selector <SELECTOR>
          The name of the yml defined selector to use
      --indirect-selection <INDIRECT_SELECTION>
          Choose which tests to select adjacent to resources: eager (most inclusive), cautious (most exclusive), buildable (inbetween) or empty [env: DBT_INDIRECT_SELECTION=]
  -q, --quiet
          Suppress all non-error logging to stdout. Does not affect {{ print() }} macro calls [env: DBT_QUIET=]
      --threads <THREADS>
          The number of threads to use [Run with --threads 0 to use max_cpu [default: max_cpu]]
      --single-threaded
          Overrides threads [env: DBT_SINGLE_THREADED=]
      --write-json
          Write JSON artifacts to disk [env: DBT_WRITE_JSON=]. Use --no-write-json to suppress writing JSON artifacts [env: DBT_WRITE_JSON=]
      --defer
          [env: DBT_DEFER=]
      --state <STATE>
          Unless overridden, use this state directory for both state comparison and deferral [env: DBT_STATE=]
      --log-path <LOG_PATH>
          Set 'log-path' for the current run, overriding 'DBT_LOG_PATH' [env: DBT_LOG_PATH=]
      --log-format <LOG_FORMAT>
          Set logging format; use --log-format-file to override [env: DBT_LOG_FORMAT=] [default: text] [possible values: text, json, fancy]
      --log-format-file <LOG_FORMAT_FILE>
          Set log file format, overriding the default and --log-format setting [env: DBT_LOG_FORMAT_FILE=] [possible values: text, json, fancy]
      --log-level <LOG_LEVEL>
          Set minimum severity for console/log file; use --log-level-file to set log file severity separately [env: DBT_LOG_LEVEL=]
      --log-level-file <LOG_LEVEL_FILE>
          Set minimum log file severity, overriding the default and --log-level setting [env: DBT_LOG_LEVEL_FILE=]
      --send-anonymous-usage-stats
          [env: DBT_SEND_ANONYMOUS_USAGE_STATS=]
      --show [<SHOW>...]
          Show produced artifacts [default: 'progress']
           [possible values: progress, progressrun, progressparse, progressrender, progressanalyze, inputfiles, manifest, schedule, nodes, instructions, sourcedschemas, schema, data, stats, lineage, all, none, rawlineage, taskgraph]
  -h, --help
          Print help
  -V, --version
          Print version

Use `dbt <COMMAND> --help` to learn more about the options for each command.

試しに、dbtf debugコマンドを実行すると下記のように表示されました。(一部マスキングしています。)

$ dbtf debug
dbt-fusion 2.0.0-beta.34
   Loading ~/.dbt/profiles.yml
 Debugging profile: dev
 Debugging dbt version: 2.0.0-beta.34
 Debugging platform: linux x86_64 (unix)
 Debugging adapter type: snowflake (remote)
 Debugging dependencies:
  git: OK
 Debugging connection:
  "role": "sagara_admin_role",
  "schema": "dbt_ssagara",
  "account": "xxxxxxxxxx.ap-northeast-1.aws",
  "warehouse": "sagara_dbt_dev_wh",
  "database": "sagara_jaffle_shop_japanese",
  "user": "xxxxxxxxx"
 Debugging connection test: OK
  Debugged All checks passed!
  Finished 'debug' target 'dev' in 2s 125ms 455us 684ns

dbt Fusionに対応したdbt Labs公式のVS Code拡張機能をインストール

dbt Fusionのリリースに合わせて公式からもVS Codeの拡張機能が提供されていますので、インストールしてみます。

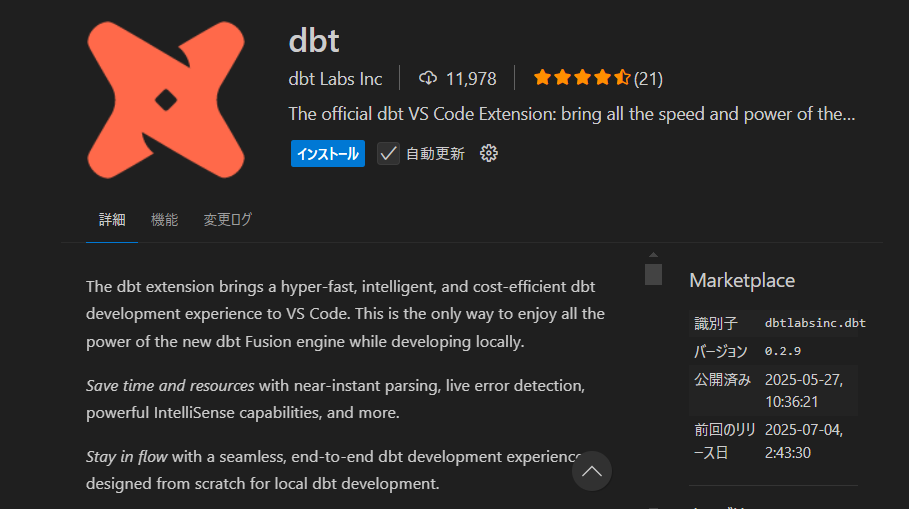

VS Codeを開き、dbtなど検索を行い、下図の拡張機能をインストールします。

2025-07-08_17h47_28

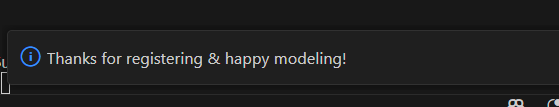

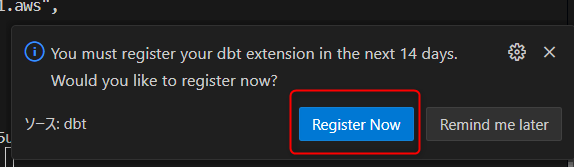

インストールすると、右下に下図のポップアップが出てくるため、Register Nowで対応します。この後に一度VS Codeを再起動すれば、拡張機能のインストールも完了です。

2025-07-08_17h48_20

2025-07-08_17h48_40

VS Code拡張機能を使って出来ることを確認してみる

公式のVS Code拡張機能を使って出来ることを確認してみます。

※すべての機能は紹介しません、詳細はVS Code拡張機能の公式ページをご確認ください。

https://marketplace.visualstudio.com/items?itemName=dbtLabsInc.dbt

モデルレベルのリネージ

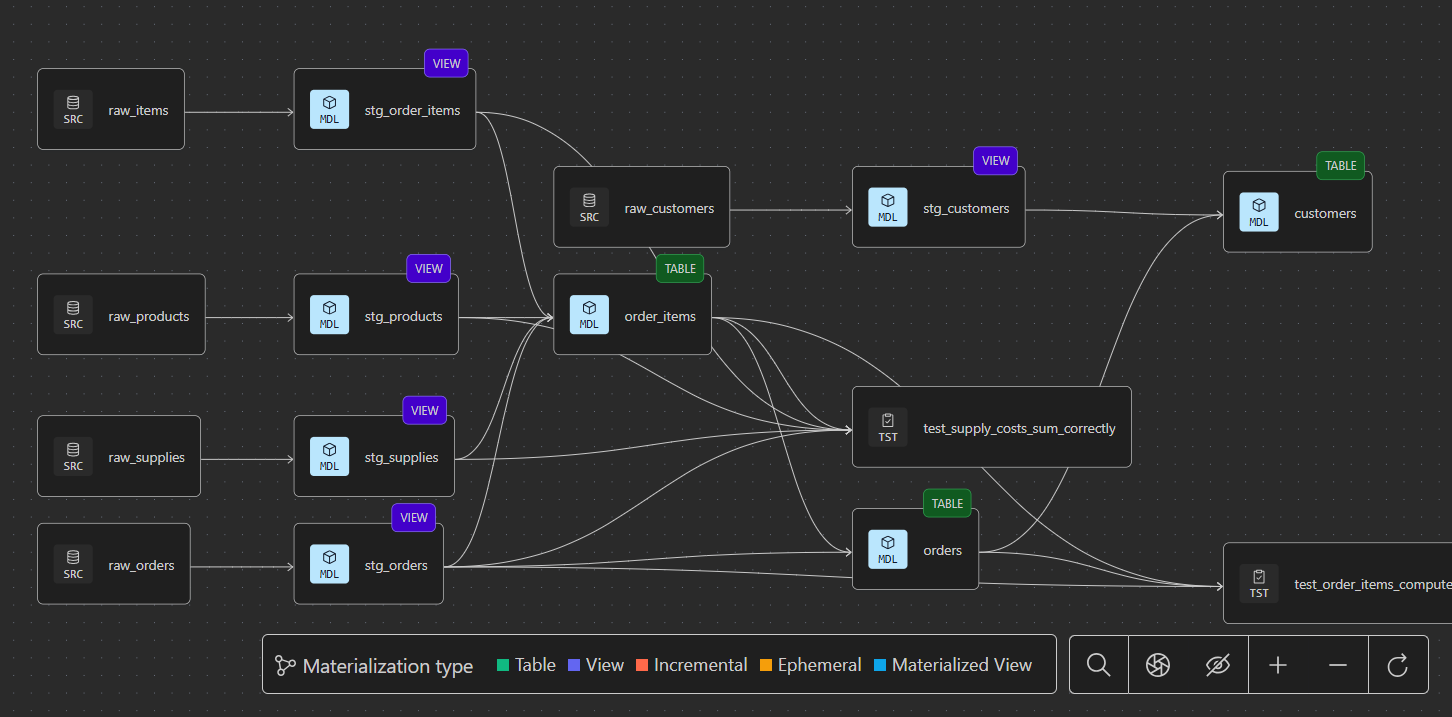

任意のモデルを開くと、モデルレベルのリネージを表示できます。

2025-07-08_17h54_44

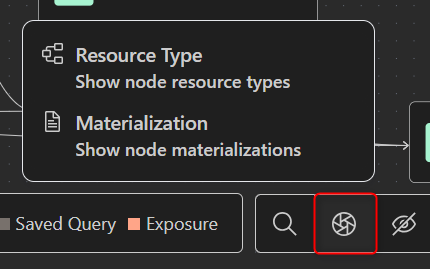

右下のアイコンを変更することで、Resource typeを表示するか、Materializationを表示するか、切り替える事が可能です。

2025-07-08_17h56_28

2025-07-08_17h56_49

カラムレベルのリネージ

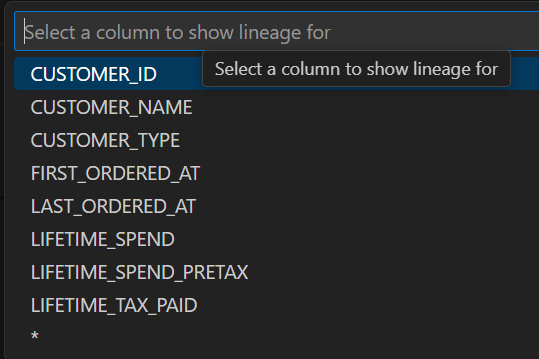

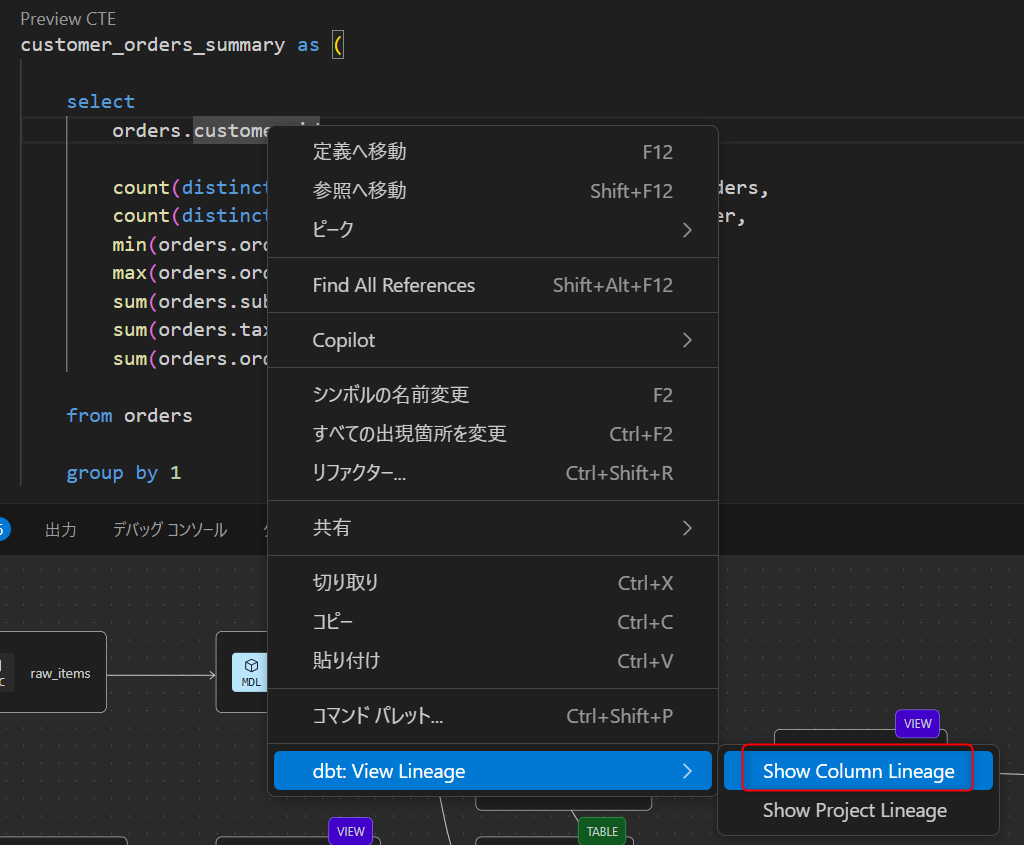

エディター上で右クリックを行いShow Column Lineageを押し、任意のカラムを選択します。

2025-07-08_18h07_09

2025-07-08_18h08_12

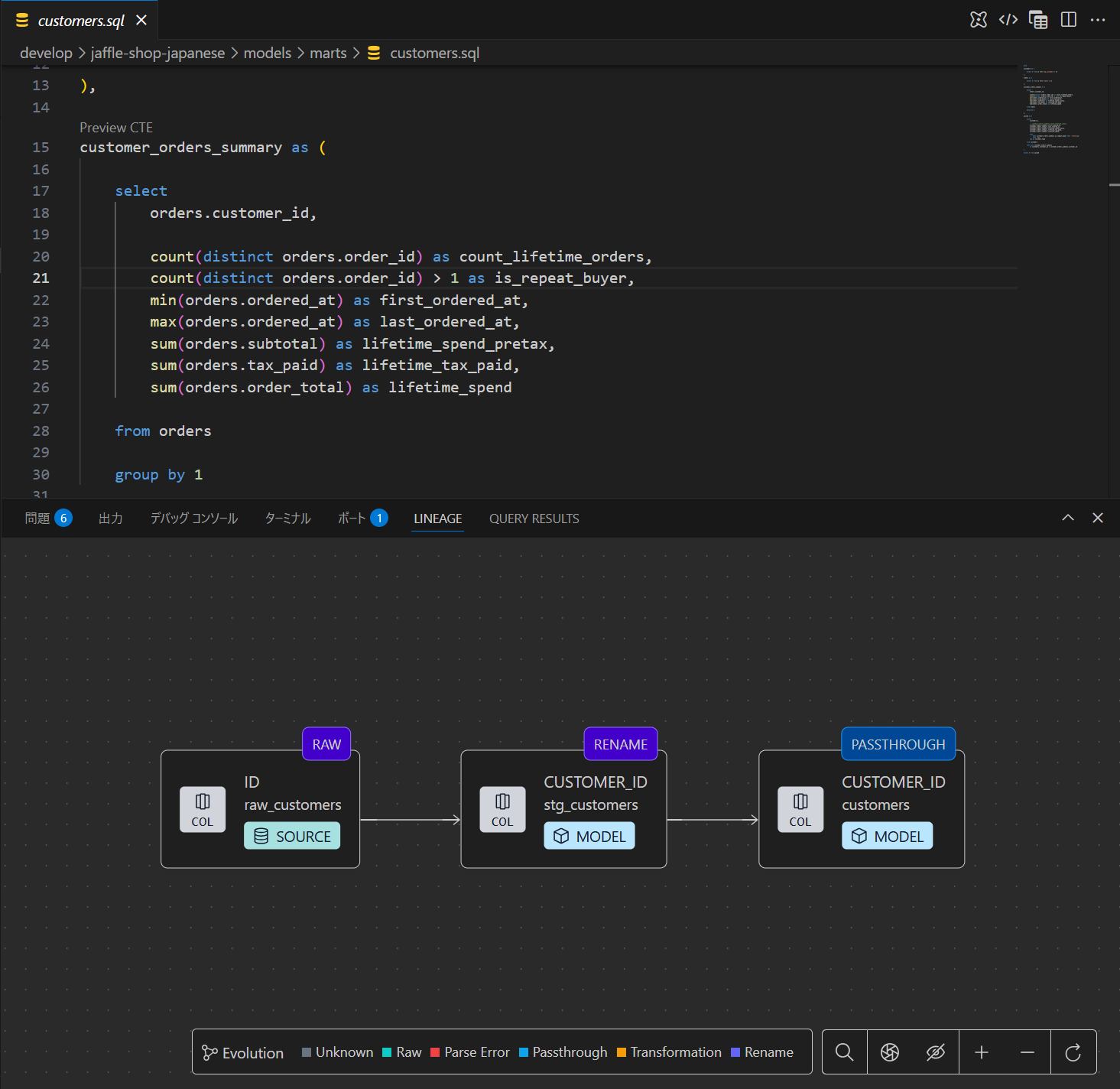

すると、カラムレベルのリネージが表示されました!RenameTransformationが行われているかどうかがわかるのもすごいですね…!

2025-07-08_18h08_55

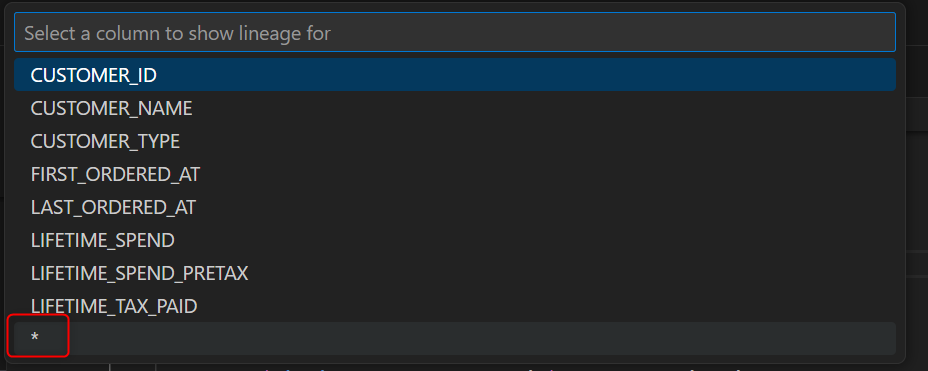

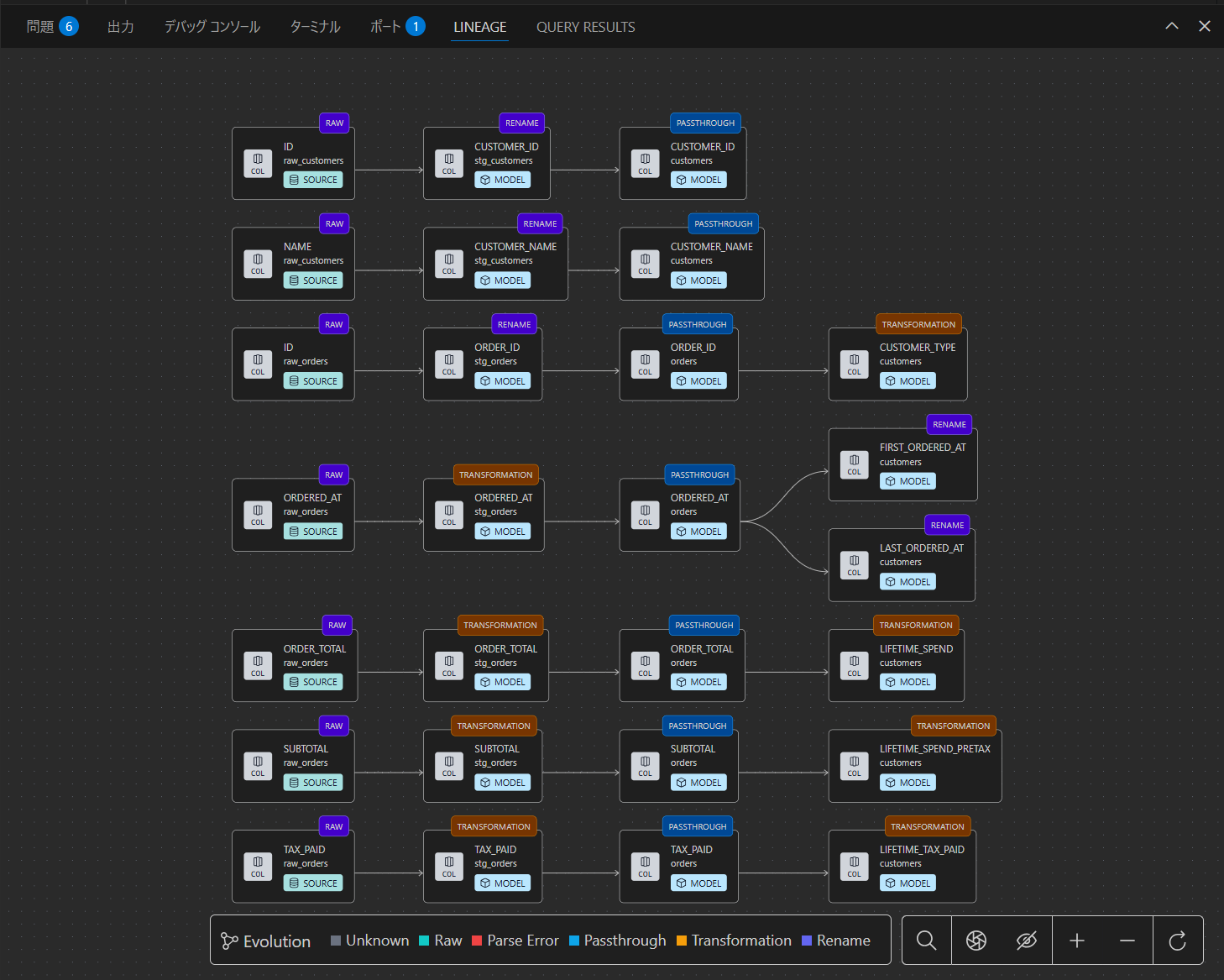

また、エディター上で右クリックを行いShow Column Lineageを押したあとに*を選択すると、開いているモデルの全カラムについて、カラムレベルのリネージが表示されます。

2025-07-08_18h14_43

2025-07-08_18h15_06

入力候補の自動補完

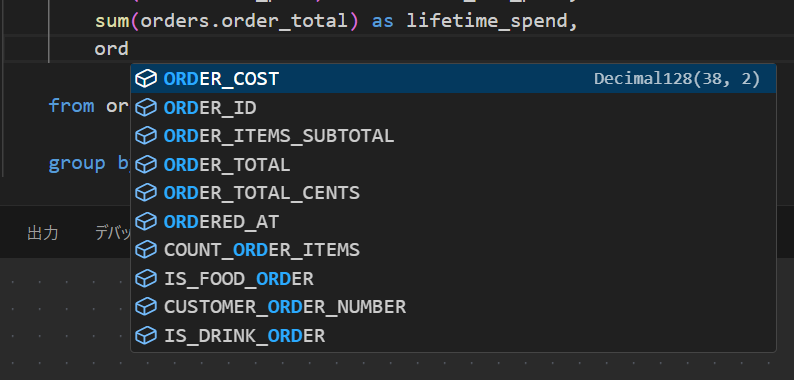

エディター上で入力を進めると、想定されるカラム名の候補が自動で表示されます。

2025-07-08_18h11_31

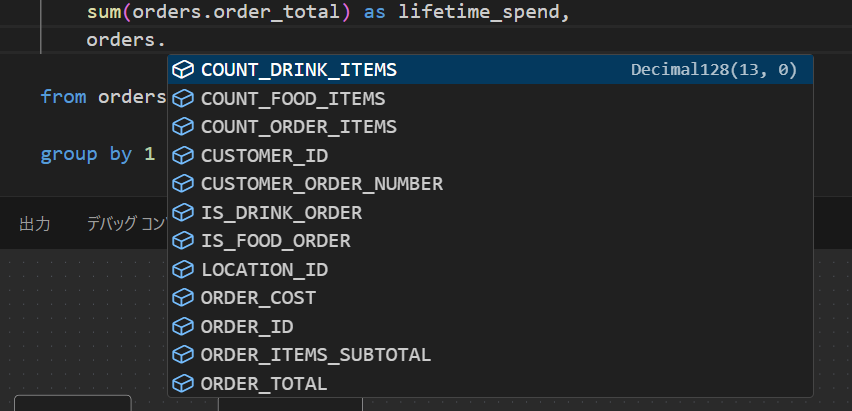

orders.のようにテーブル名までをいれると、ordersに含まれるカラムだけが候補として表示されます。

2025-07-08_18h12_19

DWH/DBにクエリを発行せずにクエリエラーを検知

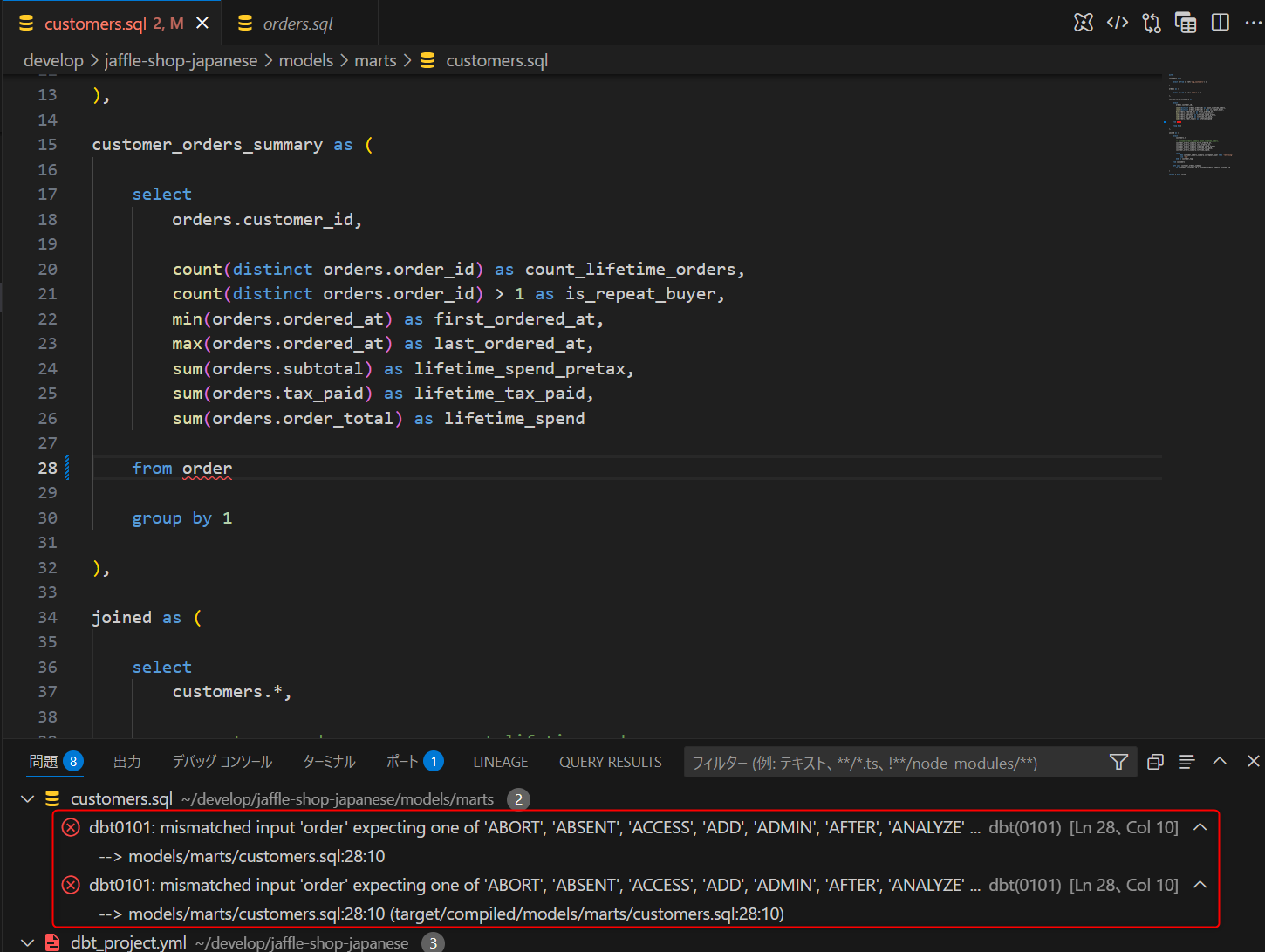

例えば、テーブル名を存在しないorderに変更してみると、下図のようにエラーを自動で検知してくれます。

2025-07-08_18h18_07

テーブルやカラムの定義元へのリンク

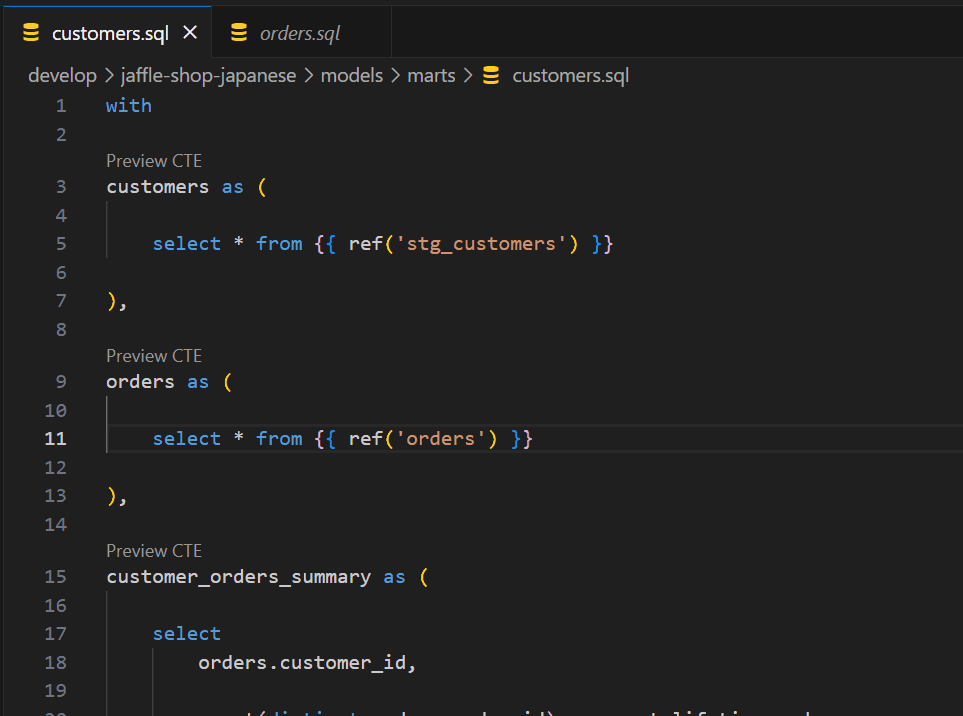

例えば、ref関数で定義しているところに右クリックを押して定義へ移動を押すと、対象のModelファイルの定義にリンクします。

refからリンク

また、カラム名に対してこの定義へ移動を行うと、そのカラムが定義されている箇所がselect *であってもリンクします!これは凄い…

カラムからリンク

モデル名やカラム名を変更した際に自動で影響があるファイルの修正(リファクタリング)

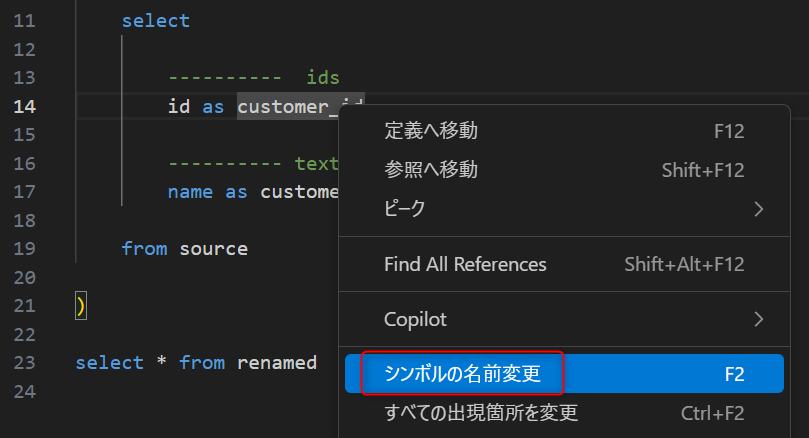

例えば、stg_customers.sqlでカラム名をcustomer_id_idと変更したいと考えます。右クリックを押し、シンボルの名前変更を選択します。

2025-07-08_18h33_12

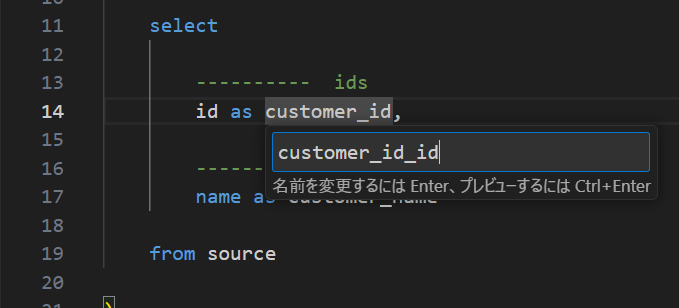

その後、カラム名をcustomer_id_idと入力し、Enterを押します。

2025-07-08_18h34_01

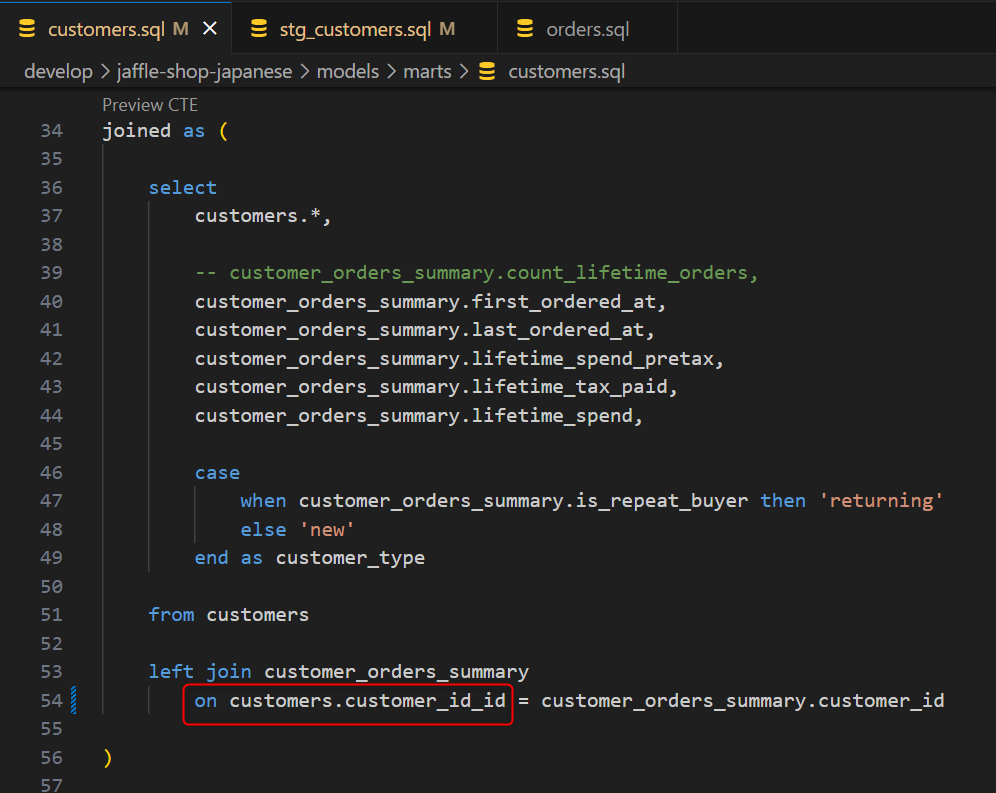

すると、後続のcustomers.sqlにおいて、customer_idを参照するところがcustomer_id_idに変更されていました!

2025-07-08_18h36_06

CTEのプレビュー

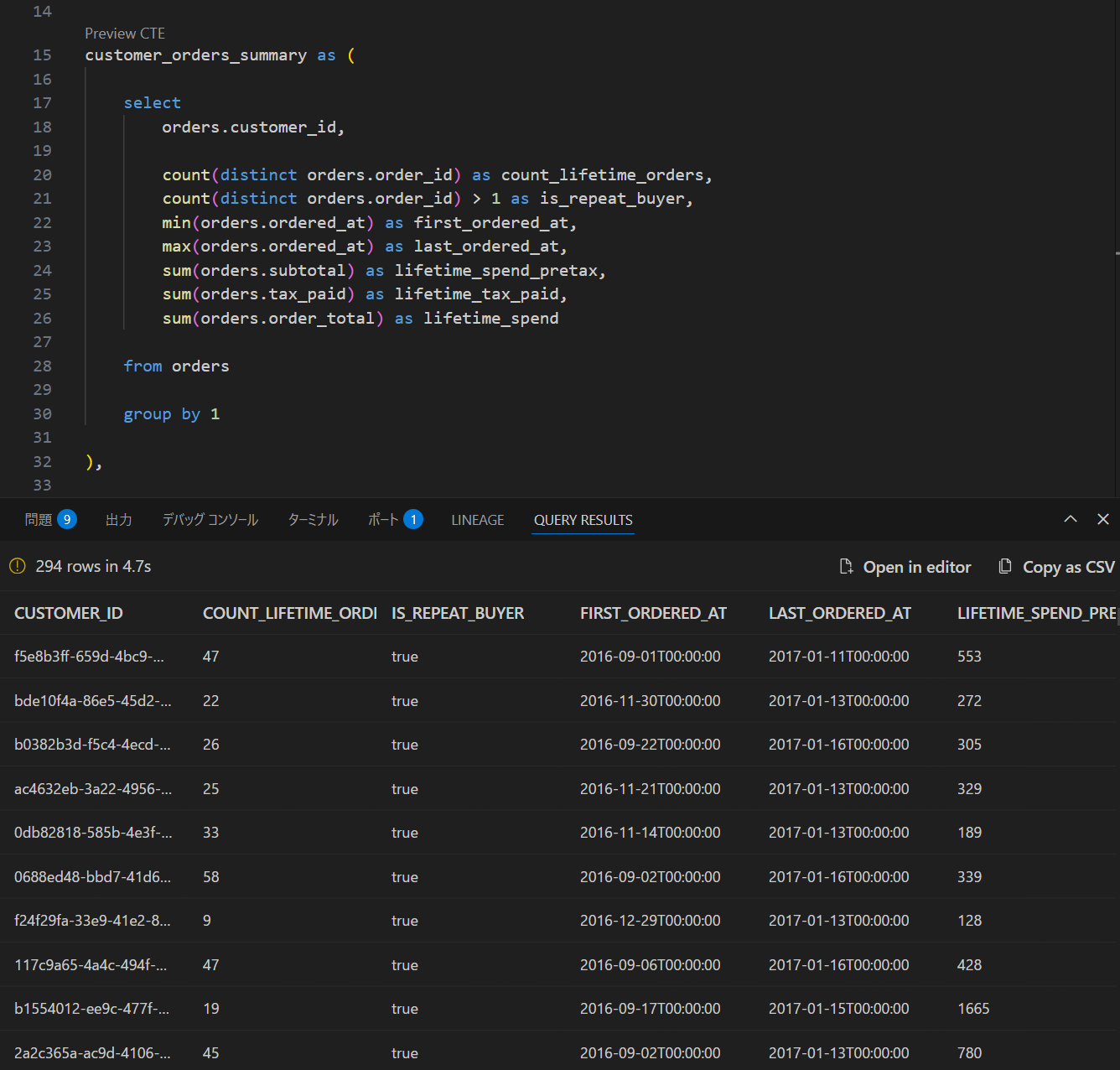

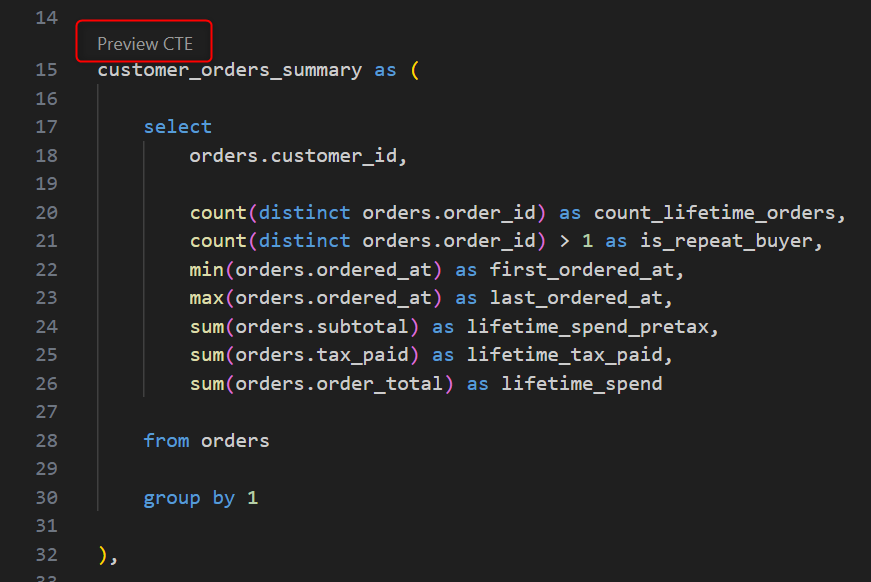

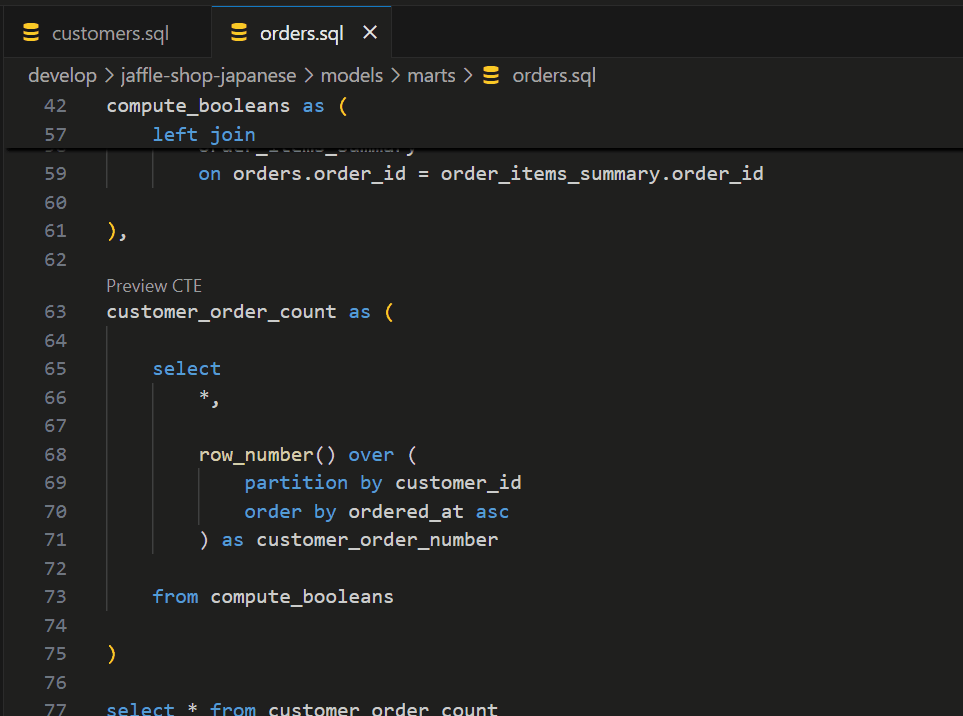

SQLエディター上にあるPreview CTEを押すと、そのCTEについてクエリを実行して結果を見ることが出来ます。

2025-07-08_18h39_48

2025-07-08_18h40_21

最後に

dbt Core 1.9で動いていた既存リポジトリをdbt Fusion × dbt公式VS Code拡張機能で動かしてみました。

想像以上にdbt Fusionの動作が早く、クエリエラーの自動検知、事前情報として得ていたカラムレベルリネージ、CTEのプレビュー、などの機能も違和感なく使うことができました。特に、「右クリックを押して定義へ移動」と自動リファクタリング機能に驚きましたね…これは本当に便利ですね。

一方で、dbt FusionはまだBeta版で使用できない機能も多くありますので、その点だけご注意ください。ただ、Beta版でここまでの魅力を感じるdbt Fusionの今後が更に楽しみになりました!!
