CloudFormation によって EC2 Image Builder のリソースを作成できるようになりました。
Component のみならず Image Pipeline 全体までコードで管理できるようになったため、より利便性が向上しそうです。
EC2 Image Builder now includes support for AWS CloudFormation
EC2 Image Builderとは
EC2 Image Builder は EC2 のイメージの作成・更新を専用のパイプラインによって簡素化・迅速化する AWS サービスです。
サービスの詳細についてはリリース当時のブログや公式ページなどをご参照ください。
EC2のイメージ作成を劇的に効率化するEC2 Image Builderが発表されました!
EC2 Image Builder(AWS公式ページ)
やってみた
こちらのブログで書いたような Image Pipeline を作成するテンプレートを書いてみました。
OS(ディストリビューション)には Amazon Linux 2 を指定しています。
サンプルテンプレート
AWSTemplateFormatVersion: 2010-09-09
Resources:
Pipeline:
Type: AWS::ImageBuilder::ImagePipeline
Properties:
ImageRecipeArn: !Ref Recipe
InfrastructureConfigurationArn: !Ref InfrastructureConfiguration
Name: CFn-Pipeline
InfrastructureConfiguration:
Type: AWS::ImageBuilder::InfrastructureConfiguration
Properties:
InstanceProfileName: !Ref InstanceProfile
InstanceTypes: []
Name: CFn-InfrastructureConfiguration
SecurityGroupIds: []
TerminateInstanceOnFailure: True
InstanceProfile:
Type: AWS::IAM::InstanceProfile
Properties:
InstanceProfileName: ImageBuilderInstanceProfile
Roles:
- EC2ImageBuilder
Component:
Type: AWS::ImageBuilder::Component
Properties:
Data: |
name: InstallApache
description: InstallApache
schemaVersion: 1.0
phases:
- name: build
steps:
- name: UpdateOS
action: UpdateOS
- name: InstallApache
action: ExecuteBash
inputs:
commands:
- sudo yum -y install httpd
- sudo systemctl enable httpd
- name: validate
steps:
- name: CheckApache
action: ExecuteBash
inputs:
commands:
- rpm -qi httpd
- name: test
steps:
- name: TestApache
action: ExecuteBash
inputs:
commands:
- sudo systemctl status httpd
Name: CFn-Component
Platform: Linux
Version: 1.0.0
Recipe:
Type: AWS::ImageBuilder::ImageRecipe
Properties:
Components:
- ComponentArn: !Ref Component
Name: CFn-Recipe
ParentImage: arn:aws:imagebuilder:ap-northeast-1:aws:image/amazon-linux-2-x86/2020.4.7
Version: 1.0.0
注意点
- テンプレート内で使用しているIAMロール
EC2ImageBuilder
はテンプレート外で作成されており、下記の AWS 管理ポリシーが割り当てられています。- EC2InstanceProfileForImageBuilder
- AmazonSSMManagedInstanceCore
- リソース
Type: AWS::ImageBuilder::ImageRecipe
のParentImage
には下記のいずれかを設定する必要があります。- EC2 Image Builder によって提供されている Managed Images(後述) の ARN
- SSM Agent がインストールされたカスタムイメージの AMI ID
Managed Images の探し方

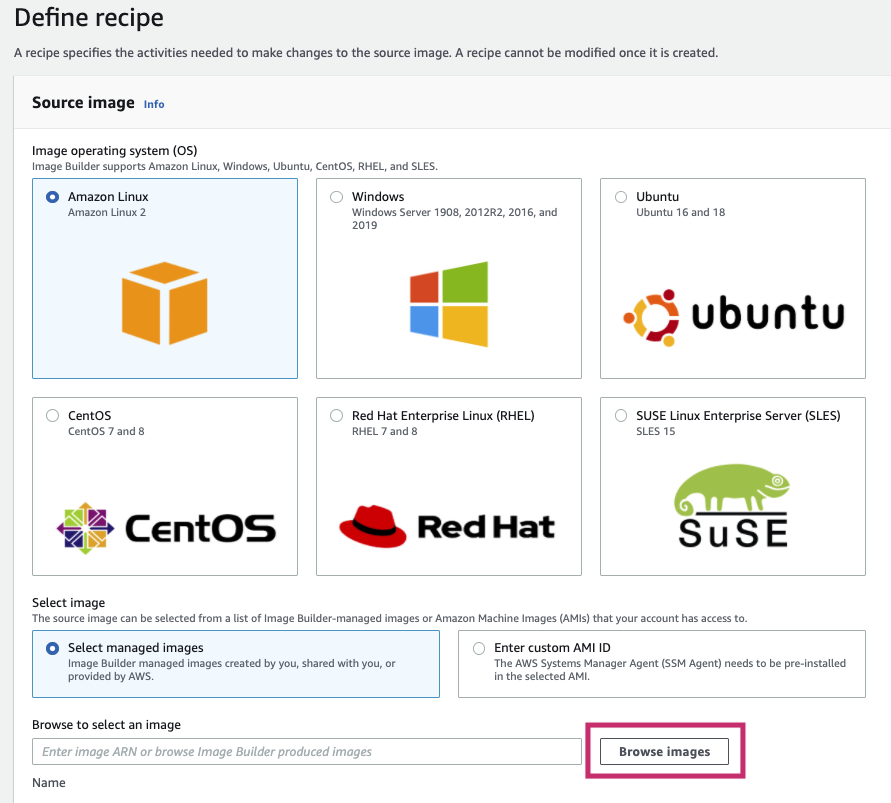

マネージメントコンソールから
対象OSを選択しBrowse images
をクリックすることで一覧できます。
AWS CLIから
aws imagebuilder list-images
コマンド(list-images)をお使いください。
たとえば、 AWS によって提供されている Linux の Managed Images を探す場合は下記のとおりです。
$ aws imagebuilder list-images --owner Amazon --filters "name=platform,values=Linux" --query "imageVersionList[*].[name,arn,version]" --output table
------------------------------------------------------------------------------------------------------------------------------------------------------
| ListImages |
+--------------------------------------+-----------------------------------------------------------------------------------------------+-------------+
| Amazon Linux 2 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/amazon-linux-2-x86/2019.11.21 | 2019.11.21 |
| Amazon Linux 2 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/amazon-linux-2-x86/2020.1.8 | 2020.1.8 |
| Amazon Linux 2 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/amazon-linux-2-x86/2020.2.13 | 2020.2.13 |
| Amazon Linux 2 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/amazon-linux-2-x86/2020.3.7 | 2020.3.7 |
| Amazon Linux 2 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/amazon-linux-2-x86/2020.4.7 | 2020.4.7 |
| CentOS Linux 7 Minimal x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/centos-linux-7-minimal-x86/2020.3.9 | 2020.3.9 |
| Red Hat Enterprise Linux 7 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/red-hat-enterprise-linux-7-x86/2018.8.15 | 2018.8.15 |
| Red Hat Enterprise Linux 8 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/red-hat-enterprise-linux-8-x86/2019.6.19 | 2019.6.19 |
| SUSE Linux Enterprise Server 15 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/suse-linux-enterprise-server-15-x86/2020.4.13 | 2020.4.13 |
| SUSE Linux Enterprise Server 15 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/suse-linux-enterprise-server-15-x86/2020.5.1 | 2020.5.1 |
| SUSE Linux Enterprise Server 15 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/suse-linux-enterprise-server-15-x86/2020.5.2 | 2020.5.2 |
| SUSE Linux Enterprise Server 15 x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/suse-linux-enterprise-server-15-x86/2020.5.7 | 2020.5.7 |
| Ubuntu Server 16 LTS x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/ubuntu-server-16-lts-x86/2020.4.29 | 2020.4.29 |
| Ubuntu Server 16 LTS x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/ubuntu-server-16-lts-x86/2020.4.9 | 2020.4.9 |
| Ubuntu Server 18 LTS x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/ubuntu-server-18-lts-x86/2020.4.9 | 2020.4.9 |
| Ubuntu Server 18 LTS x86 | arn:aws:imagebuilder:ap-northeast-1:aws:image/ubuntu-server-18-lts-x86/2020.5.7 | 2020.5.7 |
+--------------------------------------+-----------------------------------------------------------------------------------------------+-------------+
参考
ImageBuilder Resource Type Reference
