RDS for SQL Server Standard Edition から Enterprise Edition に変更するには、スナップショットから復元する必要があります。
Clock Icon2025.05.07

コーヒーが好きな emi です。

RDS for SQL Server では、一部の機能が Enterprise Edition でしかサポートされていない場合があります。
https://docs.aws.amazon.com/ja_jp/prescriptive-guidance/latest/evaluate-downgrading-sql-server-edition/compare.html

RDS for SQL Server の BCP 対策を検討する中でリードレプリカも視野に入れたのですが、RDS for SQL Server の場合、リードレプリカは Enterprise Edition でのみサポートされています。
https://docs.aws.amazon.com/ja_jp/AmazonRDS/latest/UserGuide/SQLServer.ReadReplicas.html

RDS for SQL Server Standard Edition から Enterprise Edition に変更するには、スナップショットから復元する必要があります。
https://repost.aws/ja/knowledge-center/rds-sql-server-change-engine-edition

本ブログでは RDS for SQL Server Standard Edition から Enterprise Edition への変更を検証してみました。

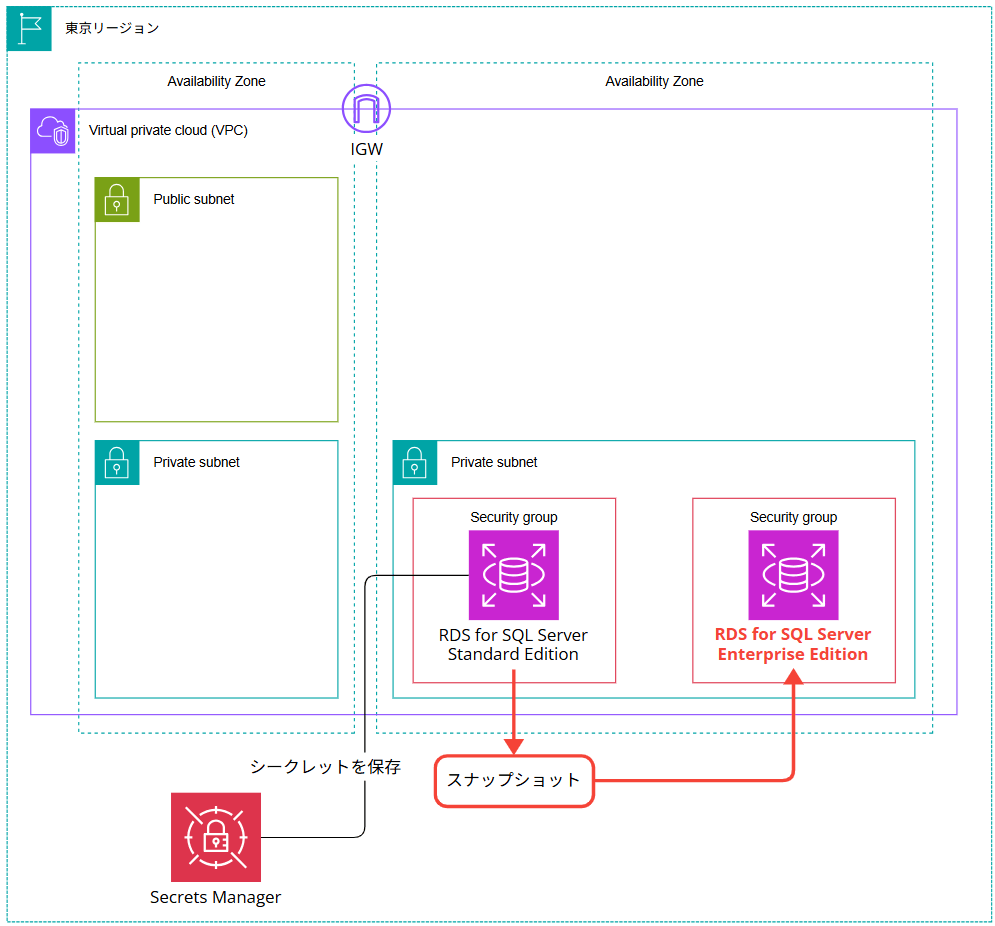

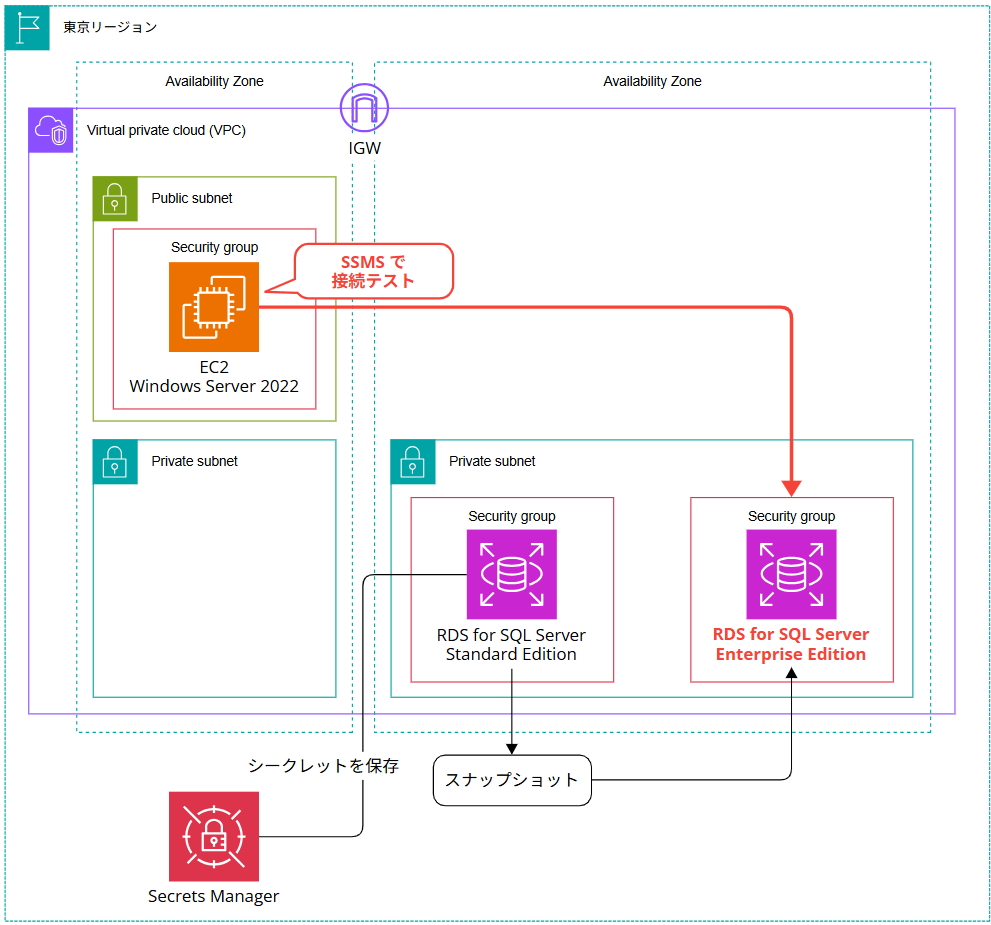

構成図

AD 環境ではない WORKGROUP 環境で検証しました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_2

0. 事前準備

  • VPC を作成しておいてください。今回は私の検証環境にあらかじめ作成しておいた VPC を使用します。
  • DB サブネットグループも作成しておきました。

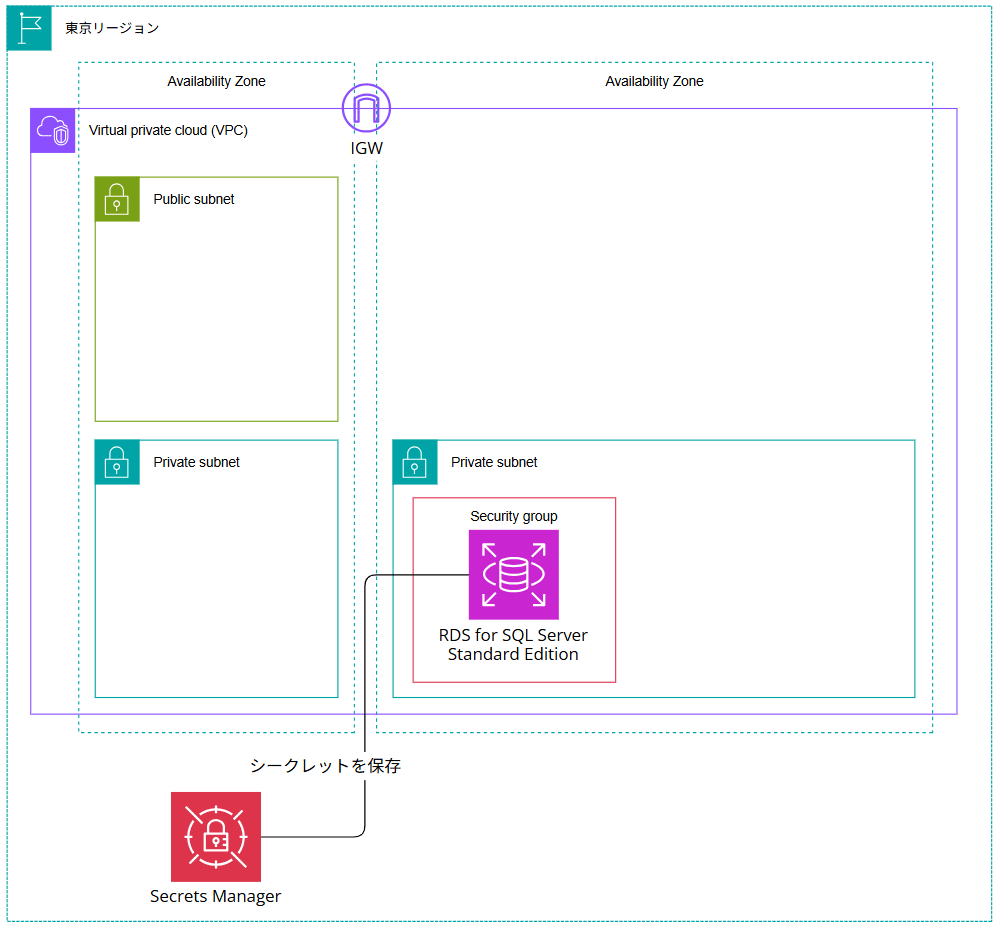

  • 2. クロスリージョン自動バックアップを設定 を参考に、RDS for SQL Server Standard Edition インスタンスを作成しておきます。

changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_32

1. スナップショットから RDS for SQL Server Enterprise Edition を作成

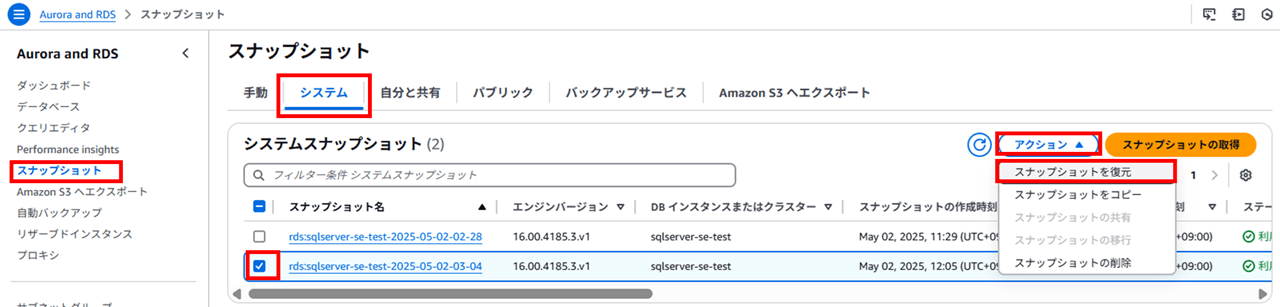

スナップショットから復元します。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_34

自動バックアップとスナップショットの違いは以下の FAQ の 「自動化バックアップと DB スナップショットの違いは何ですか?」 のセクションを参考にしてください。
https://aws.amazon.com/jp/rds/faqs/

changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_1

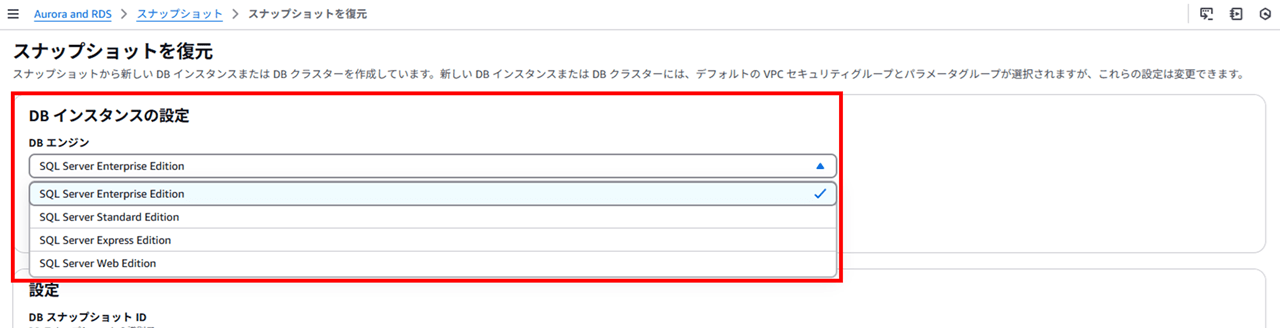

スナップショットから復元すると、DB エンジンのエディションが選択できます。ここで、Enterprise Edition を選択します。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_3

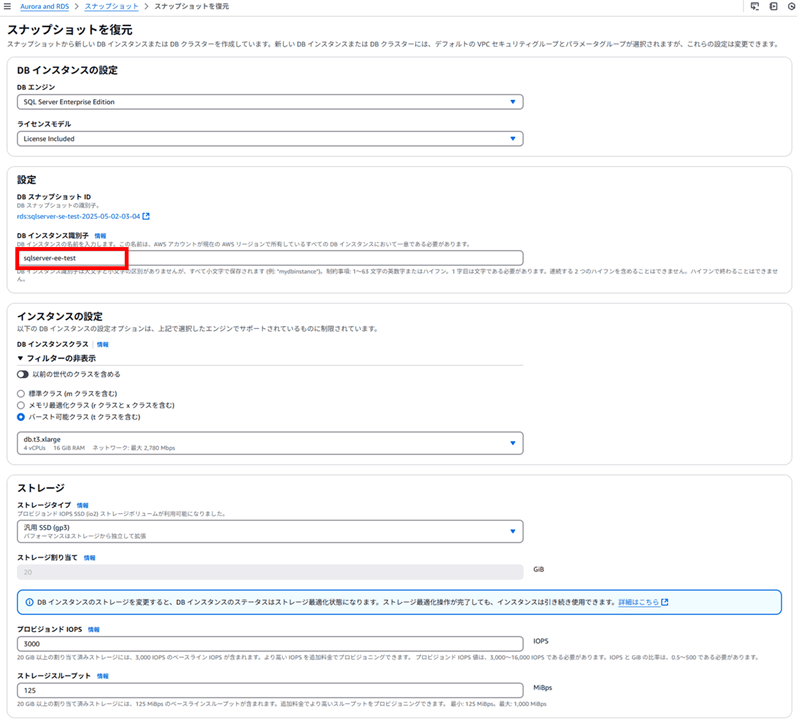

DB インスタンス識別子に、Enterprise Edition であることが分かりやすいように ee と入れました。他は画像の通り設定します。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_4

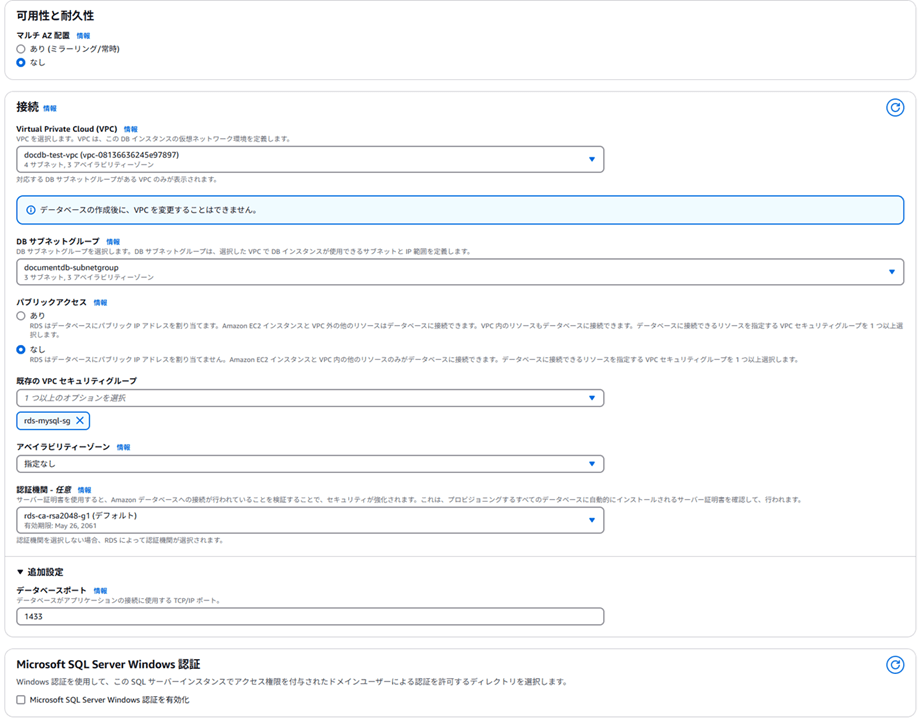

可用性と耐久性は以下のように設定します。セキュリティグループは後で変更します。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_5

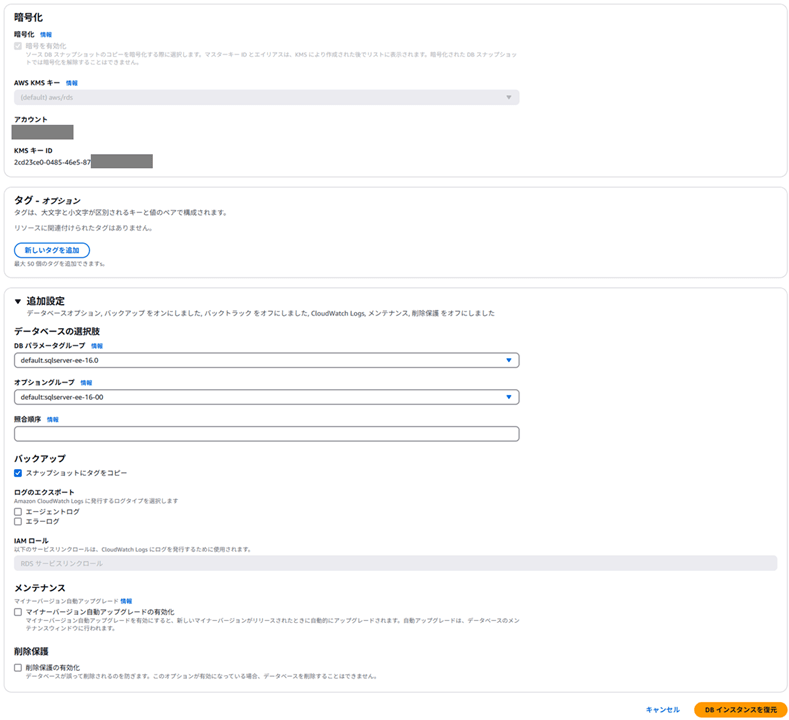

暗号化の部分はグレーアウトしており変更できませんでした。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_6

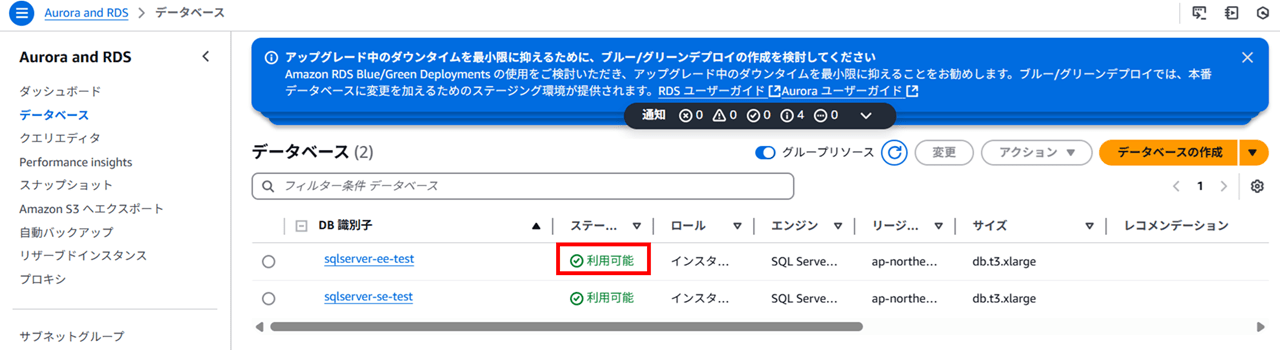

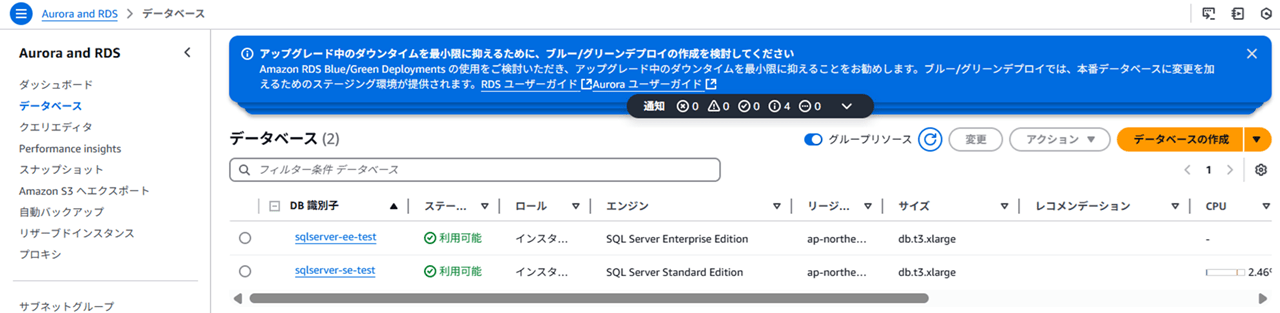

DB インスタンスを復元します。10~20分程度で利用可能になりました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_7

2. 設定の確認

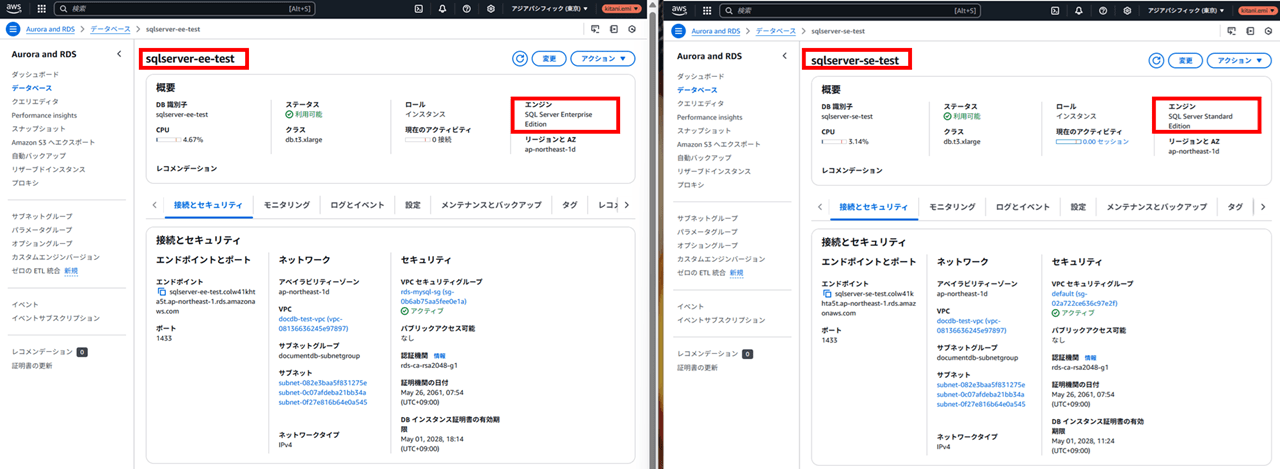

左が復元した Enterprise Edition、右が元になった Standard Edition です。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_8

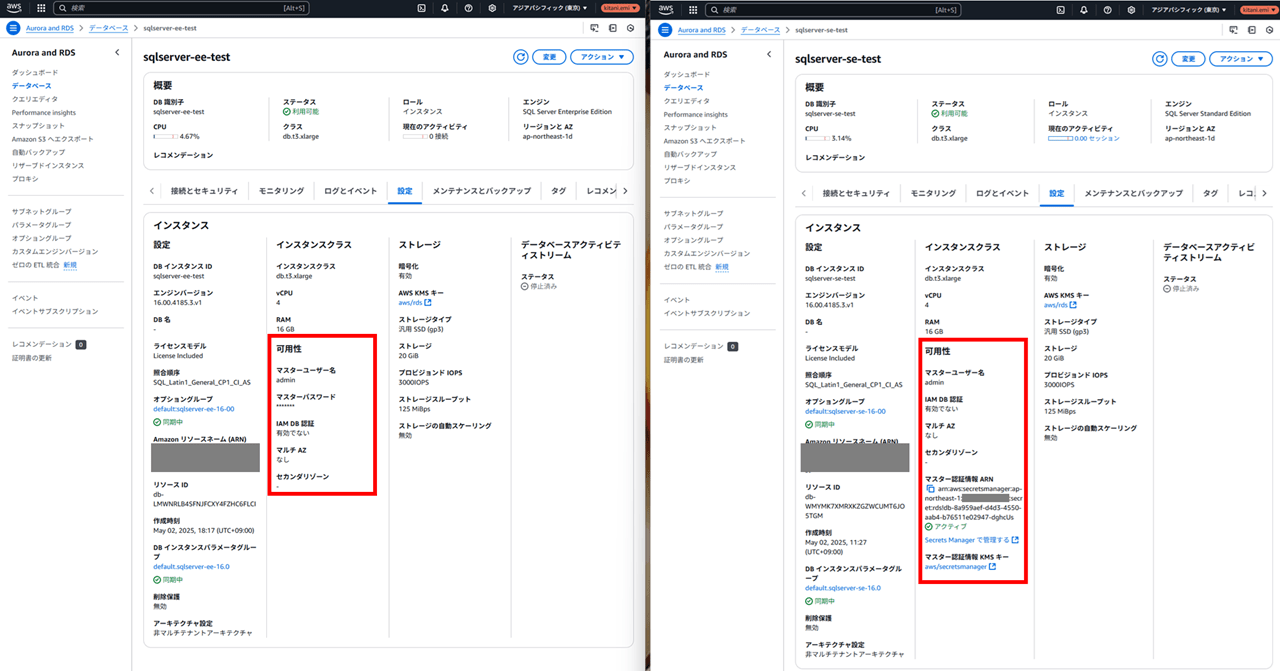

設定タブを見ると、復元した Enterprise Edition の方はマスターパスワードがセルフマネージドになっていました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_9

3. 復元した RDS for SQL Server Enterprise Edition のマスターパスワードを確認する

復元した RDS for SQL Server Enterprise Edition のマスターパスワードを確認します。

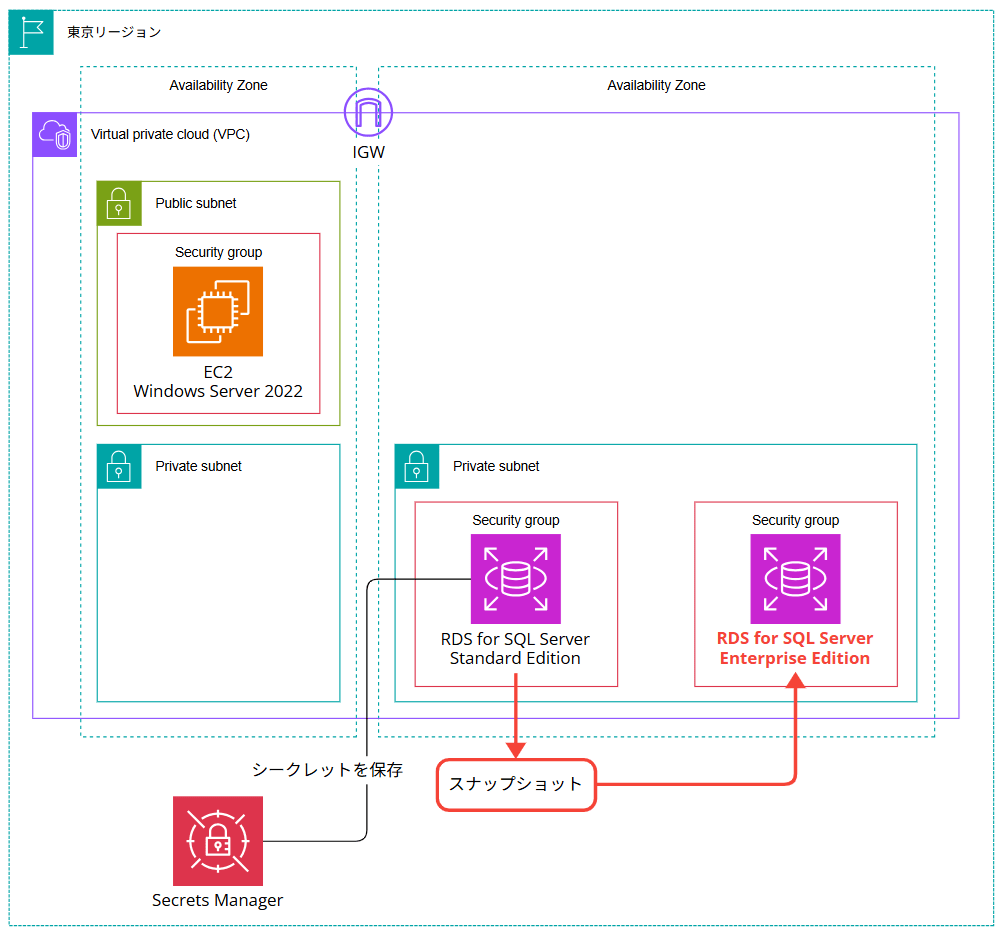

(構成図では AZ を跨いでしまっていますが、通信料金が発生しますので同じ AZ を使った方が良かったです)
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_33

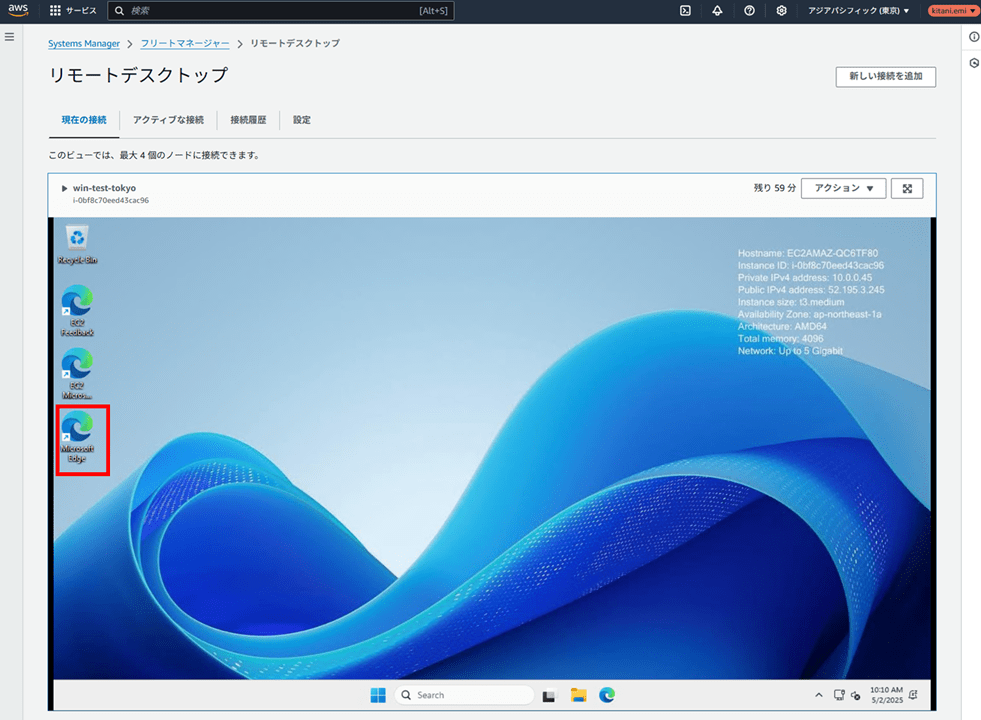

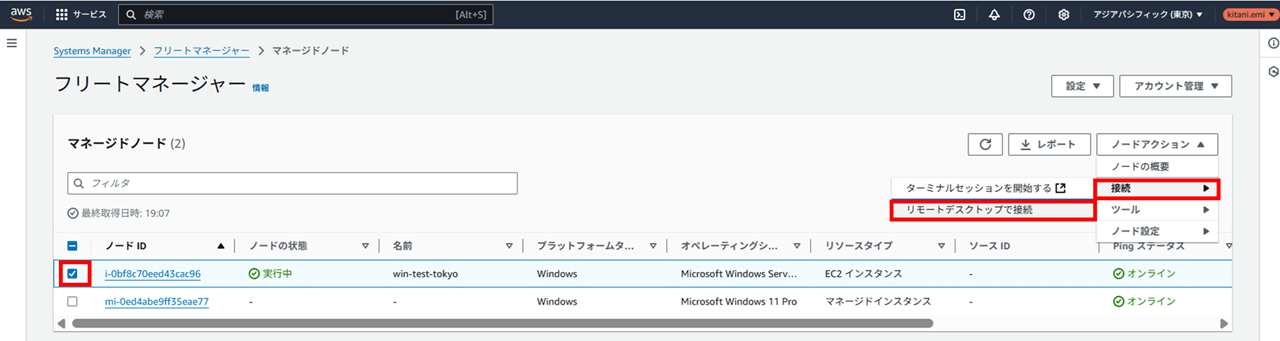

EC2 インスタンスで Windows Server 2022 を構築し、SSM フリートマネージャーで RDP 接続します。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_10

SQL Server に接続するために、 SQL Server Management Studio (SSMS) をインストールしておきます。
Windows Server 2022 で Edge を使い、以下のダウンロードページを開いてください。
https://learn.microsoft.com/ja-jp/sql/ssms/download-sql-server-management-studio-ssms?view=sql-server-ver16
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_11

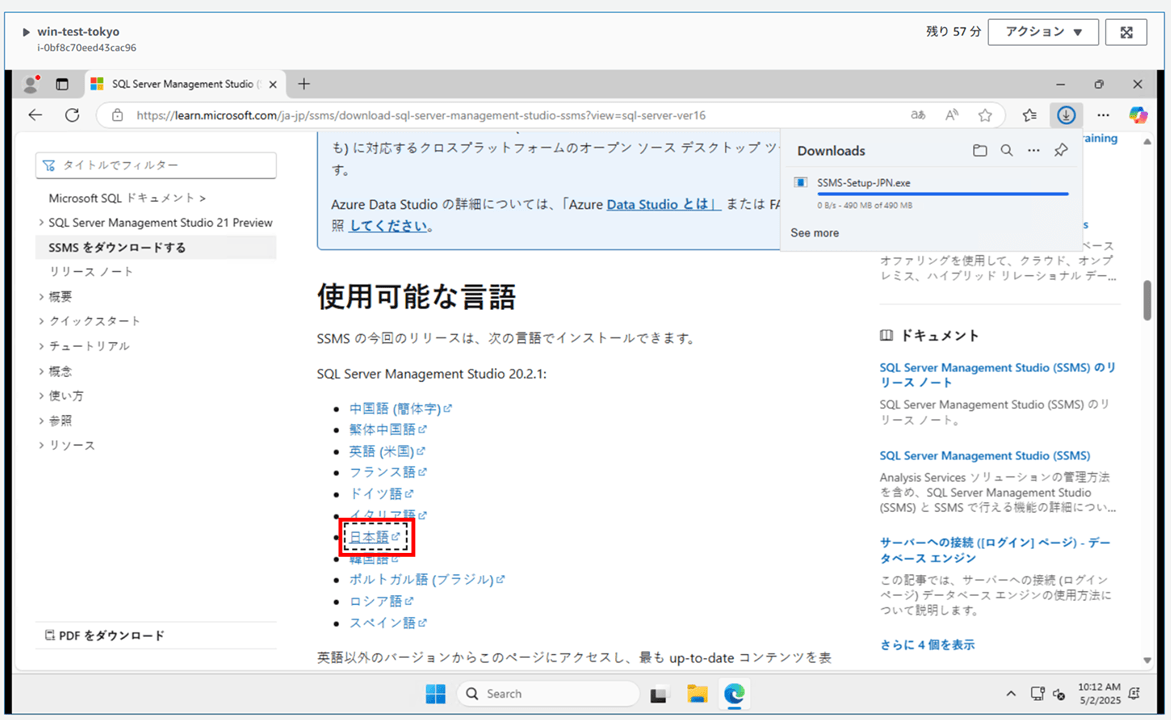

ダウンロードページで、日本語版の SSMS をダウンロードします。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_12

デフォルトのディレクトリにインストールします。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_13

SSMS を開きます。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_14

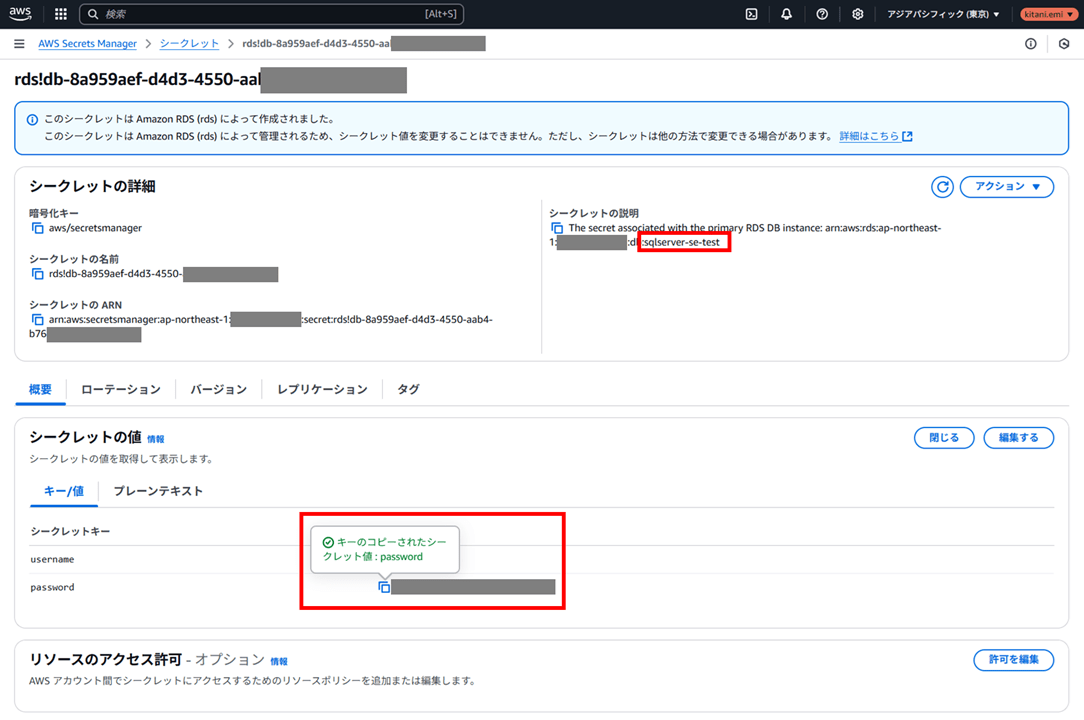

接続情報として、Secrets Manager 画面を開き、復元もととなった RDS for SQL Server Standard Edition のシークレット情報を取得しておきます。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_16

SSMS で以下のように入力します。

  • Server name:復元した RDS for SQL Server Enterprise Edition のエンドポイント
  • Authentication:SQL Server Authentication
  • Login:復元もととなった RDS for SQL Server Standard Edition のシークレット情報
  • Password:復元もととなった RDS for SQL Server Standard Edition のシークレット情報
  • Trust server certificate にチェックする

changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_15

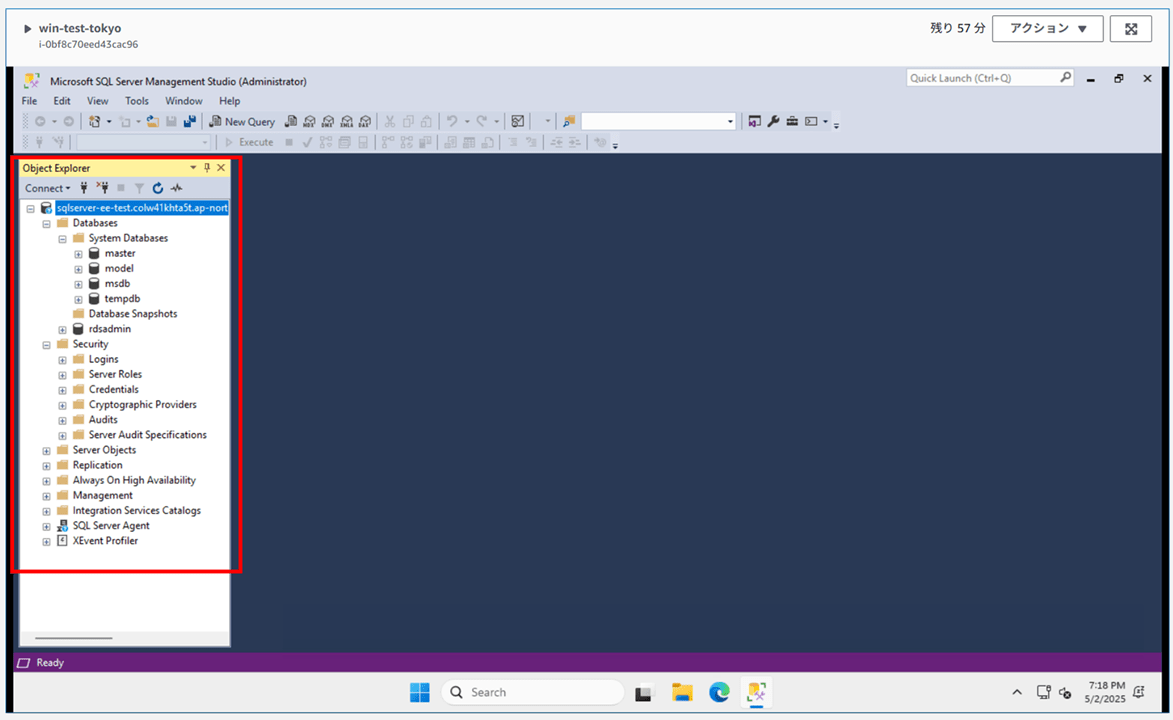

接続できました。復元した RDS for SQL Server Enterprise Edition インスタンスのマスター認証情報は、復元もととなった RDS for SQL Server Standard Edition のシークレット情報がセルフマネージド形式で使える状態であることが確認できました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_17

一旦 SSMS の接続を切っておきます。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_18

4. 復元した RDS for SQL Server Enterprise Edition のマスターパスワードを Secrets Manager 管理に変更する

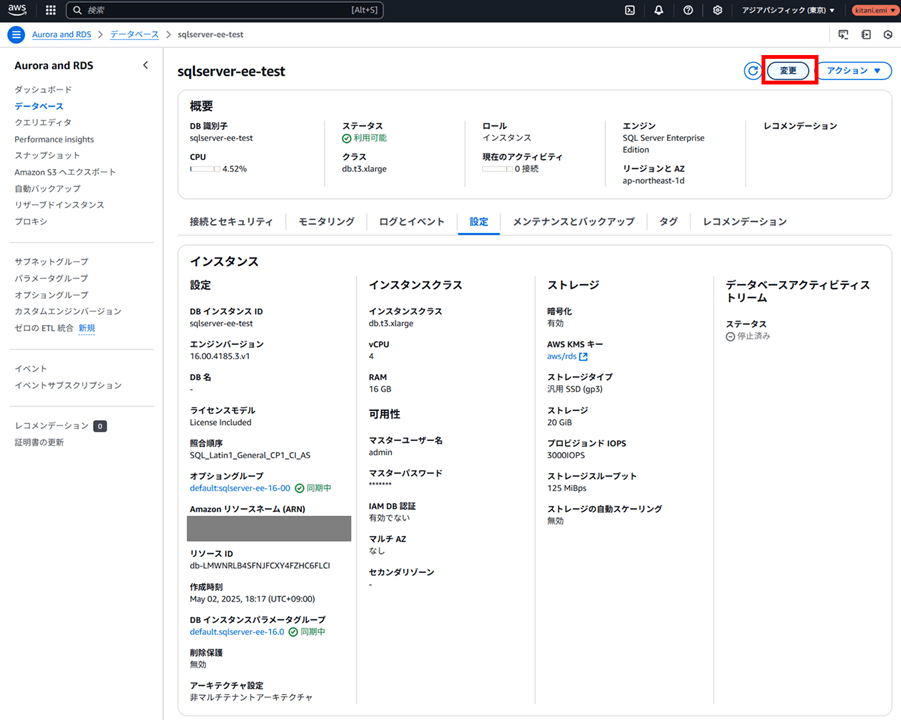

復元した RDS for SQL Server Enterprise Edition のマスターパスワードを Secrets Manager 管理に変更します。「変更」 をクリックします。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_21

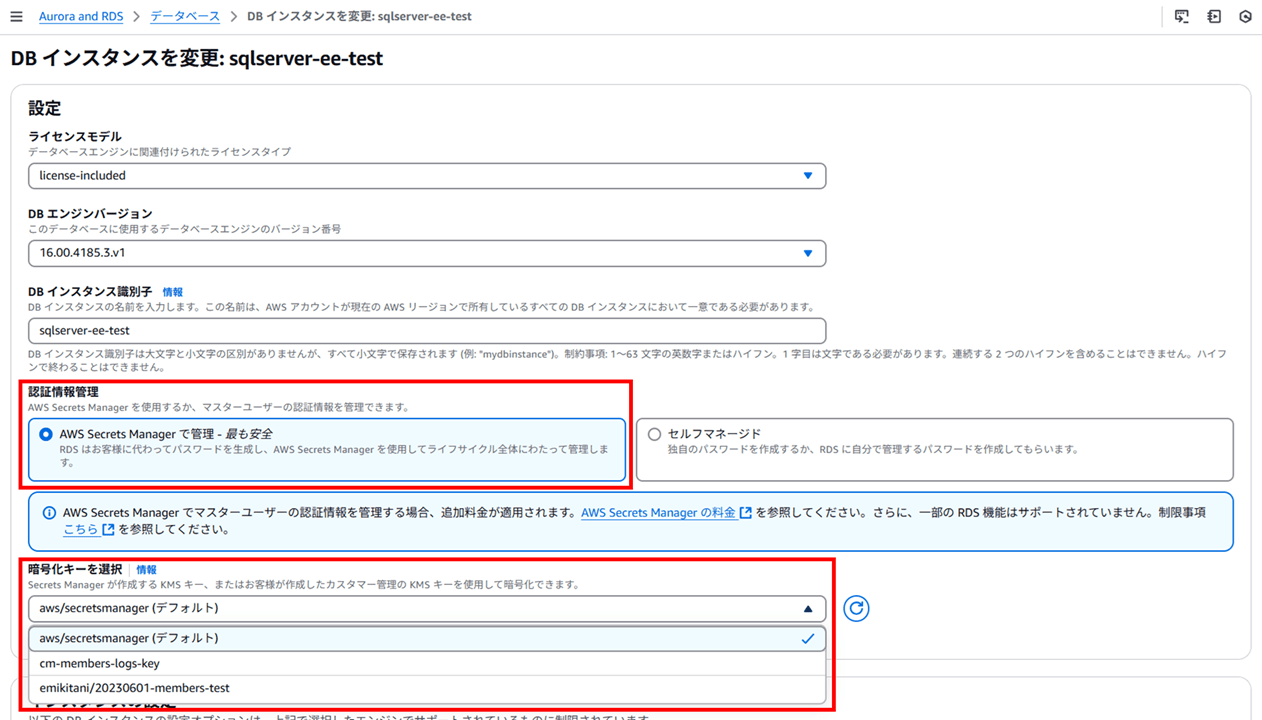

「認証情報管理」 で 「AWS Secrets Manager で管理」 を選択し、暗号化キーを指定します。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_22

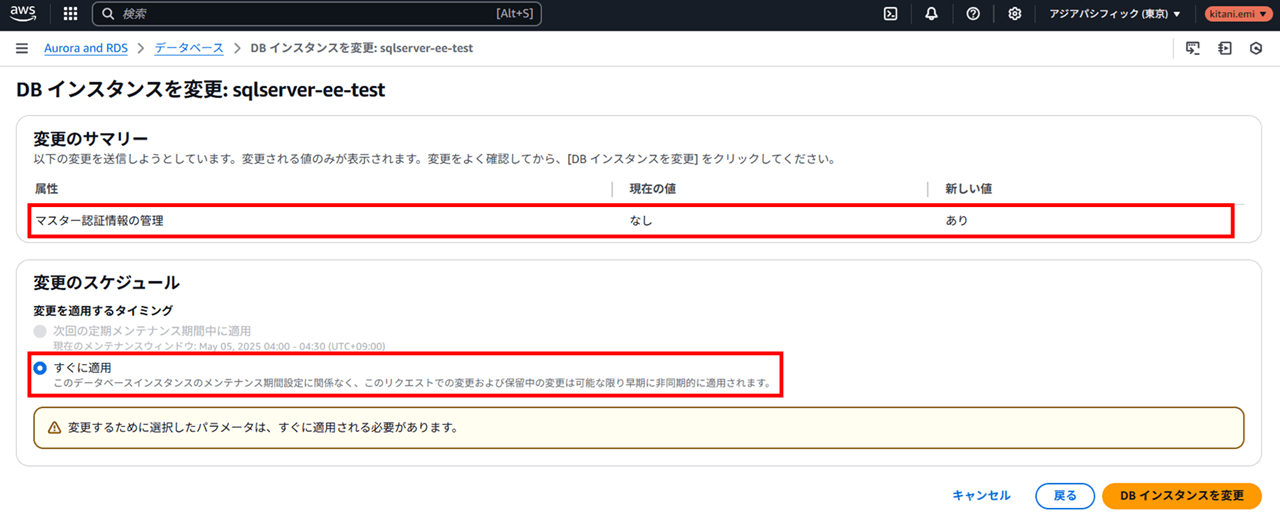

認証情報管理の項目を変更すると、「すぐに変更」 になります。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_23

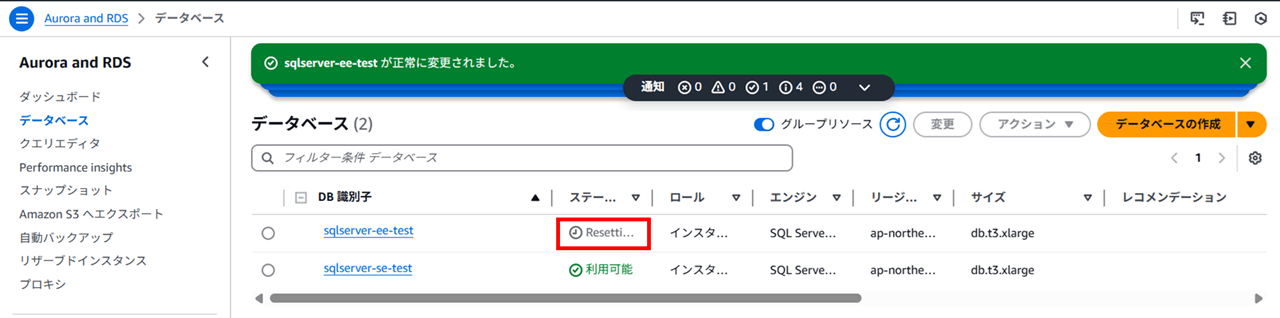

変更中は Ressetting と表示されます。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_24

少し待つと、利用可能になりました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_25

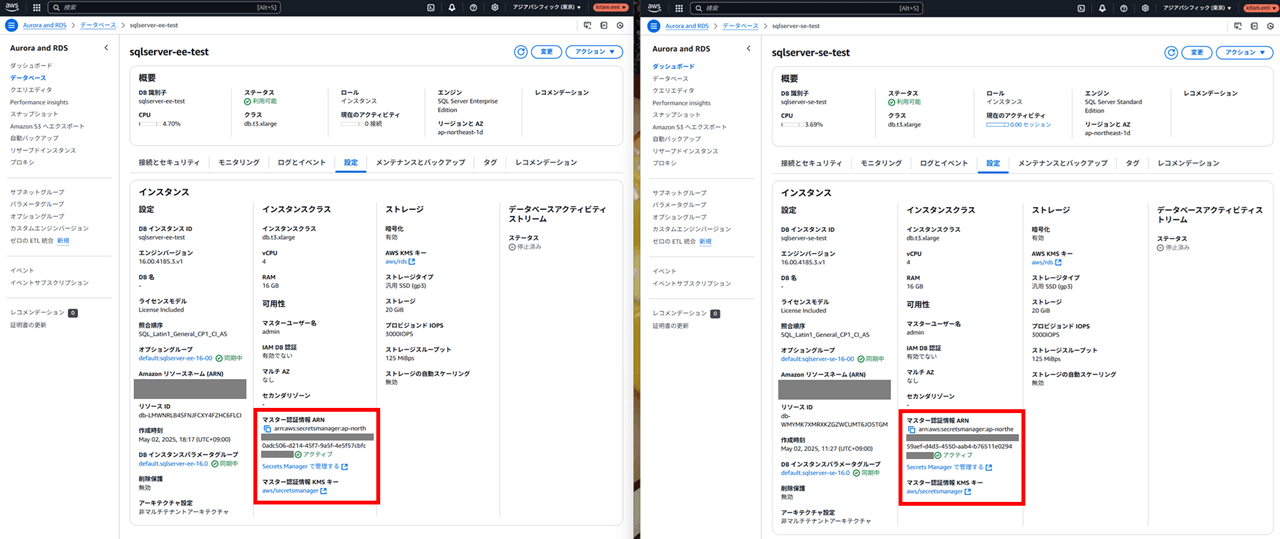

再度設定タブを Enterprise Edition と Standard Edition で比べてみます。両方とも Secrets Manager 管理の状態になりました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_26

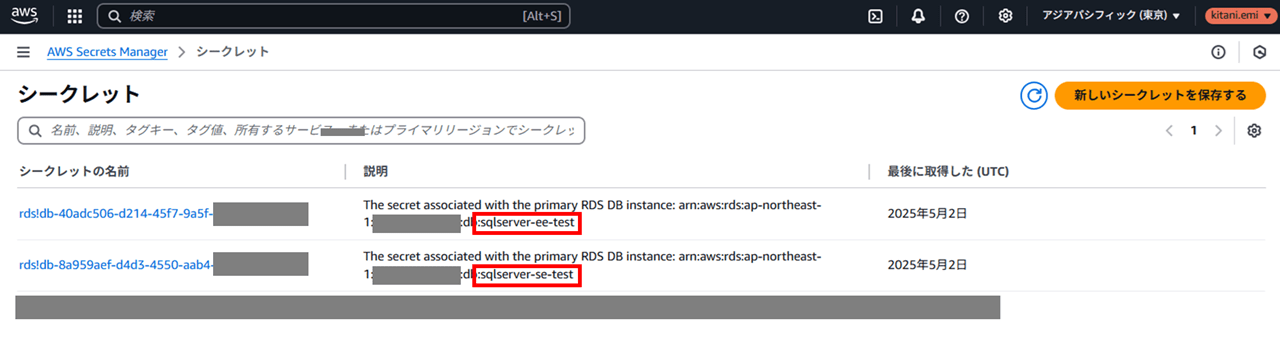

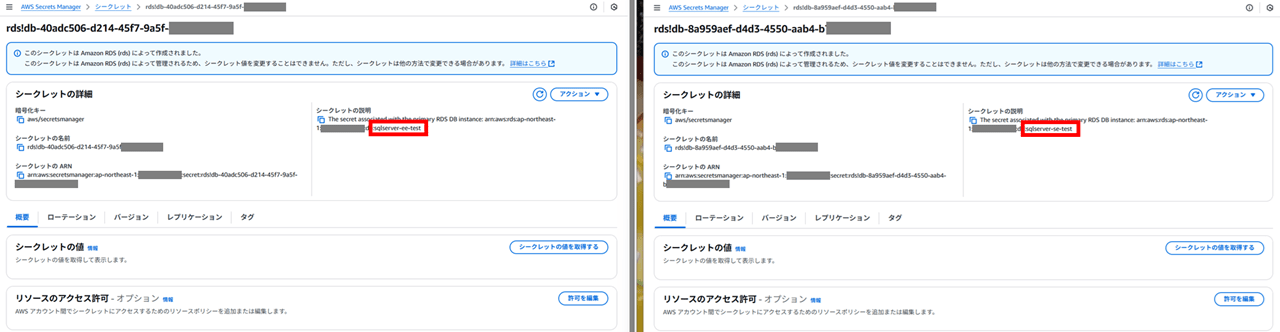

Enterprise Edition のシークレットと Standard Edition のシークレットは別のものです。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_27

changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_28

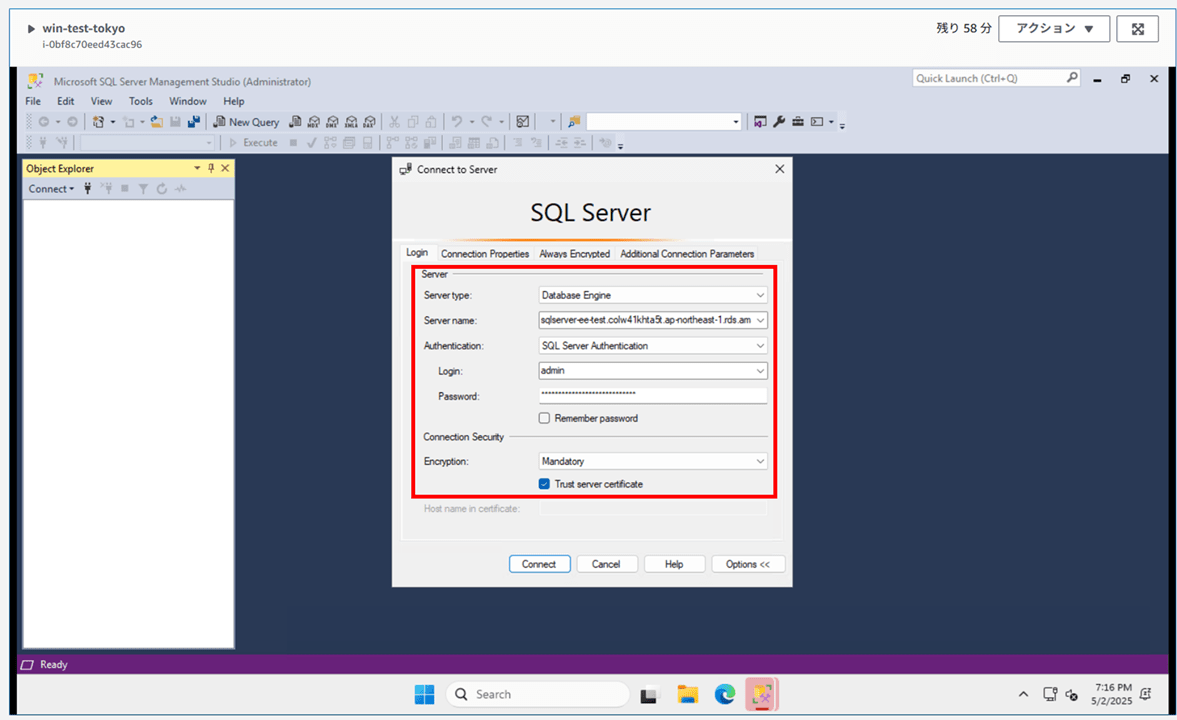

では、再度 Windows Server 2022 にリモートデスクトップ接続し、SSMS で SQL Server にログインしてみます。Enterprise Edition のインスタンスエンドポイントに対し、新しく設定した Secrets Manager のシークレット情報を入力すると、
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_29

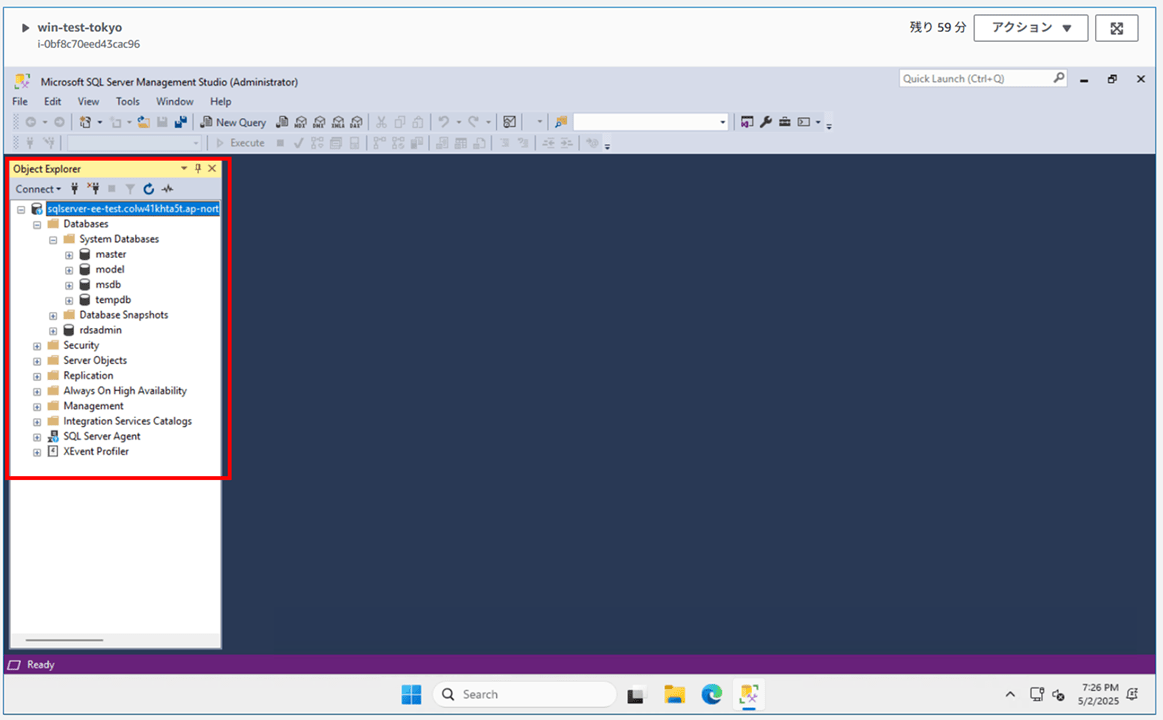

接続できました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_30

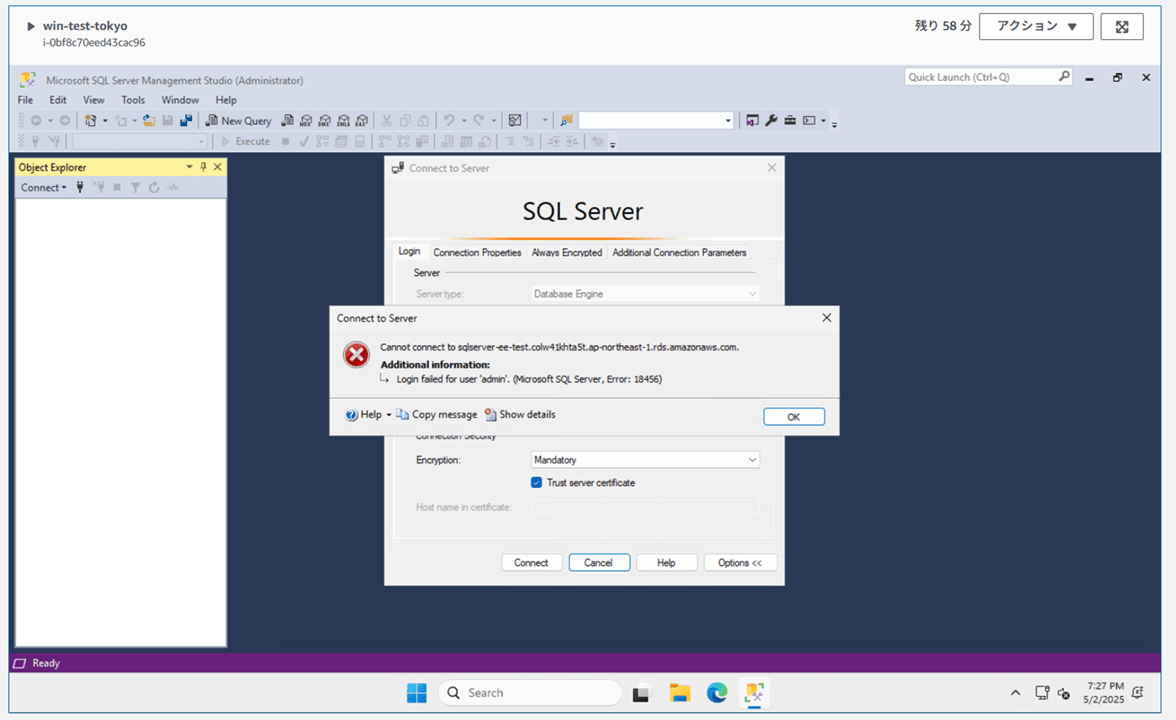

古い方のシークレット(Standard Edition)では接続できなくなっていることも確認できました。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_31

(余談)RDS for SQL Server Enterprise Edition ではリードレプリカが作成できる

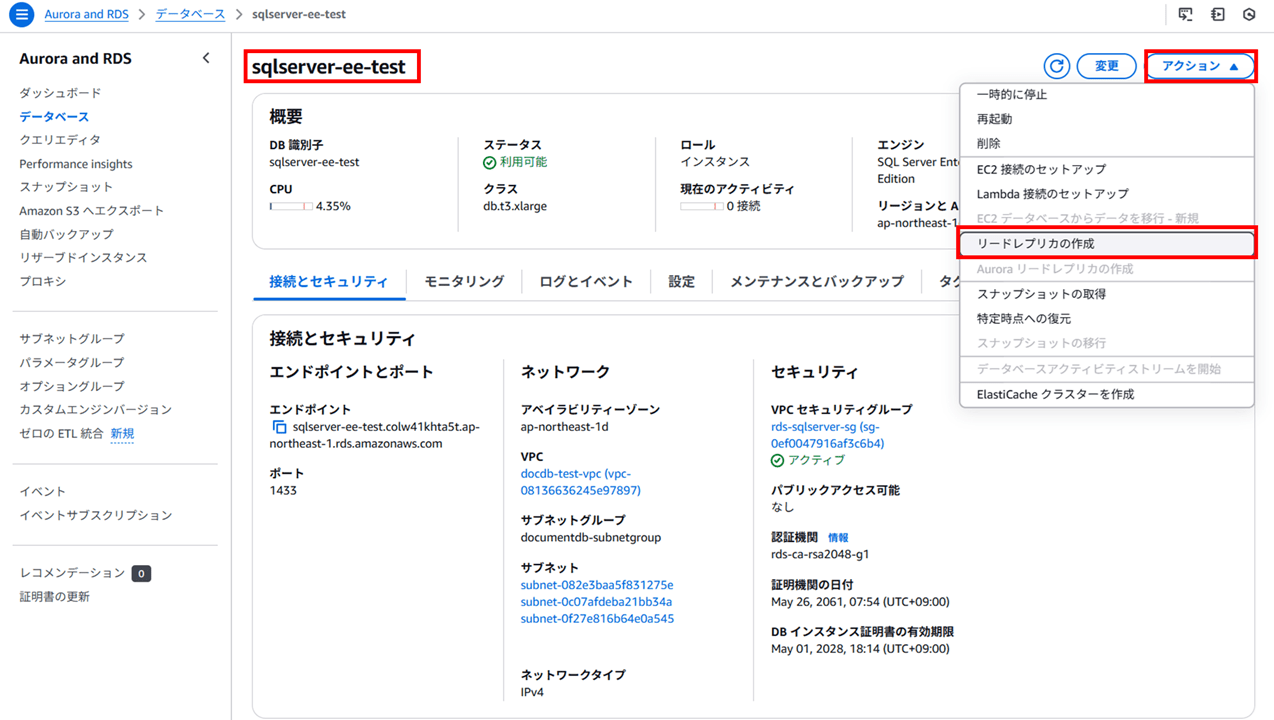

RDS for SQL Server Enterprise Edition はリードレプリカをサポートしています。以下のように、リードレプリカの作成メニューが表示されます。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_19

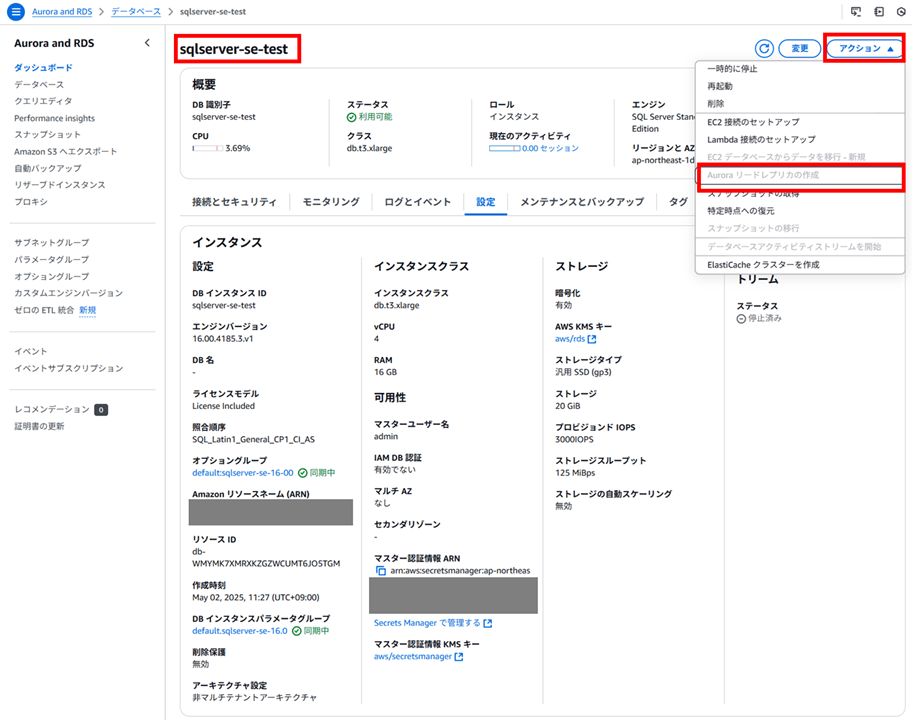

RDS for SQL Server Standard Edition ではリードレプリカが作成できません。メニューにも表示されません。
changing-from-rds-for-sql-server-standard-edition-to-enterprise-edition_20
